100A Amp 1600V Volt Single Phase Diode Bridge Rectifier Metal in Pakistan

Condition: New
Availability: In Stock
Share:     Faceook Twitter

SKU: 637721596173763080

Rs.1050 Rs. 1313

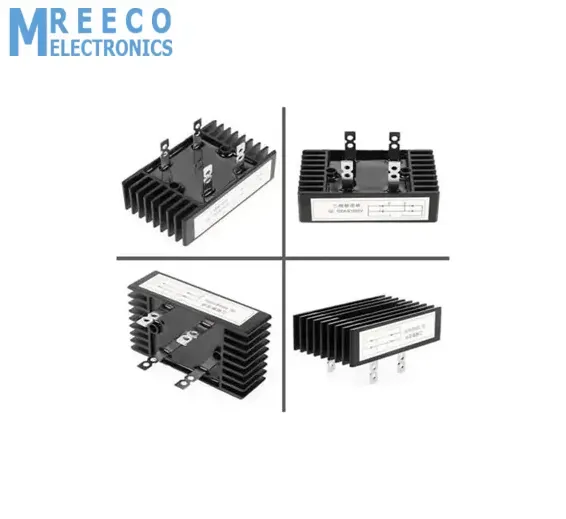

100A Amp 1600V Volt Single Phase Diode Bridge Rectifier Metal:

Features:

  • High-quality bridge rectifiers used for conversion of an alternating current input into a direct current output.
  • Well welded structure with good temperature and power cycle ability ensures a more stable performance.
  • Designed for single phase rectification, output DC current is 150A.
  • It has a large over-current capacity, good heat dissipation and low voltage drop.
  • This high power bridge rectifier can be widely used for power supply.

Specifications: Output Current: 150A Repetitive Peak Reverse Voltage(VRRM): 1600V Repetitive Peak Inverse Current(IRRM): 10mA Isolation Voltage(Viso): 2500VAC VTM: 1.5V ITM: 150A Phase: Single Phase Terminals: 4 Max. Junction Temperature: 150℃ Size: 78 x 40 x 35mm / 3.07 x 1.57 x 1.37″ Quantity: 1 Package Includes: 1 x Bridge Rectifier
