2 Pin 2.54mm JST XH Style PCB Mount Male Connector

Condition: New
Availability: In Stock
Share:     Faceook Twitter

SKU: 637721582721928068

Rs.5 Rs. 6

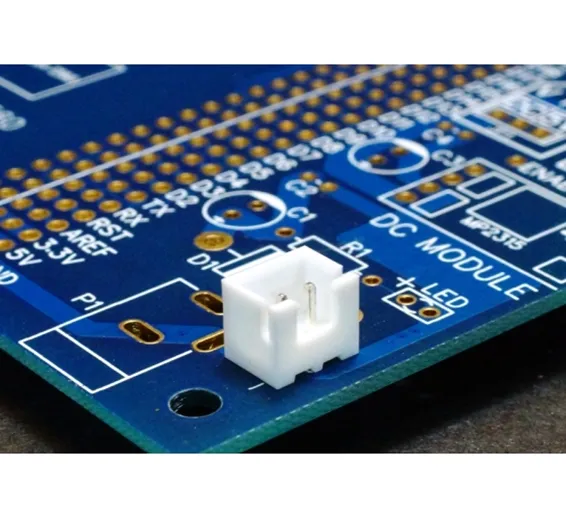

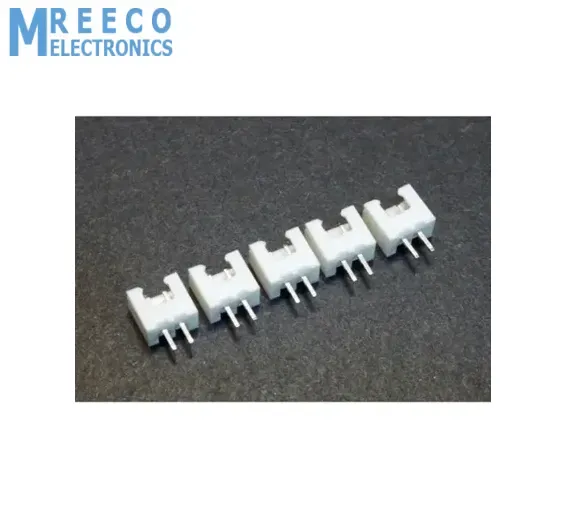

These shrouded, 2-pin JST XH-style male connectors have straight leads and match the female connector on the 2-pin female XH-style cable, and they also work with other many other 0.1″-pitch female connectors, such as our female premium jumper wires. They are sold in packs of four units.

The B2B-XH-A(LF)(SN) is a part of XH series with a mounting height of 9.8 mm and it is applicable to PC Board thickness of 1.6 mm. It has an Operating Temperature range of -25° C to +85° C.

Features:

  • Original folded beam contact
  • Box-shaped shrouded header
  • Header with a boss
  • Interchangeability
  • Conforming to the HA terminal
  • Current Rating: 3A AC, DC(AWG #22)
  • Voltage Rating: 250V AC, DC
  • Contact Resistance: Initial value/10mΩ max.
  • Insulation Resistance: 1000 MΩ min
  • Withstanding voltage: 1000V AC/minute
  • Applicable wire: AWG #30 to #22
