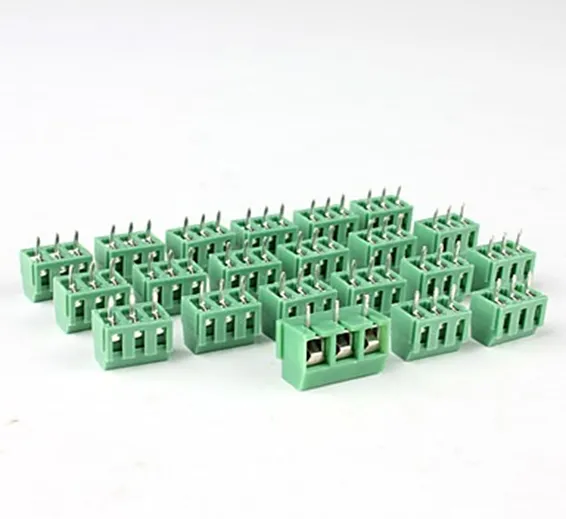

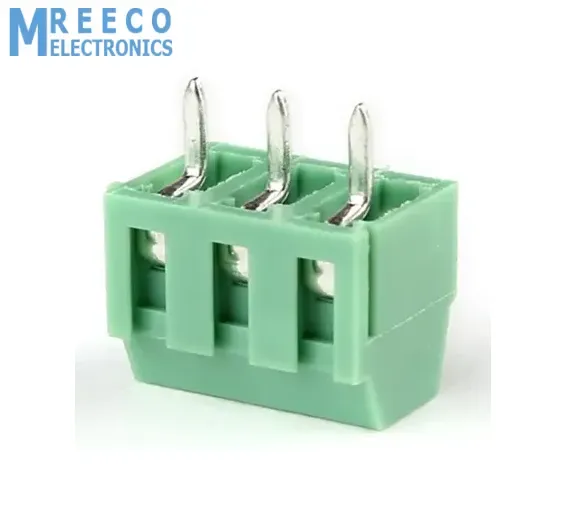

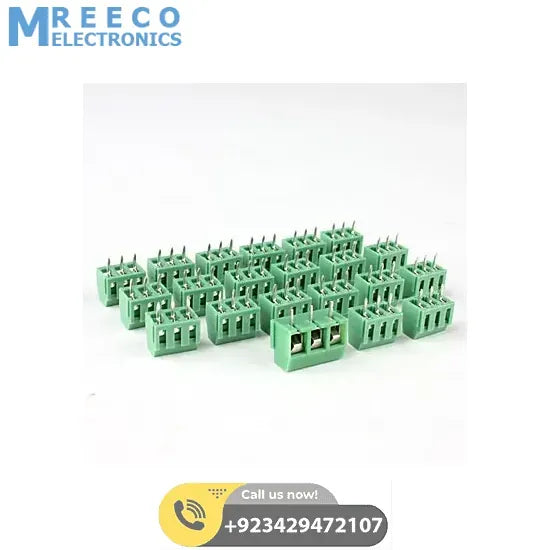

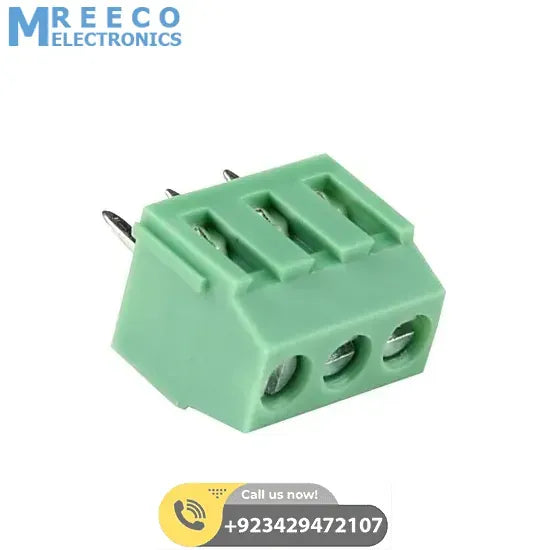

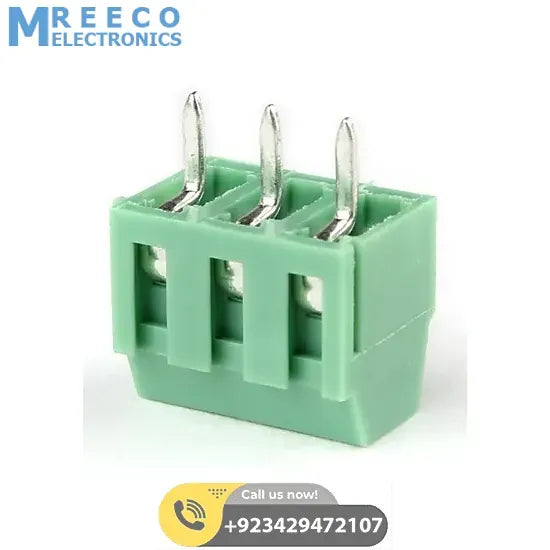

3 Pin Connector Tblock 3 Pin

Condition: New
Availability: In Stock
Share:     Faceook Twitter

SKU: 637719008111228322

Rs.30 Rs. 38

This / 3 Pin Wire to Board connector are used widely for connecting Wires to Boards, It can be for Power Supply or connecting any other peripheral like Motor to the Board. The distance between two mounting pins is in multiple of standard 2.54mm so that this connector can be mounted easily on general purpose PCBs. This connector can be used safely for a current of up to 5A.

Features And Specifications:

  1. Pitch : 5.08/5mm
  2. Pin Diameter : 1mm
  3. Color : Green
  4. No of Pins : 3
  5. Current Rating : 5A
  6. Material : PA66 plastic + steel + copper
  7. Rated voltage : 300V
  8. Rated current : 5A
  9. Withstanding voltage : AC 2000V/1Min
  10. Wire range : 18-12AWG
  11. Torque : 0.5Nm
  12. Strip length : 6~7mm
  13. Temperature : -40~105ºC
  14. Transient temperature : 250ºC 5sec
  15. Dimensions : 0.67 in x 0.43 in x 0.31 in (1.7 cm x 1.1 cm x 0.8 cm
