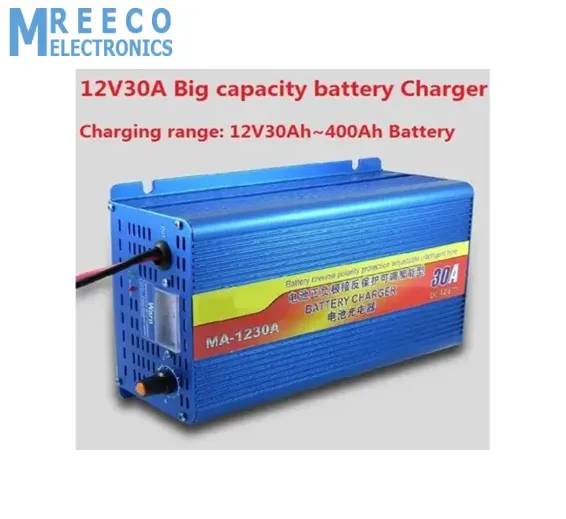

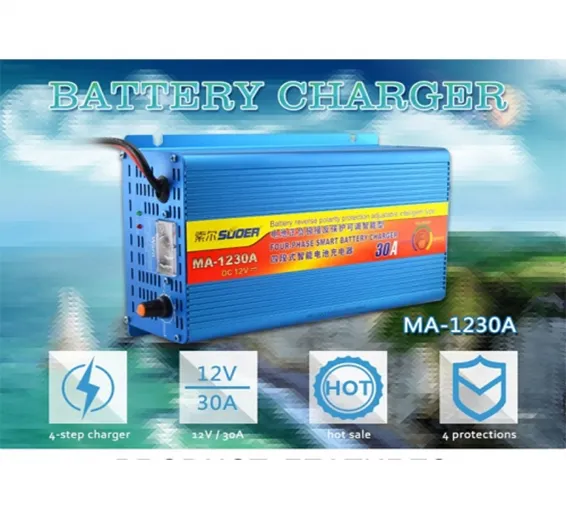

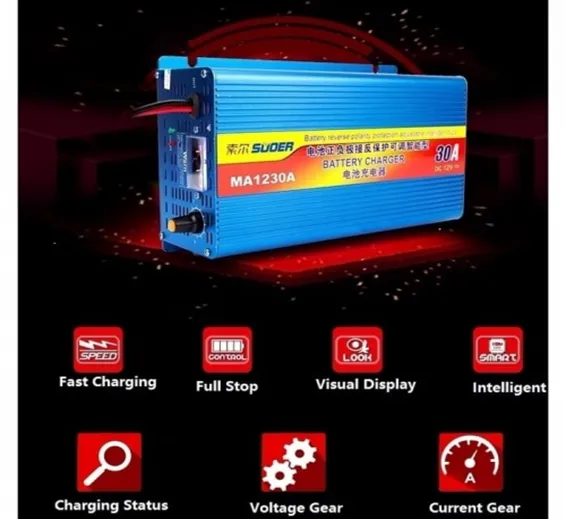

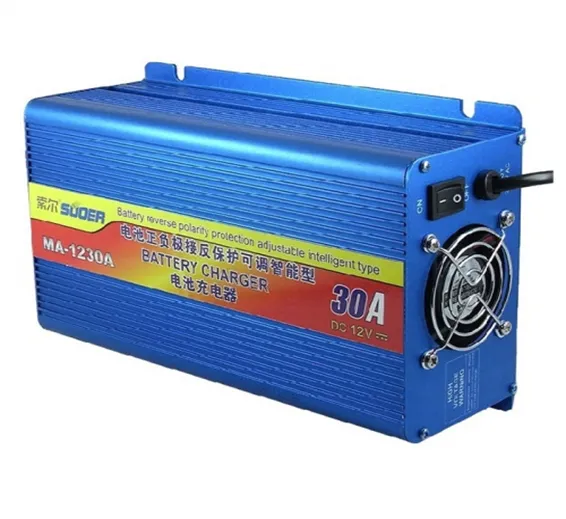

30A 12V Lead-Acid Battery Charger

Condition: New
Availability: In Stock
Share:     Faceook Twitter

SKU: 637736331846700446

Rs.5000 Rs. 6250

The 30A 12V lead-acid battery charger MA1230 is professional design according to the power battery of electric vehicles equipment. This MA-1230A 12 volts battery uses the advanced soft switch technology, with small size, high conversion efficiency, running full loading for a long time, stable output current, high reliability, long service life, easy operation, etc. This 30A portable car battery charger is with short-circuited protection, low-voltage protection, over-heated protection. 12 volts 30 amp battery, the long delays digital counter can ensure the battery from the constant voltage to the float charge reliably every time.

Features Of MA-1230 Best Intelligent Battery Charger 30A 12V Battery Charger:

  • High performance and good stableness.
  • Suitable for inverter battery for charging.
  • Direct Cigarette lighter connection.
  • Smart and easy to carry.
  • Universal socket, suitable for all kinds of plugs.

Specifications Of Multi-protection 30A 12volts Universal Power Battery Charger MA1230:

  1. Input Voltage: 220V-240V
  2. Output Voltage: 12V
  3. Charger Current: 30A
  4. Dimensions: 225*145*80mm
  5. Net Weight: 1.6KG
  6. Certification: ISO,CTA,CE
  7. Rated Frequency: 47-63HZ

Technical Parameters:

  1. Pre-charge mode: In order to protect the battery and extend its life, the battery's internal resistance is too large or voltage is too low because the discharged time is too long or it is not used for a long time, the charger will supply low output current for the battery automatically. When the voltage of the battery rises to the given voltage value, the charge mode will turn to constant current charge mode automatically.
  2. Constant current mode: The charger supply constant charge current for the battery.
  3. Constant voltage mode: Using the pulse width modulation(PWM) tech to control the charging current and output voltage of the charger which ensure the battery is fully charged and avoids overcharging.
  4. Floating charge mode: When the voltage of the battery is approaching the value of the constant voltage mode, and the current cut down to the given current gradually, that means the battery power is full, then the pilot lamp will turn green and the fan will stop working. The charger will turn the mode into a floating charge mode automatically. At this moment, the battery can be stopped charging or keep on floating charge for half an hour.

Package Includes:

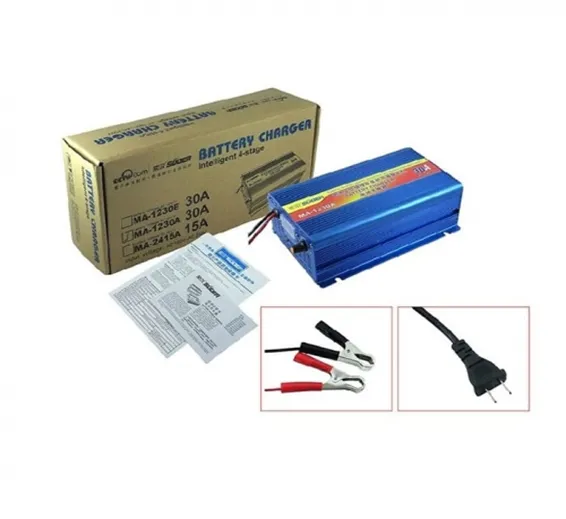

  • 1 x 30A 12V Lead-Acid Battery Charger MA-1230
