30A range Current Sensor Module ACS712 in Pakistan

Condition: New
Availability: In Stock
Share:     Faceook Twitter

SKU: 637718982468941250

Rs.320 Rs. 400

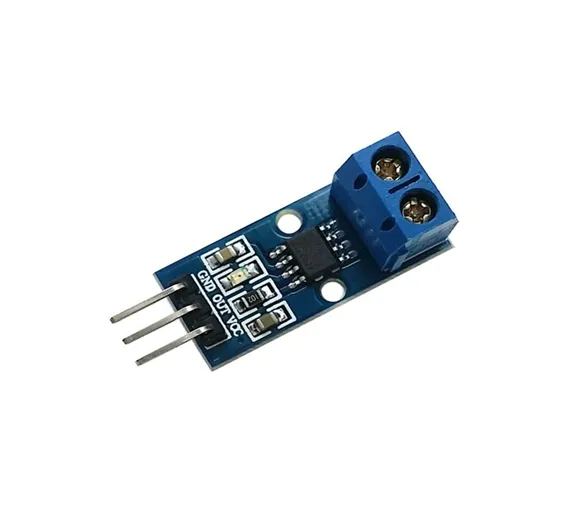

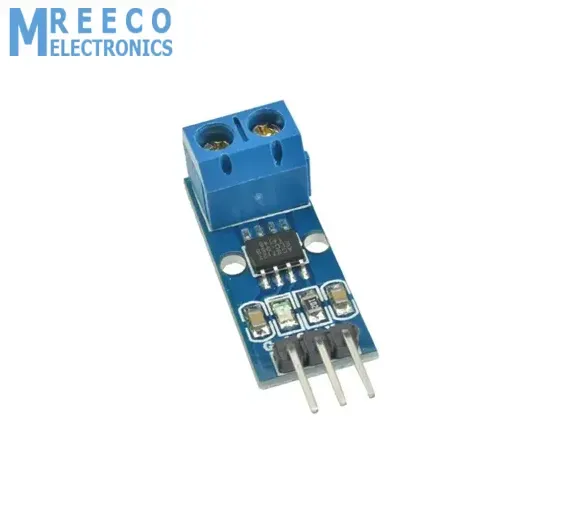

The ACS712 30A Range Current Sensor Module / Hall Sensor device consists of a precise, low-offset, linear Hall circuit with a copper conduction path located near the surface of the die. Applied current flowing through this copper conduction path generates a magnetic field which the Hall IC converts into a proportional voltage.

Sensing and controlling current flow is a fundamental requirement in a wide variety of applications including, over-current protection circuits, battery chargers, switching mode power supplies, digital watt meters, programmable current sources, etc. This ACS721 current module is based on ACS712 sensor, which can accurately detect AC or DC current. The maximum AC or DC that can be detected can reach 30A, and the present current signal can be read via analog I / O port of Arduino. There is also the 5A and 20A version for your choice are available on our portal.

Note: ACS712 is based on the principle of the Hall test, please use this field to avoid an impact!

Connection Diagrame:

Package Includes :

1 x ACS712 30A Range Current Sensor Module / Hall Sensor.

Specifications and Features :

  1. Module Dimensions: 31 x 13 x 14 mm (LxWxH)
  2. Weight: 3 gm.
  3. Supply Voltage: 4.5V~5.5V DC
  4. Measure Current Range: -30A~ 30A
  5. Sensitivity: 66mV/A
  6. The current sensor chips: ACS712ELC-30B.
  7. Pin 5V power supply, onboard power indicator.
  8. The module can be measured plus or minus 30 amps, corresponding to the analog output of 185 mV / A.
  9. There is no the detection current through, the output voltage is VCC / 2.

Attachments and Links:

ACS712 Datasheet:

ACS712 Arduino Programme:

  • Useful Introduction_1 from Embedded-lab.
