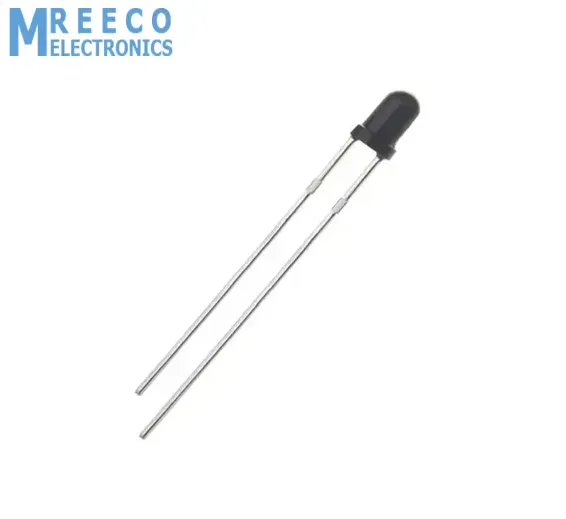

3mm Photodiode IR Infrared Receiver

Condition: New
Availability: In Stock
Share:     Faceook Twitter

SKU: 637721590792788762

Rs.8 Rs. 10

3mm IR receiver is a very simple and compact infrared receiver or detector. This infrared receiver has a peak wavelength of 940nm and works well for generic IR systems including remote control and touch-less object sensing. Pair them with LED 3mm IR transmitter or emitter. This IR receiver diode has 1.5VDC forward voltage and 40mA max forward current.

Features Of 3 mm Light-Emitting Diode Lamp IR Receiver:

  • High reliability.
  • High radiant intensity.
  • 3mm through-hole packages.
  • 2.54mm Lead spacing.
  • Low forward voltage.

Specifications Of 3MM IR Receiver Infrared Reader :

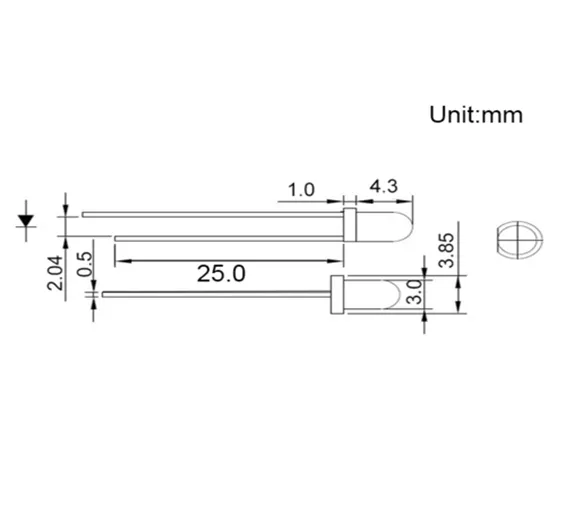

  1. Diameter: 3mm
  2. Peak Wavelength: 940nm
  3. Forward voltage: 1.5VDC
  4. Max forward current: 40mA
  5. Current DC Forward (If) (Max): 100mA
  6. Mounting Type: Through Hole
  7. Operating Temperature: -40°C ~ 85°C (TA)
  8. Orientation: Top View

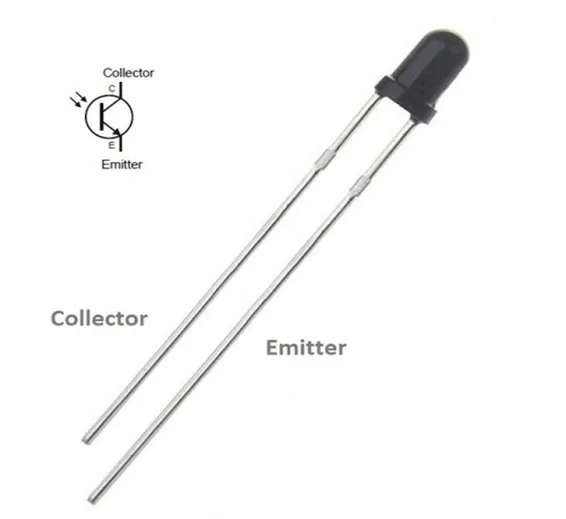

  9. Emitter: Long pin
  10. Collector: Short pin

Package Includes:

  • 1 x IR Infrared Receiver 3mm

Best Online Shopping website for 3mm Photodiode IR Infrared Receiver Arduino Raspberry Pi Diode Infrared Reader in cheap price in Karachi, Lahore, Islamabad, Rawalpindi, Peshawar, Multan, Quetta, Faisalabad and all over Pakistan.
