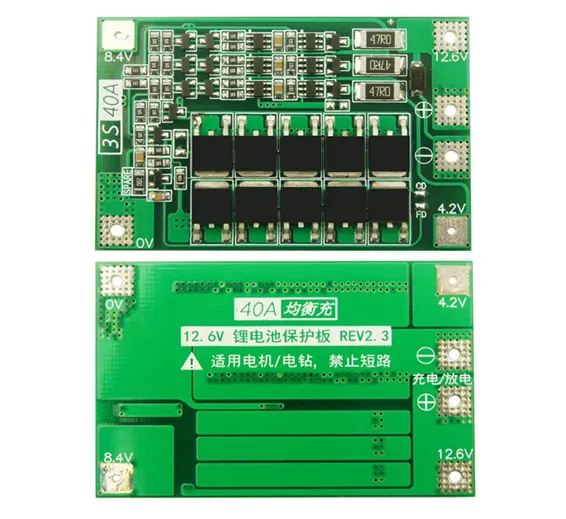

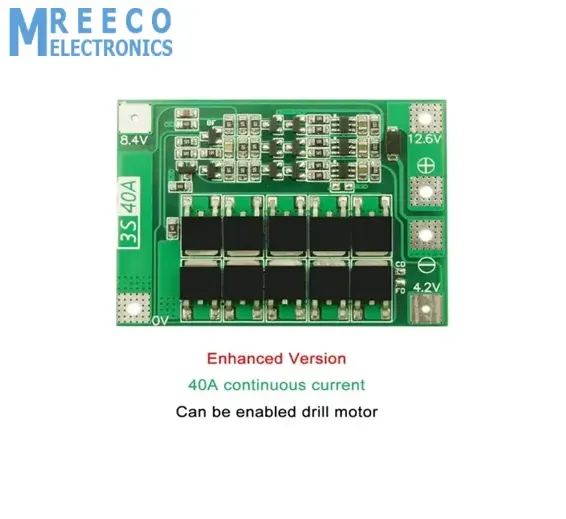

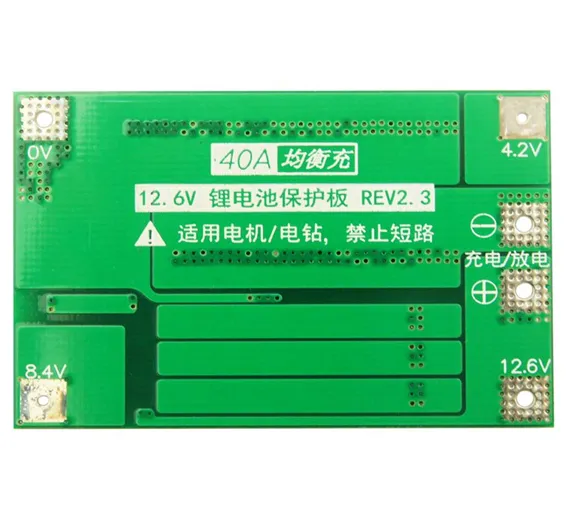

3S 40A BMS 11.1V 12.6V 18650 Lithium Battery Protection Board with 100mA Balancing Feature
SKU: 637725048500216572
This Battery BMS 3S 12V 25A Charger 18650 BMS Lithium battery protection board.It is use to protect the battery to prevent the battery from being over-discharged or over-charged during use, resulting in battery damage.
QUICK SPECS:- Model: 3SJH25A-C
- Voltage: 11.1V 12V 12.6V
- Current: 40A (operating current)
- Over-current: 75A (overcurrent peak)
- Working temperature: -30 / + 80
- Size: 56*45*4.0mm
APPLICATIONS:
- Small power inverter
- Massager battery pack
- LED lamp backup power
- Electronic products
- Solar street lamp battery pack
- Monitoring standby power supply
A Battery Management System, or BMS for short, is used to protect your battery during charging and discharging. During charging, the BMS will monitor the voltage of all of your cells and balance the cell groups to ensure they are charged equally.
During discharging, the BMS will monitor the voltage of all of the cells, as well as the entire pack voltage and the discharge current. If the BMS determines that any of its preset limits have been passed, such as the battery draining too low or an unsafe amount of current being pulled from the battery, the BMS will cut power to the battery to protect it from damage.
This 3s BMS is fairly easy to install, but will require that you are decent with a soldering iron to add the charge/discharge/balance wires. You should use fairly heavy gauge wires for the charge/discharge wires, while very small wires can be used for the balance wires as they carry much less current.

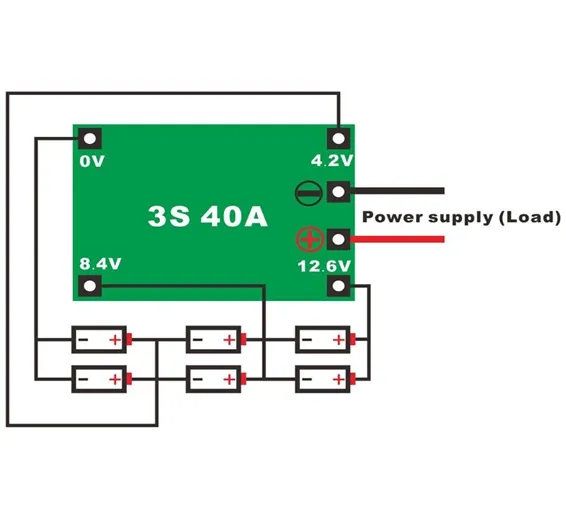

The wiring diagram for this BMS is shown below, and you can read an article showing you how to install a BMS on your VRUZEND kit here. Please make sure you read the instructions in that article so you can install your BMS properly. Note: Be sure to use sufficiently thick wires for B+, B-, P+ and P- to carry the current that your device requires.
Note: this BMS is designed for lithium-ion cells, and will not work for LiFePO4 cells.
A Battery Management System, or BMS for short, is used to protect your battery during charging and discharging. During charging, the BMS will monitor the voltage of all of your cells and balance the cell groups to ensure they are charged equally.
During discharging, the BMS will monitor the voltage of all of the cells, as well as the entire pack voltage and the discharge current. If the BMS determines that any of its preset limits have been passed, such as the battery draining too low or an unsafe amount of current being pulled from the battery, the BMS will cut power to the battery to protect it from damage.
This 3s BMS is fairly easy to install, but will require that you are decent with a soldering iron to add the charge/discharge/balance wires (and you can get the wires here or the connectors here). You should use fairly heavy gauge wires for the charge/discharge wires, while very small wires can be used for the balance wires as they carry much less current.The wiring diagram for this BMS is shown below, and you can read an article showing you how to install a BMS on your VRUZEND kit here. Please make sure you read the instructions in that article so you can install your BMS properly. Note: Be sure to use sufficiently thick wires for B+, B-, P+ and P- to carry the current that your device requires.
=====================================================
