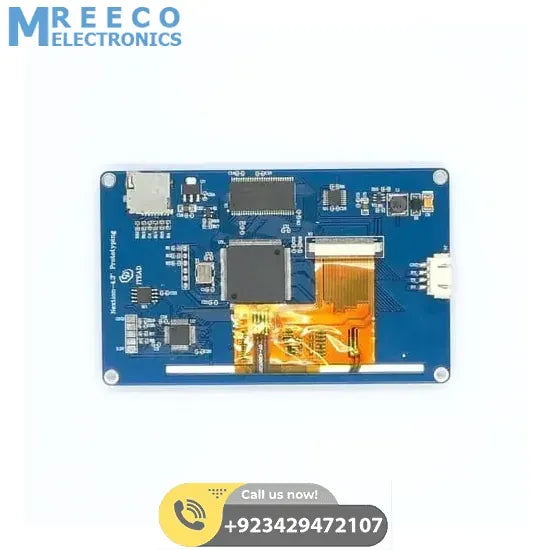

4.3 inch Nextion TFT HMI LCD Touchscreen NX4827T043

Condition: New
Availability: Out Of Stock
Share:     Faceook Twitter

SKU: 637720633938991986

Rs.22000 Rs. 27500

4.3 inch Nextion TFT HMI LCD Touchscreen NX4827T043 is a Seamless Human Machine Interface (HMI) solution. 4.3 inch Nextion TFT HMI LCD Touchscreen NX4827T043 that provides a control and visualization interface between a human and a process, machine, application or appliance. Nextion is mainly applied to the Internet of thing (IoT) or the consumer electronics field. It is the best solution to replace the traditional LCD and LED Nixie tube. Nextion includes a hardware part (a series of TFT boards) and a software part (the Nextion editor). The Nextion TFT board uses only one serial port to communicate. It lets users avoid the hassle of wiring. We noticed that most engineers spend much time in application development but get unsatisfactory results. As a solution to this situation, Nextion editor has mass components such as button, text, progress bar, slider, instrument panel etc. to enrich the interface design. Furthermore, the drag-and-drop function ensures that users spend less time in programming, which will reduce 99% of their development workloads. With the help of this WYSIWYG editor, designing a GUI is a piece of cake. It's easy to adapt Nextion family HMI to existing projects. Users just need to provide it with a UART.

We are also selling Nextion touchscreen in different sizes like 2.4", 3.2", 3.5", 5" etc.

Features of 4.3 inch Nextion TFT HMI LCD Touchscreen NX4827T043:

  • Compatible with Raspberry Pi A+, B+ and Raspberry Pi 2.
  • 480 x 272 Resolution
  • RGB 65K true to life colours
  • TFT Screen with integrated 4-wire Resistive Touch Panel
  • Easy 4 pin interface to any TTL Serial Host
  • 16M Flash memory for User Application Code and Data
  • On board micro-SD card for firmware upgrade
  • Visual Area:95.04mm(L)×53.86mm(W)
  • Adjustable Brightness:0~230 nit, the interval of adjustment is 1%
  • 5V250mA power consumption
  • CE/EMC, RoHS certified (certificates)

Specifications of 4.3 inch Nextion TFT HMI LCD Touchscreen NX4827T043:

  • Input voltage: 4.75 to 7V DC (5V DC recommended)
  • Input current: 250mA (max brightness), 15 mA (sleep mode). Recommended power: 5V 500mA
  • Screen size: 4.3 inch
  • Screen resolution: 480x272 pixels
  • Screen brightness: 230 cd/m^2
  • Flash memory: 16MB
  • RAM memory: 3584 Byte
  • SD card slot, FAT32. Suitable for up to 32 GB SD card

Documents:

Please visit our wiki page for more information about this product. Any suggestions for improvement, such as correcting errors, adding more demo codes or tutorials, will be highly appreciated.

Technical Support:

For technical support, please open a ticket on Itead Support System.

Package Includes:

  • 1× 4.3″ Nextion Enhanced HMI Display
  • 1× power supply test board
  • 1× 4-pin grove cable
