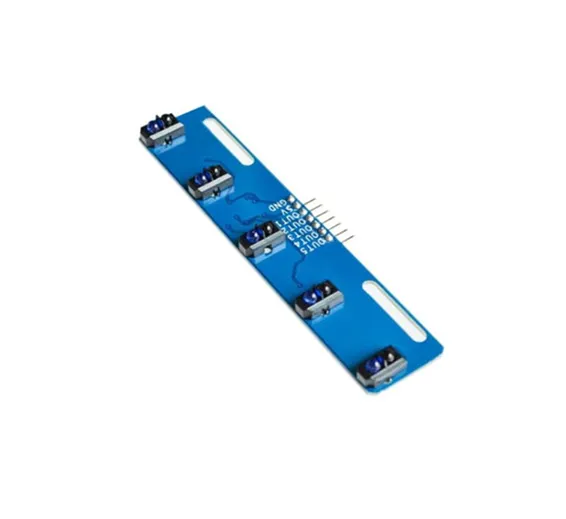

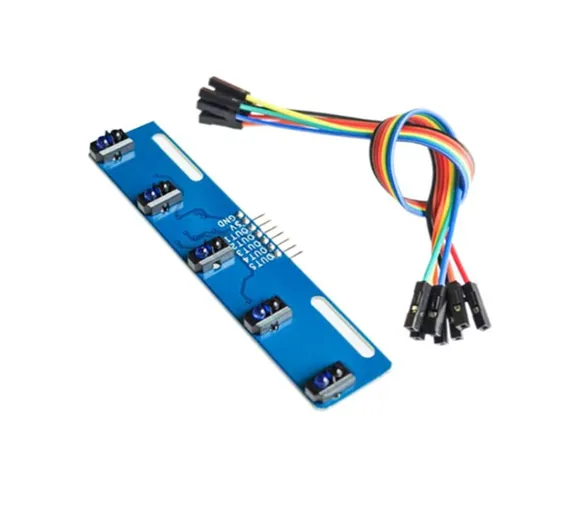

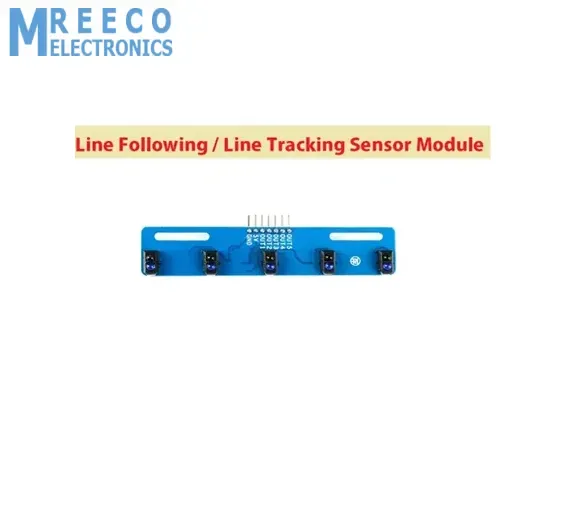

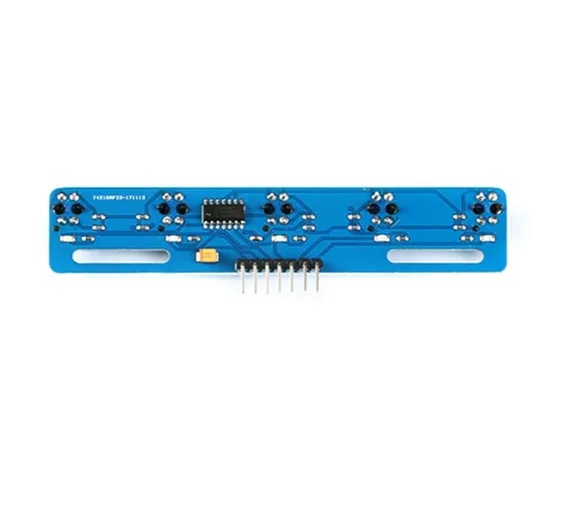

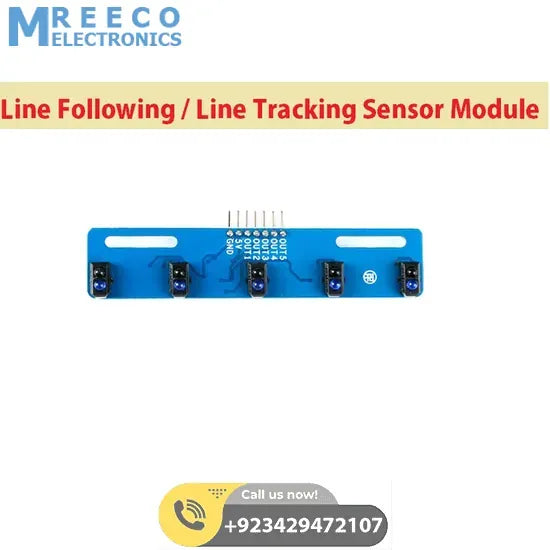

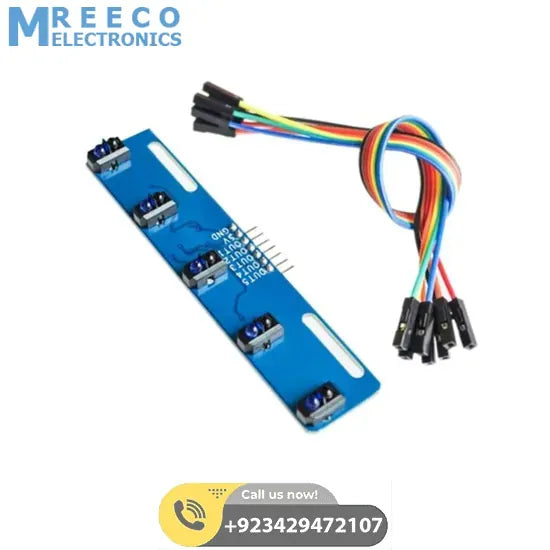

5 Channel TCRT5000 IR Array Tracking Sensor Module

Condition: New
Availability: In Stock
Share:     Faceook Twitter

SKU: 637720681845317069

Rs.400 Rs. 500

5 Channel TCRT5000 IR Array Tracking Sensor Module is a sensor board designed for use with line follower robots. This IR sensor module has been sufficient to meet the frequent task of tracking, but also with the infrared distance sensor and touch detection sensor. This TCR T5000 array unique makes your robot design able to adapt to the situation easily. It is specifically designed as a black line especially suitable for the complex of the black and white line, cross black and white line detection. This high-quality sensor module has 6 roads high sensitivity infrared sensor (5 escapes patrol, 1 road), to the recognition of black and white line accurately.

Features Of 5 Channel IR Sensor Circuit Module:

  • 5-channel tracing module analogue output, analogue output and distance, object colour-related.
  • The stronger the infrared reflection (white), the larger the output, the weaker the infrared radiation (black), and the smaller the output.
  • The closer the detector is to the black line, the smaller the output, so that the distance of the black line can be judged by the output analogue. The smaller the value, the closer the sensor is to the black line.
  • Compared with other track sensors that can only output high and low levels, the 5-channel analogue output of this product can feedback the distance of the black line, and the feedback is more accurate.

Specifications Of TCRT5000 IR Array Arduino:

  1. Distance Range: 1cm ~ 1.5cm
  2. Length x Width: 96.5mm x 20.3mm
  3. Operating Voltage: 5V
  4. Output: Digital signal
  5. Sensor: TCRT5000L x 5

Package includes:

  • 1 x TCRT5000 IR Array Tracking Sensor Module
