BX-U4L P10 led signs control card, P10 Display module control card,Single&double color advertising led panel Controller

Condition: New
Availability: In Stock
Share:     Faceook Twitter

SKU: 637725035426051156

Rs.500 Rs. 625

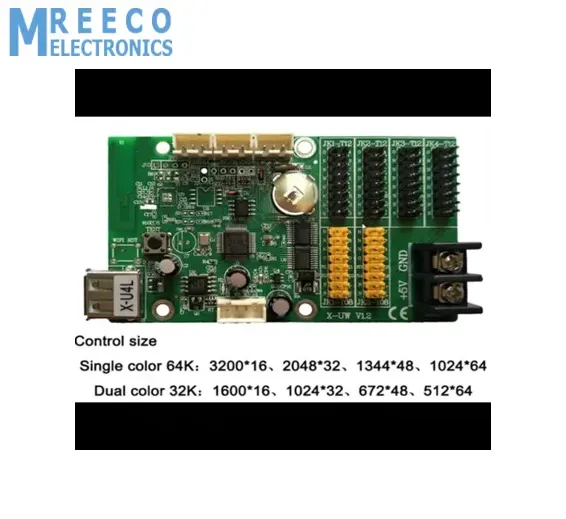

BX-U4L P10 led signs control card, P10 Display module control card, Single&double color advertising led panel Controller:

X-U4L(

USB

) Single&double color P10 LED Display control card:

X-U4L

X-U4L upload program by

USB

, easy and convenient, free wiring. widely used in all kinds of LED lintel screen.

USB

on board,

USB

transmit distance≤12 meters;

Good compatibility, strong recognition capability to all kinds of

USB

driver;

Setup screen parameters/setup scan mode/update program/time correction/adjust the brightness/timing switch

Features: 1.Strong ⑴ Strong software function, easy to use ⑵High brightness, big control size, fast communication speed ⑶ High freshmen, stable and smoothly moving; ⑷ Multi-area linkage precise algorithm ⑸Support update firmware online ⑹ All BX-5 series support temperature/temp&humidity sensor, support IR /button select program.BX-5E support noise sensor ⑺ Support area border, animation text, colorful background, IR control, one frame, text animation, , breakpoint relay, super large control size, full color grayscale, wireless cluster. ⑻ BX-5E series support super length and super height screen size ⑼ BX-5K supply open protocol , special applicate in the industrial field, equipment support, bus display, intelligent station card and cluster display system 2. Stable ⑴ resistant to harsh environments.3.5V-6V wide working voltage ; working temeprature is - 40 ℃ ~ 80 ℃ ⑵ Anti-static design of serial port makes communication more stable ⑶ It supports server mode and Internet transmission and is highly adaptable to complex network environments.L long time no power down stable communication ⑷ Strong reading ability ⑸ WIFI onboard antenna signal is strong, the communication speed is fast Innovation: 1. X series launched into the market at 2018, best performance and good quality ⑴ Match with mperature sensor, temperature and humidity sensor, brightness sensor on board ⑵ X series are made of plastic shell and bracket package, flame retardant, environmental protection, anti-static, high temperature resistant ⑶ X series antenna has strong wifi signal and fast communication speed 2.

LedshowTW

2018 is more powerful ⑴ Support domestic and international weather forecasts ⑵ The all-powerful editor can easily support arbitrary typesetting rules in Mongolian, Hebrew, Arabic, easy to make the vertical font BX-5 series products have the advantages in large LED cluster display system and customized development projects! BX-5 series products with its excellent quality and excellent performance demonstrated the technology "passion innovation perfect definition " product concept!

Technical parameter

Status

Launched into market in Sept 2018

Control size

Single color 16K:1024*16、512*32

Dual color 16K:512*32、256*32

Storage

2MByte

Software

function

Software

function

group sending/multi-program edit/multi-area display/multi-lanuage version;

Program quantity

Support 128 programs

Area quantity

Each program maximum support 8 areas

Area type

Weather/Image&text//subtitle/animation /lunar/ time/dial/timer/sensor areas

Border

Program shine border /Area shine border

Clock

Lunar /Dial/ Chinese and English clock/timer (all support multi-groups)

Module

compatibility

Module

Support all kinds of single/dual color LED modules

Column driving IC

Support 74HC595, SM16188, etc, those mainstream LED driving chip

Row decoding IC

Support 74HC138 and the modules without row coding

Scan mode

Support static、1/2、1/4、1/8、1/16

Interface

Interface

1 nos T8+2 nos T12

Communication

USB

Important functions

Remote

Support select program/lock screen/brightness adjustment/power on & off/screen test

Sensor

Support temperature, temp&humidity ,brightness sensor

Brightness adjust

16 grade brightness, support manual /timing/auto adjust mode

Remote

swith

Support auto timing switch, software/remote switch

Any layout

Support arbitrary typesetting rules in Mongolian, Hebrew, Arabic, etc, easy to make the vertical font

System update and maintenance

Firmware update

Support firmware update online cost efficient

Electronic parameters

Working voltage

5V(3.5V~6V wide working voltage)

Max power

≤2W

Working temperature

-40℃~80℃

Software

PC software

LedshowTW

Software

download link: http://www.onboncloud.com/upload/download/

LedshowTW

2018(V18.9.6.0).rar

http://www.onboncloud.com/download/166.html
