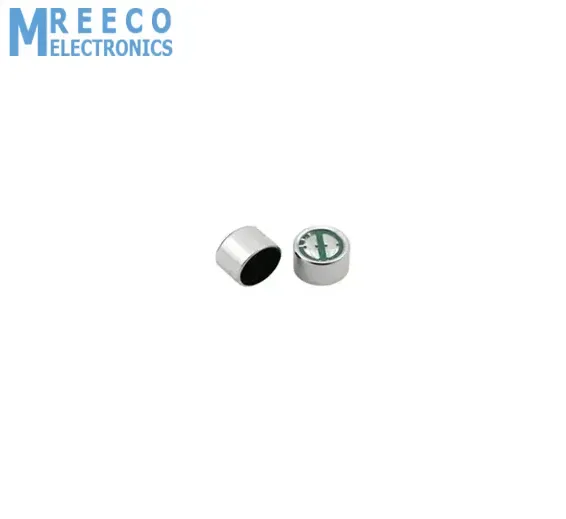

CZN-15E Omnidirectional Electret Condenser Microphone -62+/-2dB

Condition: New
Availability: In Stock
Share:     Faceook Twitter

SKU: 637720628035320006

Rs.25 Rs. 31

CZN-15E Omnidirectional Electret Condenser Microphone -62+/-2dB, also Electric condender microphone. Small electret microphone. Useful in acoustic and audio applications.

Specifications:

  1. Sensitivity: -62±2dB (0dB=1V/pa,1KHz)
  2. Impedance: Low impedance
  3. Directivity: Omnidirectional
  4. Frequency: 20-16,000Hz
  5. Voltage range: 1.5V-10V
  6. Standard operation voltage:4.5V
  7. Current consumption: Max.0.5mA
  8. Sensitivity reduction: Within -3dB at 3V
  9. S/N ratio: More than 60dB
