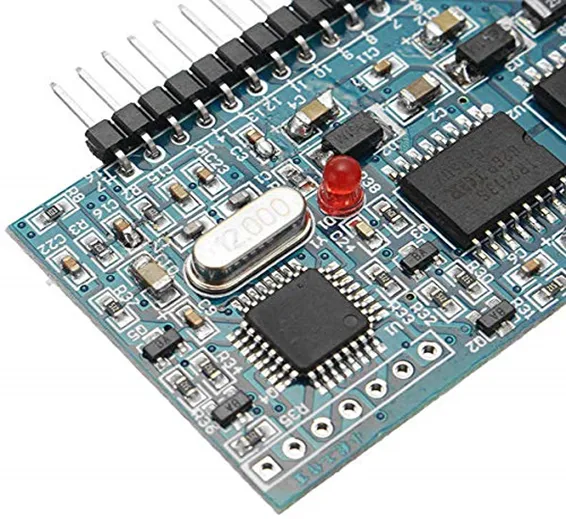

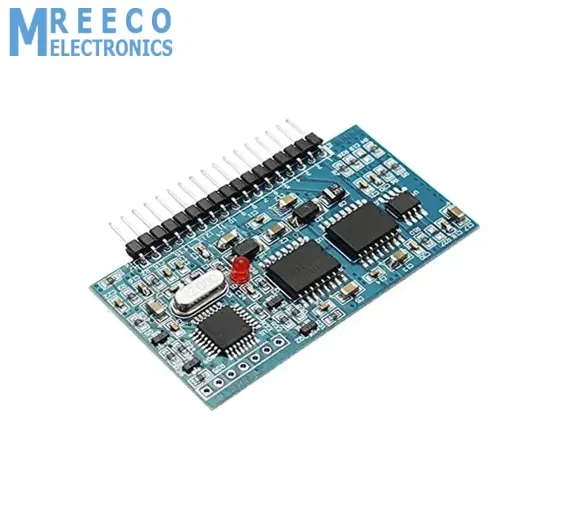

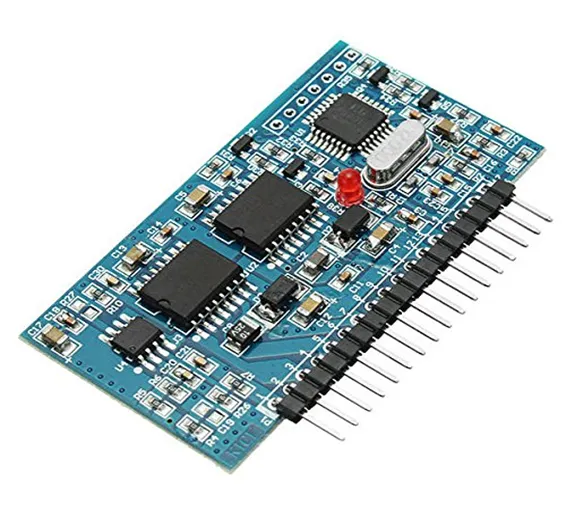

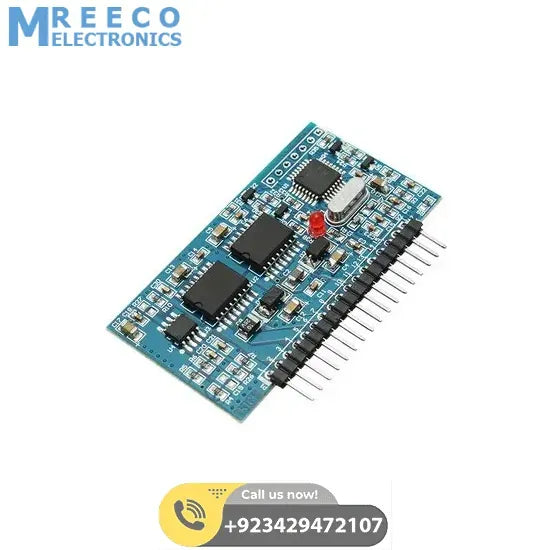

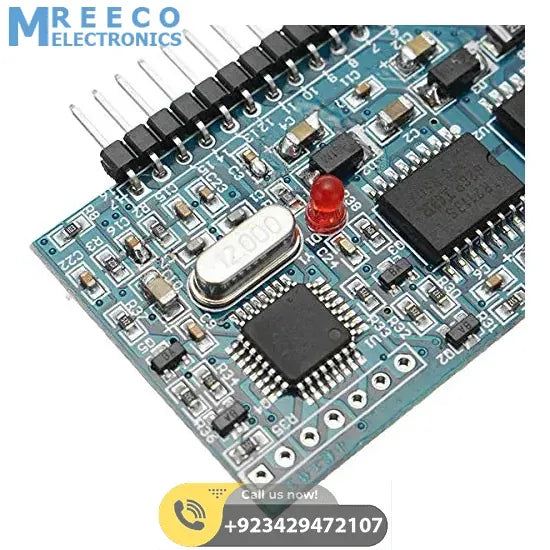

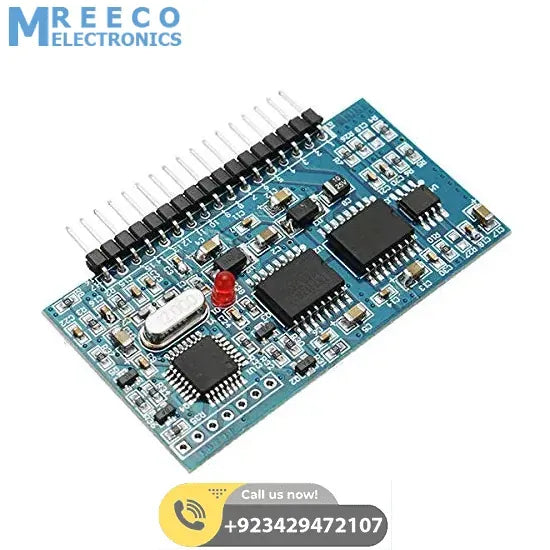

DC AC 5V Pure Sine Wave Inverter SPWM Driver Board EGS002 in Pakistan

Condition: New
Availability: In Stock
Share:     Faceook Twitter

SKU: 637720617742655829

Rs.1400 Rs. 1750

DC-AC 5V Pure Sine Wave Inverter SPWM Driver Board EGS002 Driver Module 12Mhz Crystal Oscillator CMOS RS232 Over-Voltage Under-Voltage Over-Current Over-Heating Protection - Arduino Co Description: EG8010 is a digital, function very well bring their own dead-time control of pure sine wave

  • inverter
  • generator chip, used in two-stage DC-DC-AC power conversion structure or single-stage DC-AC power frequency transformer architecture, an external 12MHz crystal oscillator, to achieve high precision, and harmonic distortion is very small, 50Hz or 60Hz pure sine wave
  • inverter
  • ASIC. The chip uses CMOS technology, the internal integration of SPWM sine generator, dead-time control circuit, the multiplier factor range, soft start circuit, protection circuit, RS232 serial communication interface and a serial driver module 1602 functions.

    DC AC 5V Pure Sine Wave Inverter SPWM Driver Board EGS002 in Pakistan:

    • 5V single power supply
    • 4 pin of pure sine wave output frequency: 50Hz pure sine wave of the fixed frequency of 60Hz pure sine wave of fixed frequency 0-100Hz; pure sine wave frequency adjustable 0-400Hz pure sine wave frequency adjustable
    • Unipolar and bipolar modulation
    • Comes with deadband control, pin 4 dead times: 300nS dead time 500nS dead time 1.0uS dead time 1.5uS dead time
    • External 12MHz crystal oscillator
    • PWM carrier frequency 23.4KHz
    • Voltage, current, real-time temperature feedback
    • Overvoltage, under voltage, overcurrent, and overheating protection
    • Soft-start mode pin setting the response time of 1S
    • Serial communication to the output voltage, frequency, and other parameters
    • External Serial Module 1602 displays the
    • inverter
    • voltage, frequency, temperature and current information


    • Single-phase pure sine wave
    • inverter
    • PV
    • inverter
    • The power
    • inverter
    • Digital
    • uninterruptible power supply UPS
    • system Generator system
    • If the power
    • Single-phase motor speed controller - Phase
    • inverter
    • Sine wave dimmer Sine
    • wave regulator Sine
    • wave generator

    Package Include:

    1 x DC-AC 5V Pure Sine Wave Inverter SPWM Driver Board EGS002
