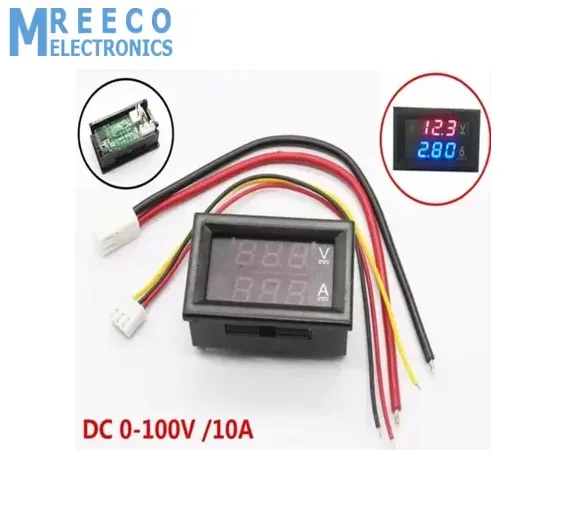

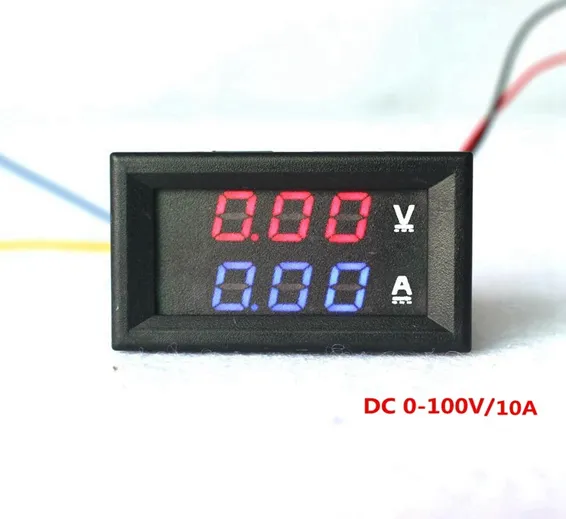

This is 0.28″ 5 Wires Red Led Digital Dual DC 100V 10A Ammeter Voltmeter. This meter will measure up to 100 VDC with a 0.1-volt resolution. One thing to note is, this meter has 2 wiring harnesses. One harness is to provide power for the meters, that’s the 2 poles with a RED and a BLACK lead. Small size, portable, the magnitudes of voltage, and current are displayed on the same screen at the same time.
This can be supplied anywhere from 6 volts DC up to 30 VDC. This is a separate power supply that is isolated from the source, it is possible to use the same supply but it seems to affect the amp meter reading. The 3 wire harness is used for a ground that connects directly to the battery or supply ground of the load.
Specifications Of DSN-VC288 DC 100V 10A Voltmeter Ammeter:
- Voltage measurement range: 0.0V-100V
- Current test range: 0-999mA, 0-10A
- Power supply range: DC4-30.0V
- Voltage error: ±0.1%
- Current error: ±1%
- Working current: < 20mA
- Refresh rate: about 300mS once
- Display mode: double three-digit 0.28" LED digital tube
- Display color: red + red, red + blue. Optional
- Lead length: 15cm
- Dimensions: 48 x 29 x 22 mm
- Mounting hole: 46 x 27 mm
- Working temperature: -10 ° C ~ 65 ° C
Note: Voltage and Current test display colors are in red or in Red and blue up to available in stock.
- 1 x Mini Digital Voltmeter Ammeter
