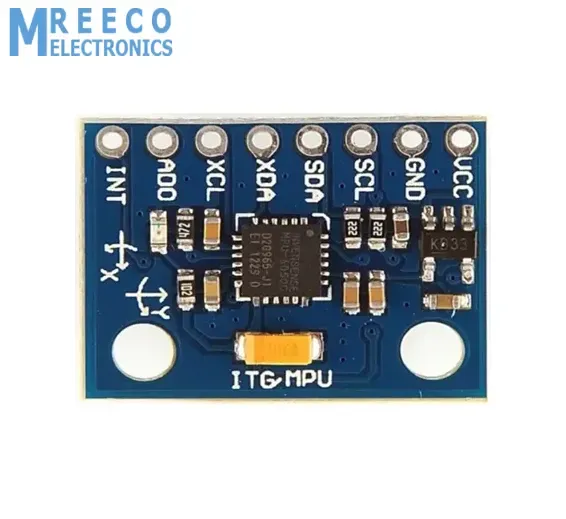

GY521 MPU6050 3 Axis Digital Gyroscope Accelerometer Sensor Module

Condition: New
Availability: In Stock
Share:     Faceook Twitter

SKU: 637718956241821426

Rs.325 Rs. 406

3-axis gyroscope and a 3-axis accelerometer are combined together on the same silicon die with an onboard Digital Motion Processor. Easy to get it fit into your project! It is very accurate, as GY-521 Mpu6050 Module contains 16-bits analog to digital conversion hardware for each channel. Therefor Three axis Gyrometer captures the x, y, and z channel at the same time. The sensor uses the I2C-bus to interface with the Arduino.

Features And Specifications Of GY-521 MPU6050 3 Axis Digital gyro + Accelerometer Three dimensional Angle sensor for Arduino:

  • Build in ultra low noise linear LDO voltage regulator
  • Build-in on board filters, which reduce noise from motor and other high current electronics
  • All sensors connected to I2C bus
  • You can easily select two I2C address for MPU6050 by soldered jumper
  • Tri-Axis angular rate sensor (gyro) with a sensitivity up to 131 LSBs/dps and a full-scale range of ±250, ±500, ±1000, and ±2000dps
  • Tri-Axis accelerometer with a programmable full scale range of ±2g, ±4g, ±8g and ±16g
  • Digital Motion Processing™ (DMP™) engine offloads complex MotionFusion, sensor timing synchronization and gesture detection
  • Embedded algorithms for run-time bias and compass calibration. No user intervention required
  • Power LED
  • Input Voltage: 2.3 – 3.4V
  • Build in Logic level converter for I2C
  • Digital-output temperature sensor
  • Dimensions 20x16mm
  • Designed for 5V logic level

Package Includes:

  • 1 x GY521 MPU6050 Module 3 Axis Gyroscope Accelerometer Module
