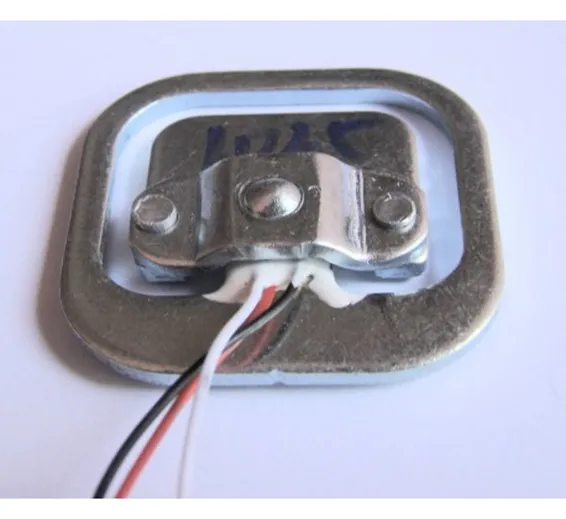

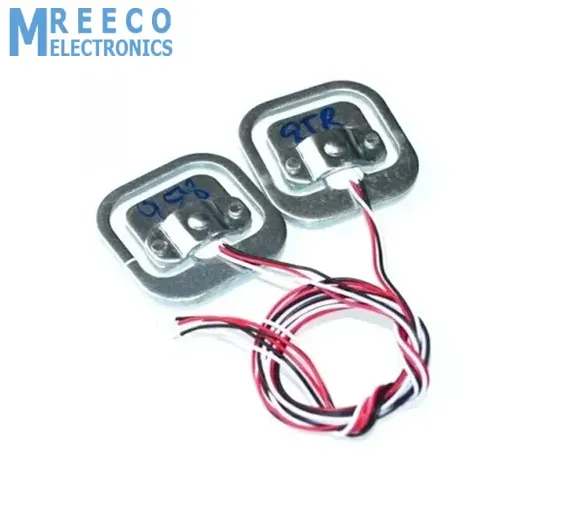

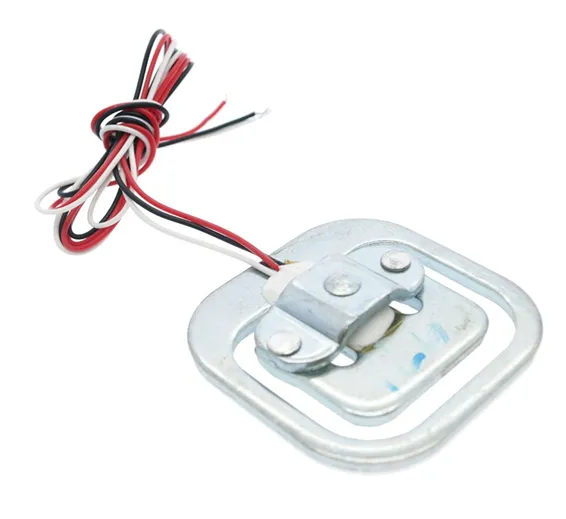

50kg Half bridge Load Cell Sensor in Pakistan

Condition: New
Availability: In Stock
Share:     Faceook Twitter

SKU: 637720624680986253

Rs.200 Rs. 250

This is a half-bridge load sensor, which is widely used in weight scales. When the half-bridge is being stretched, it sends signal via the red signal wire. You can use multiple load sensors simultaneously to increase the capacity range. Two sensors full-bridge measurements: 50kgx2=100kg Four sensor full-bridge measurements: 50kgx4=200kg Parallel use to add additional capacity

Specifications:

  1. Capacity (kg): 50
  2. Comprehensive error (%F.S): 0.10
  3. Output sensitivity (mv/V): 1.0 0.15%
  4. Nonlinearity (%F.S): 0.05
  5. Repeatability (%F.S): 0.05
  6. Hysteresis (%F.S): 0.05
  7. Creep (%F.S/3min): 0.1
  8. Zero Drift (%F.S/1min): 0.1
  9. Temp. Effect on zero (%F.S/10C): 0.3
  10. Temp. Effect on Output (%F.S/10 C): 0.1
  11. Zero Output (mv/V): 0.3
  12. Input Resistance (): 1000 10
  13. Output Resistance (): 100010
  14. Insulation Resistance (M): 2000 (100VDC)
  15. Excitation Voltage (V): 10
  16. Operation Temp. Range (C): -10~ 50
  17. Overload Capacity (%F.S): 150
  18. Method of connecting wire: Red= Sig ; White= Exc ; Black= Exc
  19. Dimension (mm): 34*34*8

Package includes:

1xHalf bridge Load Cell Sensor
