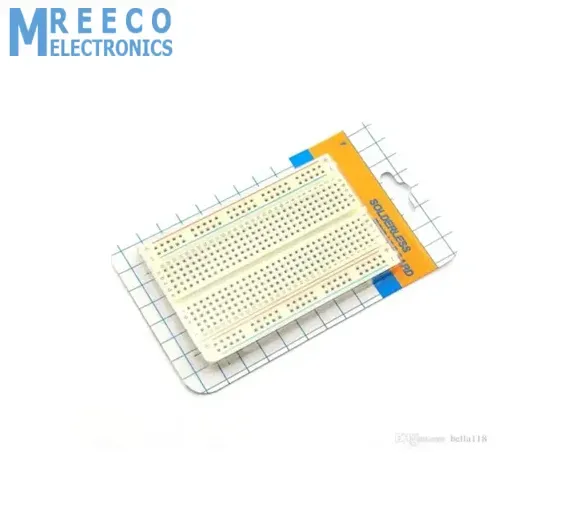

400 Tie Points Half Size Solderless Breadboard Solder less BreadBoard Prototyping Board

Condition: New
Availability: In Stock
Share:     Faceook Twitter

SKU: 637718958161428977

Rs.150 Rs. 188

400 Tie Points Half Size Solderless Breadboard is a high-quality breadboard with power lanes and printed top face for easy prototyping. A breadboard is used to make up temporary circuits for testing or to try out an idea. No soldering is required so it is easy to change connections and replace components. It is Reusable for fast build a prototype of an electronic circuit – will accept transistors, diodes, LEDs, resistors, capacitors and virtually all types of components – No soldering required – Can modify or revise the circuits easily Fit for jumper wire of 0.8mm diameter – Standard 2.54mm hole spacing Adhesive sheet on the backside of the board – Multiple breadboards can be spliced together too.

400 Tie Points Half Size Solderless Breadboard Features:

  • 400 tie points
  • 1 Double strip, Total 300 tie points
  • 2 Power lanes, Total 100 tie points in power lanes
  • Perfect for Arduino shield prototyping and testing
  • Plastic housing, metal contact clips

400 Tie Points Half Size Solderless Breadboard Specifications:

Maximum Voltage(V) 300
Maximum Operating Current (A) 3 – 5
Allowed Wire Size (AWG) 29 ~ 20
Length (mm) 82
Width (mm) 55
Height (mm) 10
Weight (gm) 40

Package Includes:

  • 1 x 400 Tie Points Half Size Solderless Breadboard.
