Multimeters

Handheld Digital Scope Multimeter UNI T UT81C

Condition: New
Availability: In Stock
Advance Payment Only
Share:     Faceook Twitter

SKU: TMD,Th,KRT

Ask Price

UNI-T UT81C series handheld digital oscilloscope multimeters combine oscilloscope and a digital multimeter in one. Oscilloscope measurement mode includes signal input, data processing, auto measure, waveform storage, and transfer. Multimeter mode features AC/DC voltage and current, resistance, diode, continuity, frequency, duty ratio, and capacitance. Portable Storage Oscilloscope is an economical instrument with the functions of oscilloscope and multimeter. Handheld Digital CRO is ergonomic, lightweight, universal instruments designed for engineers. Mini Pocket Oscilloscope is suitable for field testing and analyzing time-based voltage signals in a mobile environment

Features Of UNI-T UT81C digital Scope Multimeter:

  • Display Count: 3999
  • Auto Range
  • Bandwidth 16MHz
  • The real-Time Sample rate is 80MS/s
  • Duty Cycle: 0.1 ~ 99.9%
  • Diode
  • Auto Power Off
  • Continuity Buzzer
  • Display: 160 x 160 Monochrome
  • Trigger Types: Free Run/Normal/Single Shot
  • Memory: 10 screens and setups
  • Contrast and Bright Setup
  • Low Battery Indication
  • USB Interface
  • LCD Backlight
  • Input Impedance for DCV: around 10MΩ

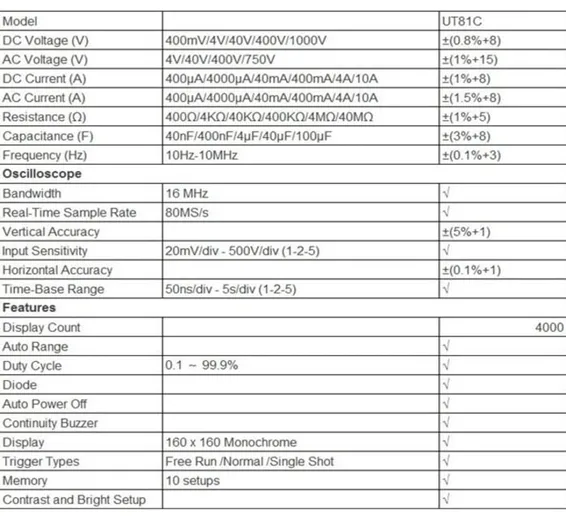

Specifications Of Portable Digital storage Oscilloscope Comes Multimeter DSO:

  1. Power: 1.5V battery (R6) x 4
  2. LCD Size: 60mm x 60mm
  3. Color: Red and Black
  4. Dimension: 200mm x 100mm x 48mm

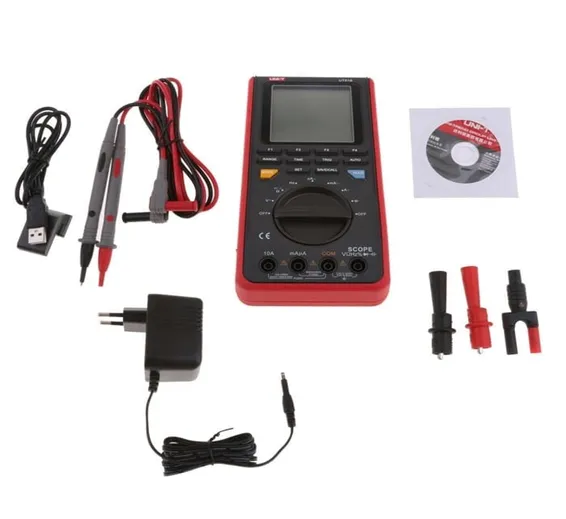

Package includes:

  • 1x Scope Multimeter
  • 1x USB interface cable
  • 4x Batteries
  • 1x test lead
  • 1x Alligator clip
