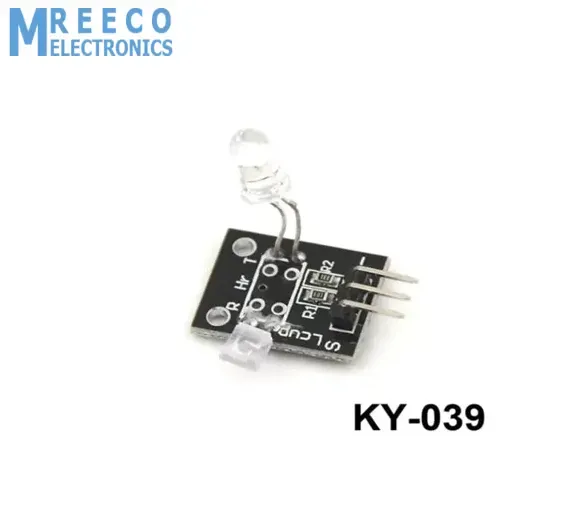

Heart Beat Detector Module KY 039 Heart Rate Sensor

Condition: New
Availability: In Stock
Share:     Faceook Twitter

SKU: 637731262960516055

Rs.100 Rs. 125

This KY-039 Finger Detection Heartbeat Measuring Sensor Module uses bright infrared (IR) LED and a phototransistor to detect the pulse of the finger, a red LED flashes with each pulse.

The LED is the light side of the finger, and the phototransistor on the other side of the finger, phototransistor used to obtain the flux emitted, when the blood pressure pulse by the finger when the resistance of the phototransistor will be slightly changed.

We chose a very high resistance resistor R1 because most of the light through the finger is absorbed, it is desirable that the phototransistor is sensitive enough. Resistance can be selected by experiment to get the best results. The most important is to keep the shield stray light into the phototransistor.

For home lighting that is particularly important because the lights at home mostly based 50HZ or 60HZ fluctuate, so faint heartbeat will add considerable noise.

Example Code:

// Pulse Monitor Test Script int sensorPin = 0; double alpha = 0.75; int period = 100; double change = 0.0; double minval = 0.0; void setup () { Serial.begin (9600); } void loop () { static double oldValue = 0; static double oldChange = 0;

int rawValue = analogRead (sensorPin); double value = alpha * oldValue + (1 – alpha) * rawValue;

Serial.print (rawValue); Serial.print (“,”); Serial.println (value); oldValue = value;

delay (period); }

Features :
  1. Use IR LED and an optical transistor to detect pulsation in fingers
  2. Small and Compact module
  3. Easy to use.
Package Includes :

1 x KY-039 Finger Detection Heartbeat Measuring Sensor Module
