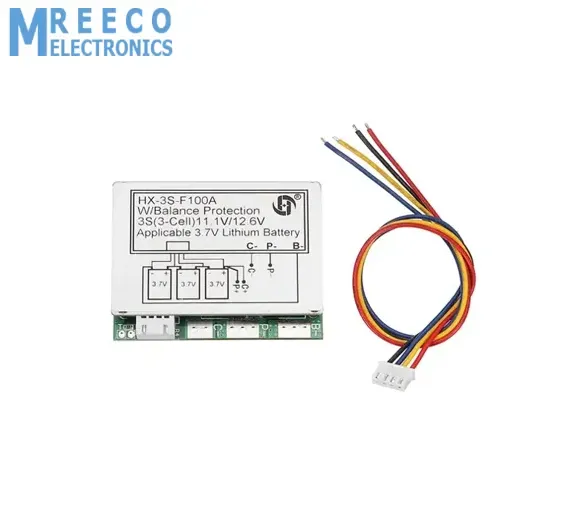

HX-3S-F100A 100A 3S BMS 18650 Battery Protection Board

Condition: New
Availability: In Stock
Share:     Faceook Twitter

SKU: 637719013896130503

Rs.1400 Rs. 1750

This HX-3S-F100A based 100A BMS board also called ( battery management system ). HX-3S-F100A is a protection board for li-ion 18650 cells. There are 10 MOSFET'S, strong heat-dissipating aluminum sheet installed on it, and the continuous current limit is 100A. It is suitable for 3 series lithium battery packs such as inverter, xenon lamp, and solar street lamp.

Features of HX-3S-F100A:
  1. Overcharge voltage range: 4.28v±0.05v/ per cell
  2. Size: 70*60*8.5mm
  3. Over-discharge voltage range: 2.5±0.05v
  4. Upper limit working current: 100A (pay attention to heat dissipation)
  5. Working temperature: -40~+50°C
  6. Upper limit instantaneous current: 100-120A
  7. Storage condition: -40~+80°C
  8. Quiescent current: less than 30uA
  9. Effective life: more than 30,000 hours
  10. Internal resistance: less than 300mΩ
  11. Short circuit protection: protection, delay self-recovery.
  12. Equilibrium current: 65 mA
  13. Charging voltage: 12.6V-13V
  14. Charging current upper limit: 10A

Package included:

1 x 3S 11.1V High Current 100A 3.7V Lithium Battery Protection Board With Balance
