IR Infrared LED Transmitter And Receiver Pair For Arduino/Raspberry-Pi/Robotics
Condition: New
Availability:
In Stock
Share:
SKU: 637718954643904496
Rs.15
Rs. 19

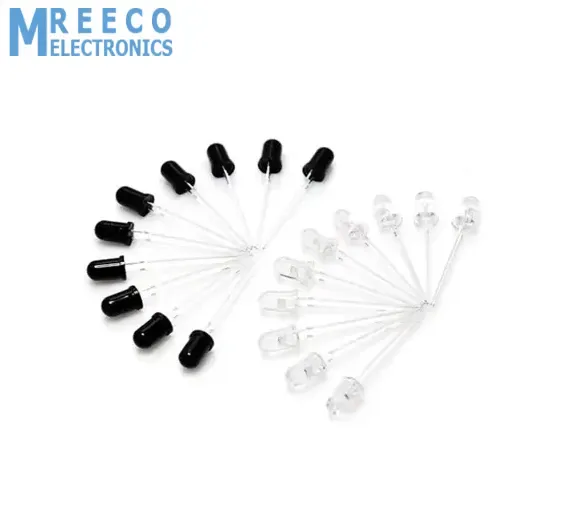

IR Infrared LED Transmitter And Receiver Pair is the combo of both IR LED & photodiode. IR Transmitter And Receiver, which together can work as an IR sensor module. This is the IR Transmitter and Receiver pair-matched pair used in our IR proximity, White Line or Micromouse sensor. It consists of 940 nanometer wavelength high power IR LED and photodiode having a peak sensitivity at 940-nanometer wavelength.
Features of Infrared LED Transmitter And Receiver Pair:
- Use this IR Transmitter and Receiver pair to build object sensors, color sensors, line sensors, distance sensors, etc.
- Both the transmitter and emitter are built to work on the 940 nm wavelength.

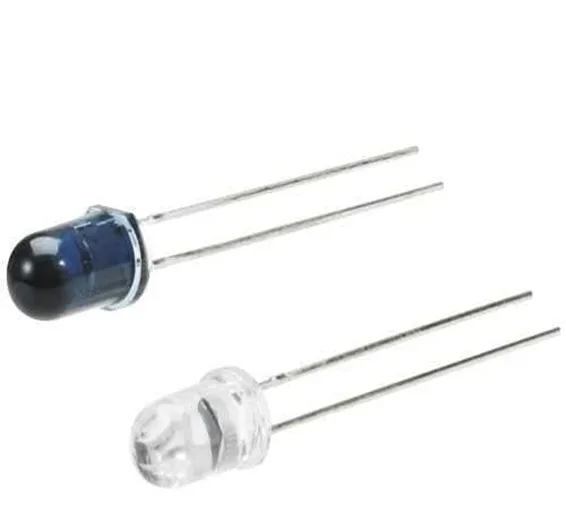

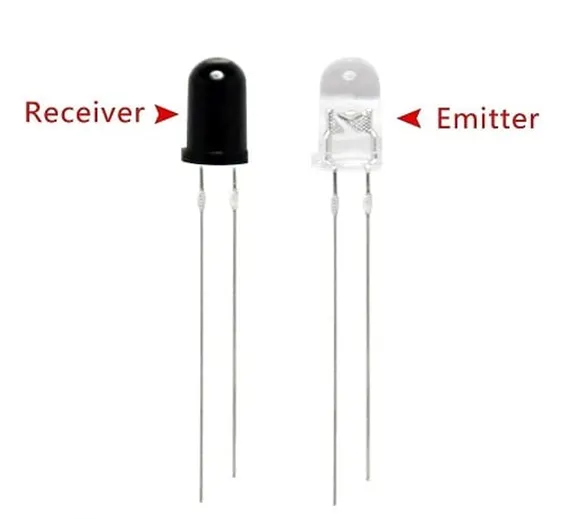

- The transparent LED is the transmitter while the dark blue one is the receiver.
- Designed for short-distance detection.
- Enhanced sensitivity.
- Unfocused for sensing diffused surfaces.
- Often reliable.
- Cost-effective performance.
Specifications of IR Infrared LED Transmitter And Receiver Pair:
- IR TX RX size: 3mm or 5mm diameter package
- IR LED current rating: 30mA nominal, 600mA pulse loading at 1% duty cycle
- IR LED wavelength: 940nM
- Photodiode peak response wavelength: 940nM
- Power: 0.1W.
- Absolute Maximum Forward Current: 50mA.
- Launch Angle (Approx): 45 Deg.
- Wavelength: 940nm.
- Typical forward voltage drop: 1.1V.
- Diameter: 3mm or 5mm (depends upon availability).
- Power: 0.15W.
- Maximum Current: 30mA.
- Receiving Angle (Approx): 45 Deg.
- Wavelength: 940nm.
- Typical forward voltage drop: 1.2V.
- Diameter:3mm or 5mm (depends upon availability).
Applications:
- DIY projects.
- Robotics projects.
- Arduino projects.
- Raspberry-Pi projects.
- Electrical/Electronic projects.
Package Includes:
1 x IR Infrared LED Transmitter And Receiver Pair (3mm or 5mm (depends upon availability))
