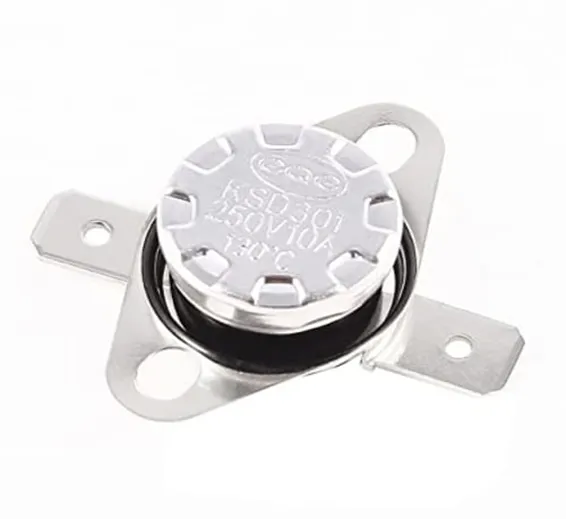

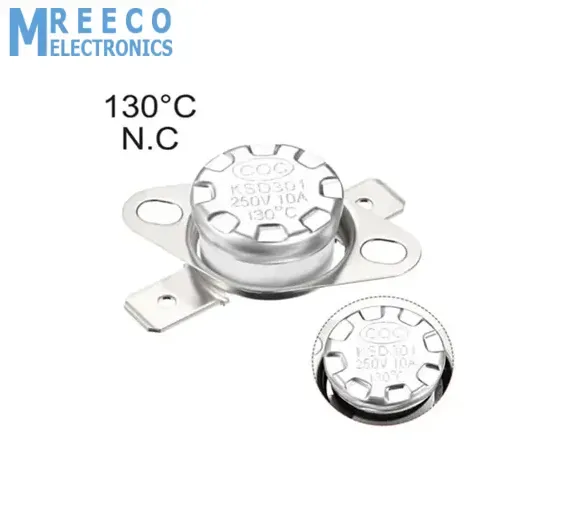

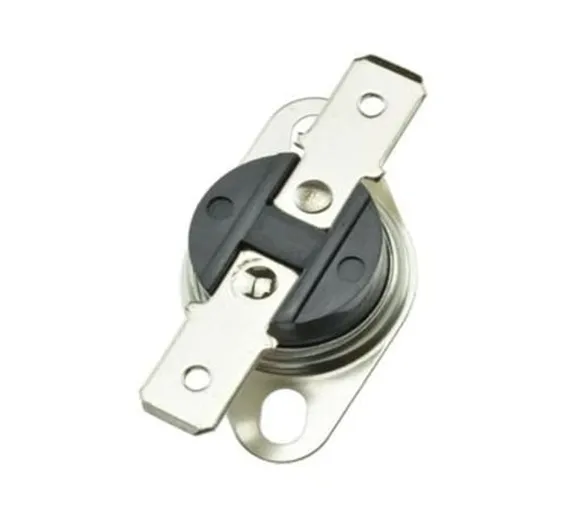

KSD301 250V 10A Temperature Control Switch 130 Celsius N.C Thermostat

Condition: New
Availability: In Stock
Share:     Faceook Twitter

SKU: 637720672065804137

Rs.80 Rs. 100

KSD301 is a General-purpose Temperature Control Switch. The original state of temperature control switch contact is closed, and open when the temperature sensing exceeds the rated temperature. 130 Celcisus Thermostat is closed until the surface reaches 130 Celsius degree, then the switch open. 10A NC Temperature Switch is a double metal chip that has a long service life and no arc phenomenon. Thermal Switch is mainly used for motor electric heating water dispenser, water bottles, disinfection cabinet, coffee shell, electric iron, dryer, air conditioning, water heater, electronic cooker, heater, disinfection cupboard, and motor cleaner, etc.

Features And Specifications Of KSD301 250V 10A Normally Close NC Thermostat:

  1. Material: Metal, Plastic
  2. Color: Black, Silver Tone
  3. Type: Normal Close (N.C.)
  4. Temperature: 130℃
  5. It has automatic reset, low cost, large capacity, minute current thermostats.
  6. Voltage: 250V
  7. Current: 10A
  8. Circuit Resistance: 50 Mohm
  9. Insulation resistance: 100 Mohm
  10. Size (Each): 3.4 x 1.2cm / 1.3"" x 0.47"" (L*H)
  11. Mounting Hole Spacing: 2.4cm / 0.94

Package Include:

  • 1 x Temperature Switch Thermostat

Best online shopping website for KSD301 250V 10A Temperature Control Switch 130 Celsius N.C Thermostat Thermistor at a cheap price in Lahore, Islamabad, Karachi, Faislabad, Multan, Quetta, Sukkur, Peshawar, Rawalpindi, and all over Pakistan
