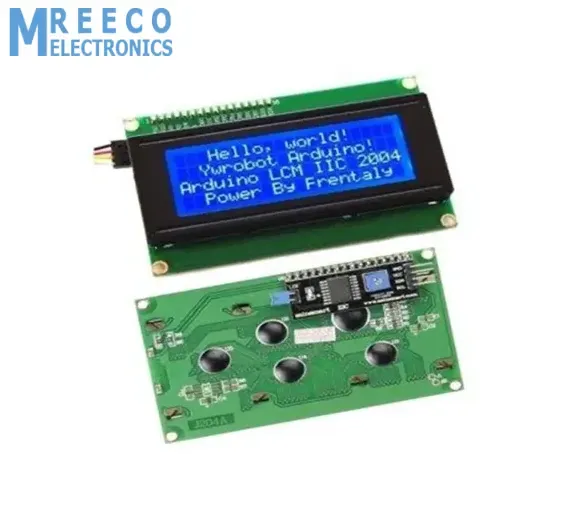

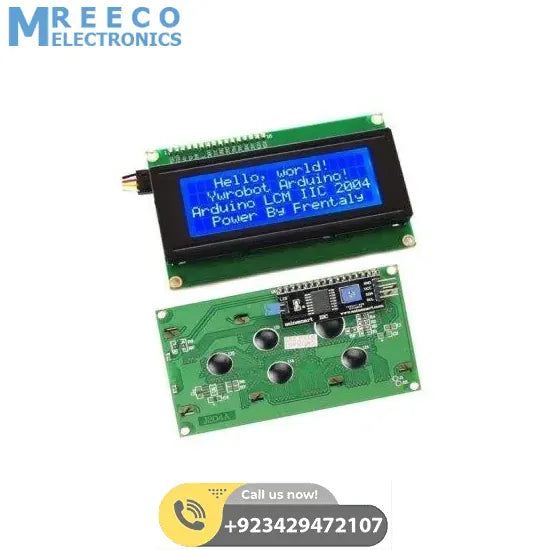

LCD2004 Blue Parallel LCD Display with IIC/I2C interface

Condition: New
Availability: In Stock
Share:     Faceook Twitter

SKU: 637720676654337164

Rs.1500 Rs. 1875

If you want to add some visual output to your Arduino projects, you’ll need a display. If you need only little to display, the LCD2004 Parallel LCD Display with IIC/I2C interface is a quite good solution.

This is an LCD2004 Parallel LCD Display that provides a simple and cost-effective solution for adding a 20×4 White on RGB Liquid Crystal Display into your project. The display is 20 character by 4 line display has a very clear and high contrast white text upon a blue background/backlight.

This is a great blue backlight LCD display. It is fantastic for Arduino based project. This LCD2004 Parallel LCD Display with Blue Backlight is very easy to interface with Arduino or Other Microcontrollers.

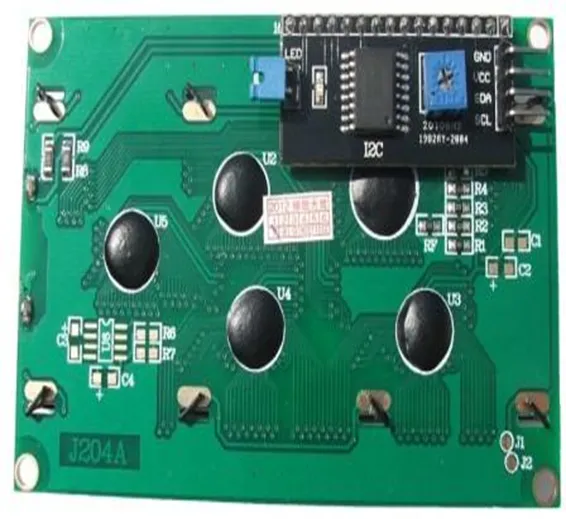

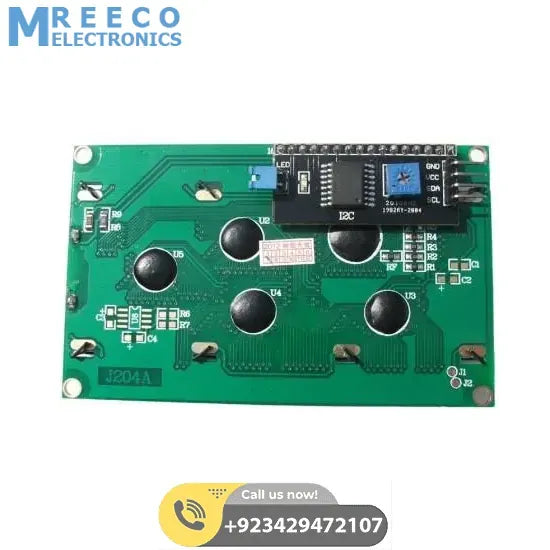

This display overcomes the drawback of LCD2004 Parallel LCD Display in which you’ll waste about 8 Pins on your Arduino for the display to get working. Luckily in this product, an I2C adapter is directly soldered right onto the pins of the display. So all you need to connect are the I2C pins, which shows a good library and little of coding.

The I2C is a type of serial bus developed by Philips, which uses two bidirectional lines, called SDA (Serial Data Line) and SCL (Serial Clock Line). Both must be connected via pulled-up resistors. The usage voltages are standard as 5V and 3.3V.

If you already have the I2C adapter soldered onto the board like in this product, the wiring is quite easy. You should usually have only four pins to hook up. VCC and GND of course. The LCD display works with 5 Volts. So we go for the 5V Pin.

The values shown on the display can be either a simple text or numerical values read by the sensors, such as temperature or pressure, or even the number of cycles that the Arduino is performing.

Specification Of LCD2004 Blue Parallel LCD Display:

  1. Model: LCD2004
  2. Characters: 20
  3. Interface Type: I2C
  4. I2C Address: 0x27
  5. Character Color: White
  6. Backlight: Blue
  7. Input Voltage (V): 5
  8. Length (mm): 60
  9. Width (mm): 98
  10. Height (mm): 14
  11. Weight (gm): 76

Package Includes:

  • 1 x LCD2004 Blue Parallel LCD Display with IIC/I2C interface
