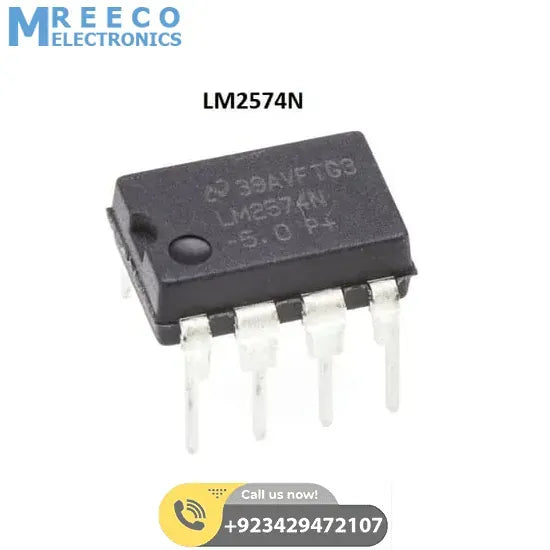

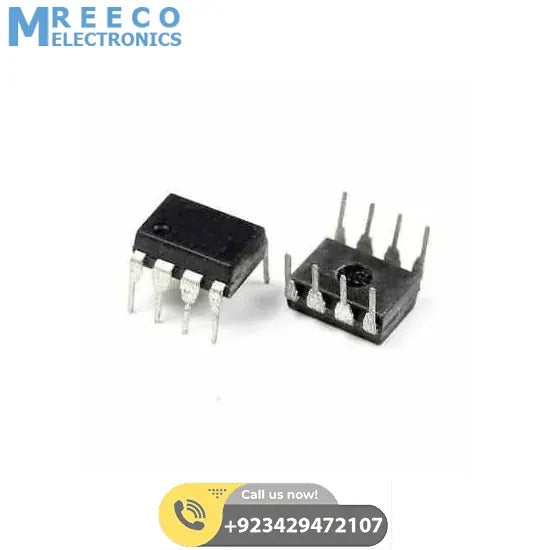

Stock Lot LM2574 ADJ Voltage Buck Regulator IC

Condition: New
Availability: Out Of Stock
Share:     Faceook Twitter

SKU: 637721593041999686

Rs.50 Rs. 63

The LM2574 family is a series of easy to use fixed and adjustable switching voltage regulators. The LM2574 contains all of the active circuitry necessary to construct a stepdown (buck) switching regulator and requires a minimum of external components. The LM2574 can supply 0.5A while maintaining excellent line and load regulation. The output switch includes cycle-by-cycle current limiting, as well as thermal shutdown for full protection under fault conditions.

Specifications of LM2574 ADJ Voltage Buck Regulator IC:

  • 3.3V, 5V, 12V, and adjustable output versions
  • Adjustable version output 1.23V to 37V ±4% Max. over Line and Load conditions.
  • Guaranteed 0.5A output current
  • Wide input voltage, up to 40V
  • Thermal shutdown and current limit protection
  • Requires only 4 external components.
  • Shutdown capability (standby mode)
  • Low power standby mode < 200µA typical
  • High efficiency
  • 52kHz fixed frequency internal oscillator
  • Uses standard inductors

LM2574 Datasheet

Package Include:

  • 1x LM2574 ADJ Voltage Buck Regulator IC
