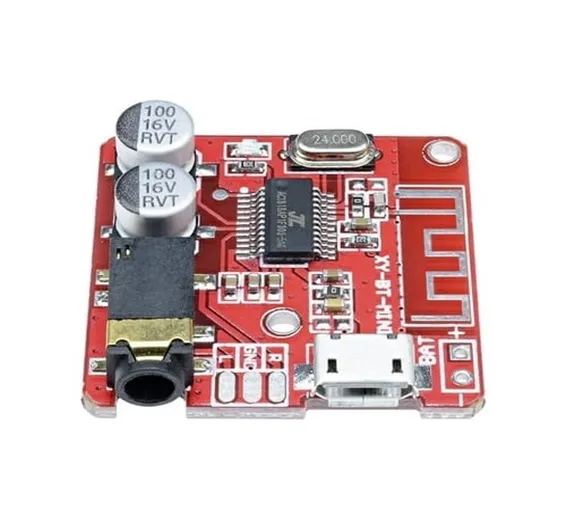

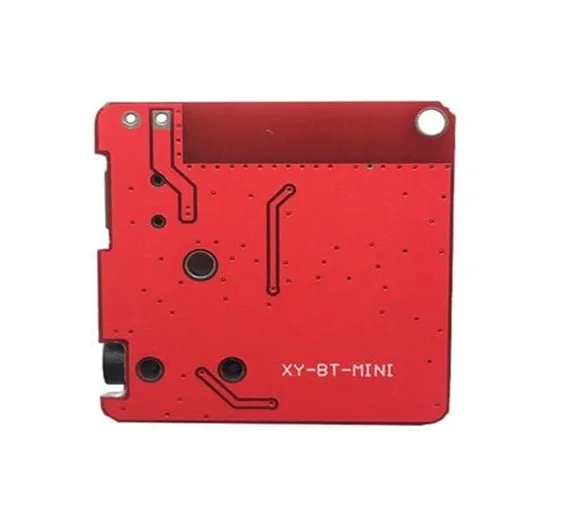

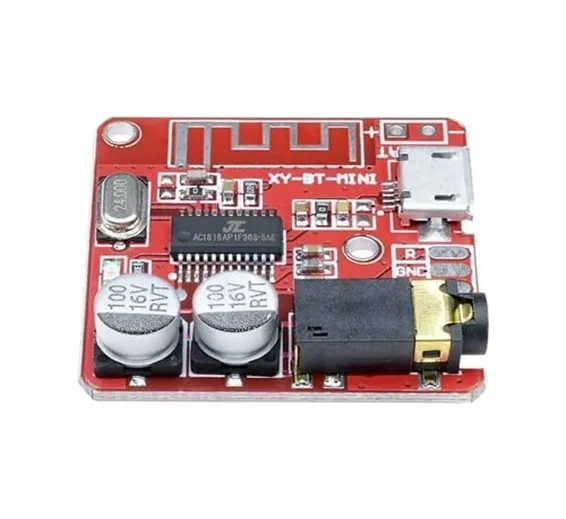

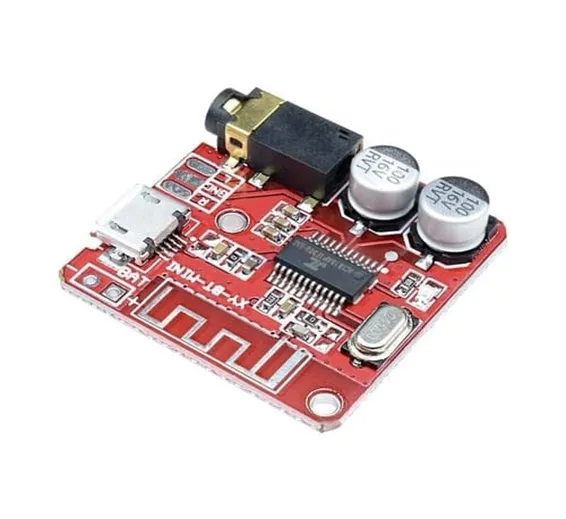

MP3 Bluetooth 4.1 5V Decoder Car Speaker Audio Stereo Amplifier Board Module

Mp3 Bluetooth Audio Board Supports Bluetooth wireless connections.USB powered Universal Micro USB 5V has the longest communication distance of 20 meters. It is very easy to use and small in size. Bluetooth mp3 decoder supports decoding function. Bluetooth Audio Amplifier has many applications in a smart home, Malls, Toys, cars, and Hotels

Features Of Bluetooth Stereo Audio Receiver Circuit Board :

• Bluetooth wireless connection.Longest communication distance 20 meters.
• Support decoding function.
• Pairing voice prompts.
• Easy to use, just need power and headset.
• Small size.
• Simple wiring.
• Stable output.

Parameters Of MP3 Bluetooth Receiver Board Amplifier Module for Car Speaker Amplifier:

1. Model: XY-BT-MINI
2. Work voltage: DC 3.7V-5V/Micro USB
3. Output Power: 3W*2
4. Audio Socket: 3.5mm
5. Size: 68*48*10mm
6. SNR: 90dB
7. THD+N: -70dB
8. Crosstalk: -86dB
9. DNR: 91dB
10. Support Profile: A2DP/AVCTP/AVDTP/AVRCP/HFP
11. LOS: >15m
12. Bluetooth version: 4.1

User Instructions:

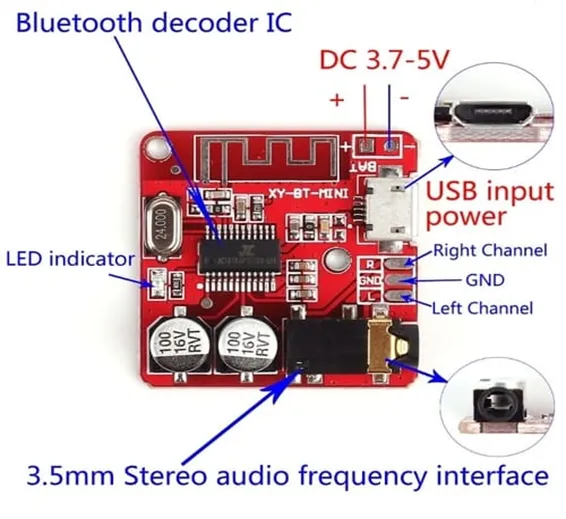

1. Connect input power from Micro USB or pads. The power indicator LED will ON.
2. Connect to the headset or speakers or amplifiers.
3. It will into Bluetooth mode and it is ready to pair after power on.
4. The Bluetooth name is ‘ XY_BT ’.
5. Pair and connect to Bluetooth. You will hear the prompt voice ”The Bluetooth device is connected successfully”.
6. Play music.

Package Include:

• 1x Mp3 Bluetooth Decoder Board Mini XY-BT
