Multifunction Electric Energy Meter with LCD Display D69 2058

Condition: New
Availability: In Stock
Share:     Faceook Twitter

SKU: 637736208698439998

Rs.2700 Rs. 3375

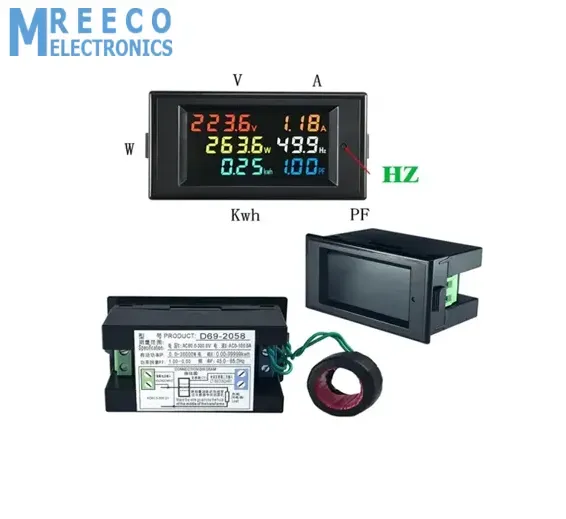

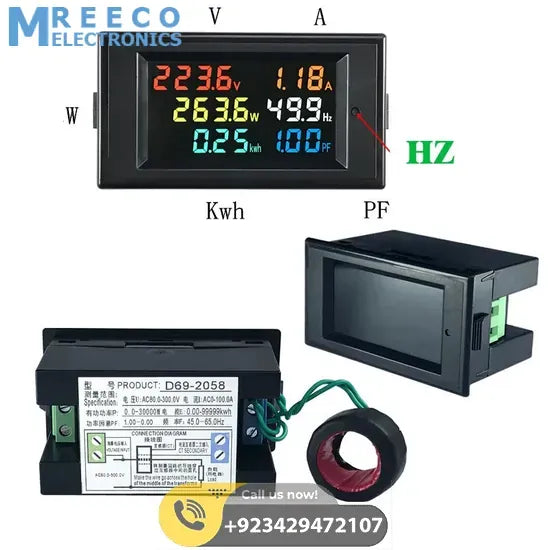

The meter which is used for measuring the energy utilizes by the electric load is known as the energy meter. The energy is the total power consumed and utilized by the load at a particular interval of time. It is used in domestic and industrial AC circuit for measuring the power consumption. D69 2058 is such a meter which display Voltage, Current, Power Factor, Active power, Electric energy (KWH) and Frequency

Specifications:

  1. Accuracy: 1% 2 words
  2. AC voltage: AC 80.0-300.0V/200.0-450.0V (You should select the suitable type of meter when your making order)
  3. AC current: AC 0-99.99A, minimum resolution is 0.01A
  4. AC current: AC 0-40.00A, minimum resolution is 0.01A
  5. power frequency: 45.0Hz-65.0Hz
  6. power factor : 0.00-1.00PF
  7. active power: 0-45000W when the active power between 0 and 9999.9W, the display accuracy is 0.1W
  8. Electric energy: 0-9 99999kwh, when the electric power between 0 and 999.99kwh, the display accuracy is 0.01kwh when between 10000.0-9999.9kwh, the display accuracy is 0.1kwh when between 10000.0 and 999999kwh, the display accuracy is 1kwh.
  9. Speed: 2 times per second
  10. Size: 79*43*48mm
  11. Installation Size: 76*39mm
  12. Auto-saving: when power off, the electric energy will be saved. The saved electric energy will Be accumulated continue when the meter power-on next time.

Application Method:

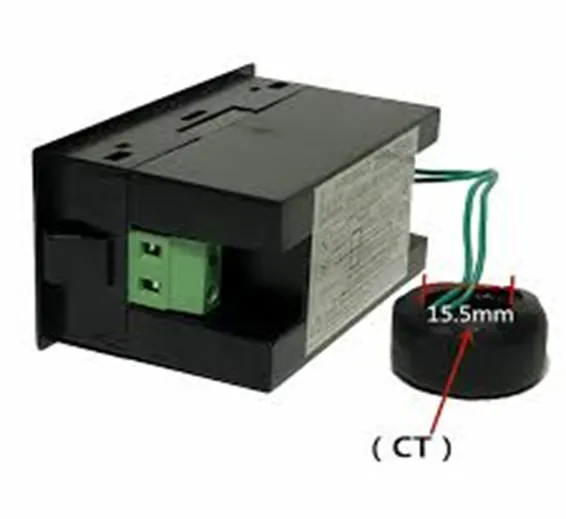

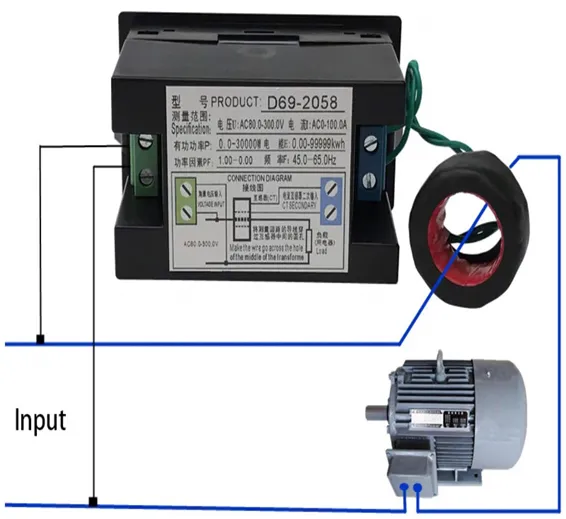

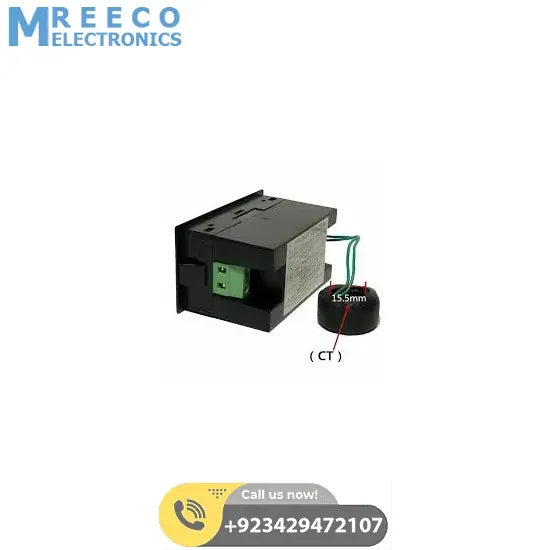

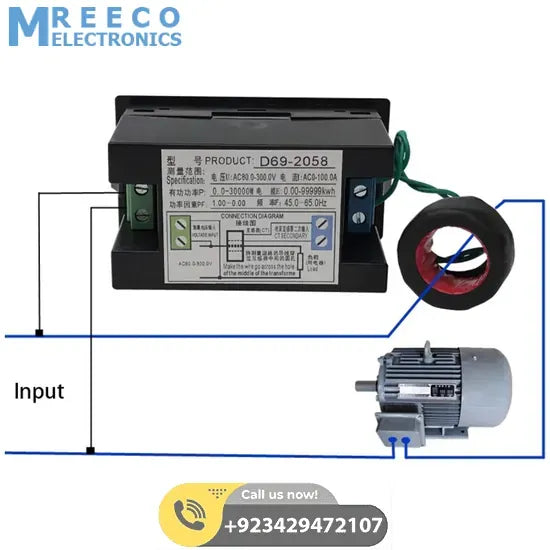

  1. According to a connection graph, connect the green wire of the secondary current transformer to the blue terminal of the meter and make the wire of measurement circuit through the hole in the current transformer.
  2. Supply power and start to measure and display the result.
  3. Press down the button last for 5 seconds, the electric energy will be zero.

Buy Multifunction Electric Energy Meter with LCD Display D69 2058 at Pakistan's Best Online Shopping Store in cheap price. We Deliver in Gujranwala, Karachi, Lahore, Islamabad, Rawalpindi, Multan, Quetta, Faisalabad and all over Pakistan.

Attention

  1. The meter will be destroyed when you make the wrong connection method with voltage
  2. The meter can only use to measure 50Hz AC city electricity, it will be destroyed when using to input(green terminal) and secondary current transformer(blue terminal).measure square wave, the output of inverter and correction sine wave.

Package Include:

1x Multifunction Electric Energy Meter with LCD Display D69 2058
