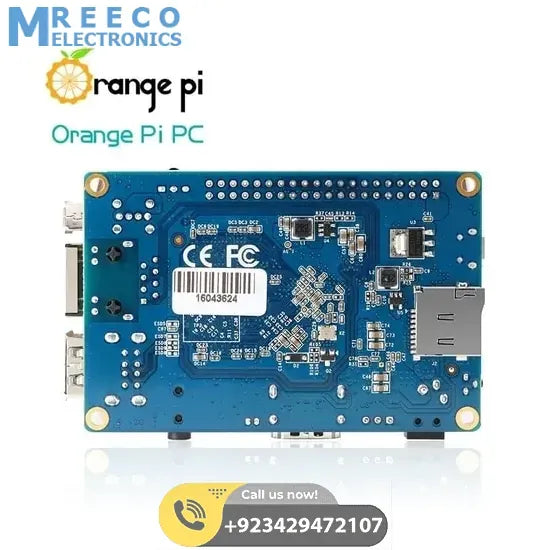

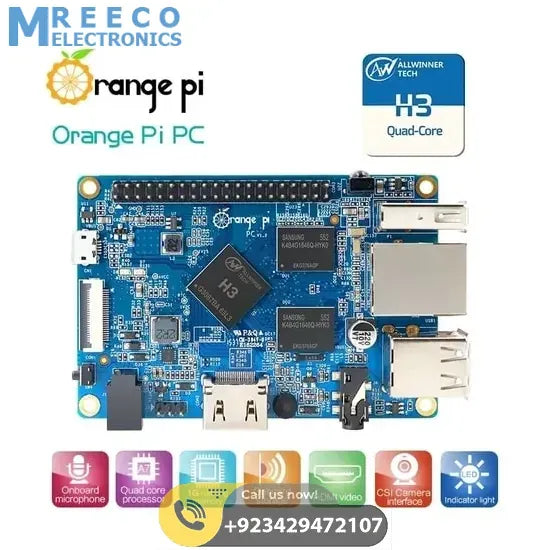

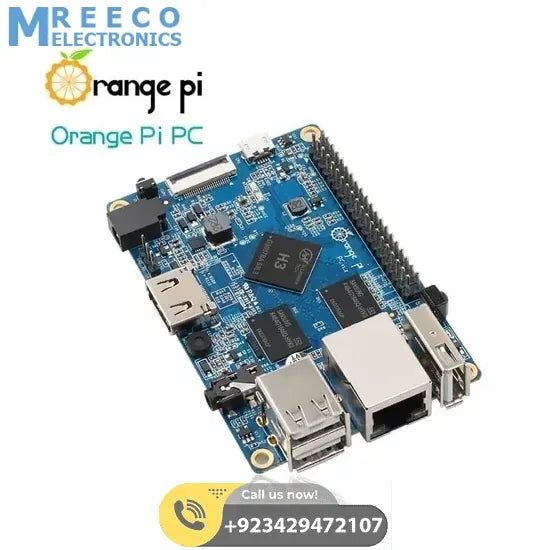

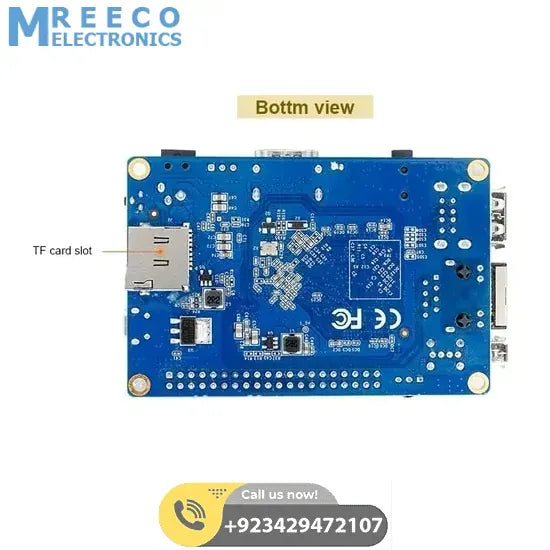

Orange Pi PC H3 Quad Core Development Board Module

Condition: New
Availability: Out Of Stock
Share:     Faceook Twitter

SKU: 637720655489173621

Rs.12000 Rs. 15000

Orange Pi PC H3 is for anyone who wants to start creating with technology not just consuming it. This orange pi pc board is a simple, fun, useful tool that you can use to start taking control of the world around you. This development board is an open-source single-board computer. This orange pi module can run

  • Android
  • 4.4, Ubuntu, Debian, Rasberry Pi Image. It uses the AllWinner H3 SoC and has 1GB DDR3 SDRAM

    Specifications Of Orange Pi PC H3 1GB Supports Lubuntu Linux
  • Android
  • PC:

    1. CPU: H3 Quad-core Cortex-A7 H.265/HEVC 4K
    2. GPU: Mali400MP2 GPU @600MHz, Supports OpenGL ES 2.0
    3. Memory (SDRAM): 1GB DDR3 (shared with GPU)
    4. Onboard Storage: TF card (Max. 32GB) / MMC card slot
    5. Onboard Network: 10/100M Ethernet RJ45
    6. Video-Input: A CSI input connector Camera, Supports 8-bit YUV422 CMOS sensor interface, Supports CCIR656 protocol for NTSC and PAL, Supports SM pixel camera sensor, Supports video capture solution up to 1080p@30fps
    7. Audio Input: MIC
    8. Video Outputs: Supports HDMI output with HDCP, Supports HDMI CEC, Supports HDMI 30 function, Integrated CVBS, Supports simultaneous output of HDMI and CVBS
    9. Audio Output: 3.5 mm Jack and HDMI
    10. Power Source: DC input can supply power, but USB OTG input don’t supply power
    11. USB 2.0 Ports: Three USB 2.0 HOST, one USB 2.0 OTG
    12. Buttons: Power Button(SW4)
    13. Low-level peripherals: 40 Pins Header
    14. GPIO(1x3) pin: UART, ground.
    15. LED: Power led & Status led
    16. Key: IR input, POWER
    17. Supported OS:
    18. Android
    19. Ubuntu, Debian Image
    20. Product size: 85 mm × 55mm
    21. Weight: 38g

    Applications Of Orange Pi PC H3 Board:

    • Computer
    • Wireless server
    • Games
    • Music and sounds
    • HD video
    • A speaker
    • Android
    • Scratch
    • Pretty much anything else, because Orange Pi is open source

    Package Includes:

    • 1 x Orange Pi PC H3 Development Board
