P5 Indoor LED Panel Digital Screen Module 320x160mm 64x32 Dots Pixel RGB Full Color LED Advertising Board

Condition: New
Availability: In Stock
Share:     Faceook Twitter

SKU: 637720627390982236

Rs.7000 Rs. 8750

Buy LED Panel 64x32 RGB at Pakistan's Best Online Shopping Store in low price. Wide range of LED Panel 64x32 RGB. We deliver in Karachi, Lahore, Islamabad, Rawalpindi, Peshawar, Quetta, Multan and all over Pakista. Bring a little bit of Times Square into your home with this sweet 64x32 square RGB LED matrix panel. These panels are normally used to make video walls, on brands shops and on the sides of busses and bus stops, to display animations or s video adds..

This version is the 5mm pitch 64x32 RGB LED Matrix. Please note you cannot use an Arduino UNO to drive this size, it's way too big! Use an Arduino Mega, Raspberry Pi, BBB or other devices that can handle displaying to RGB matrices and has plenty of RAM.

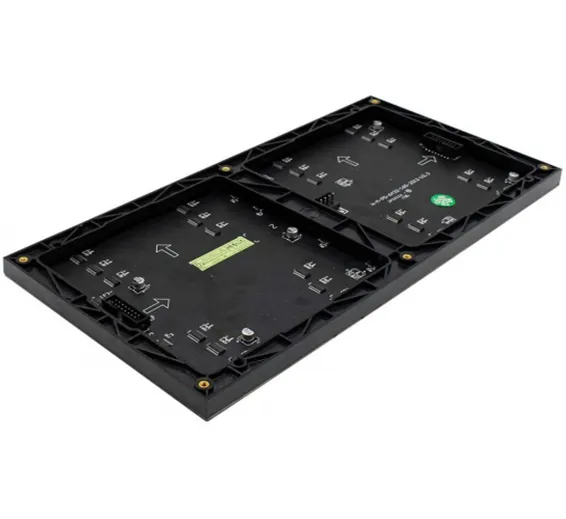

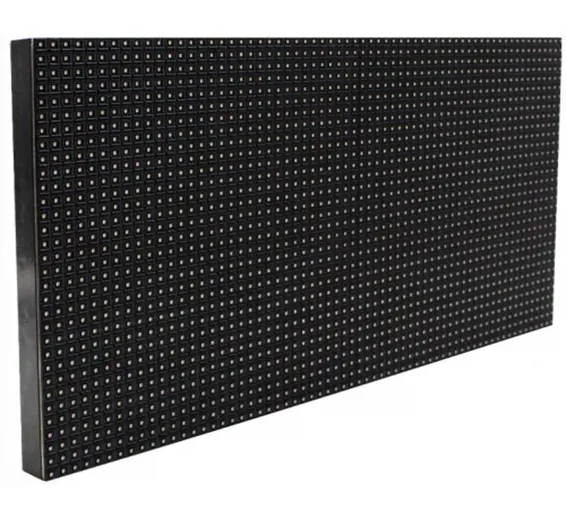

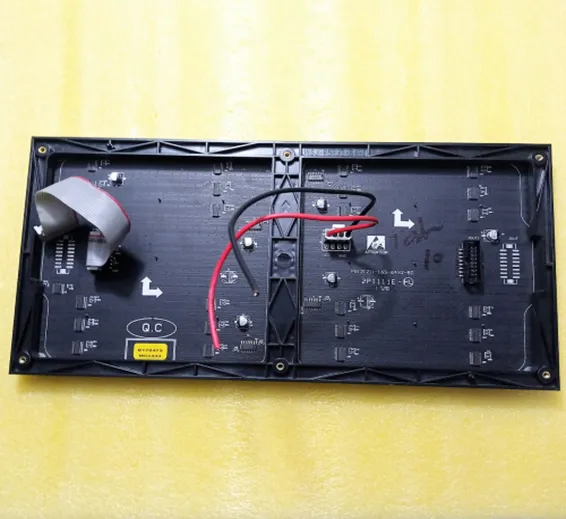

This matrix has 2048 bright RGB LEDs arranged in a 64x32 grid on the front. On the back, there are two IDC connectors (one input, one output: in theory you can chain these together) and 12 16-bit latches that allow you to drive the display with a 1:16 scan rate.

These displays are technically 'chainable' - connect one output to the next input.. We suggest you 4A regulated 5V adapter to get full performence of the module.

Hereis example video of similer varient of the P5 led panel.

Package Includes:

  1. A single 64x32 RGB panel (6inch x 12inch)
  2. An IDC cable
  3. A plug-in power cable
  4. 4x mounting screws with mini-magnets
