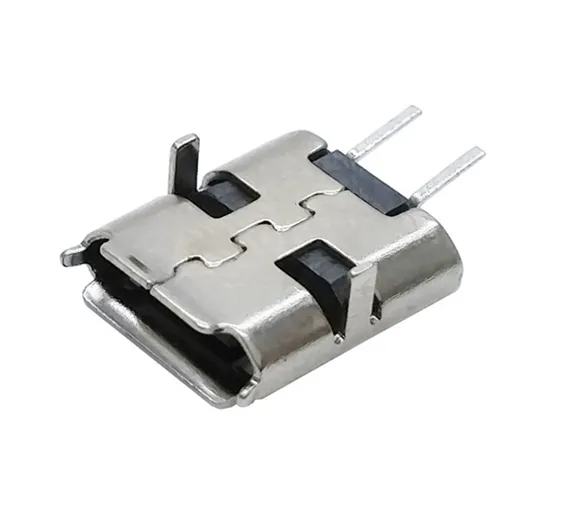

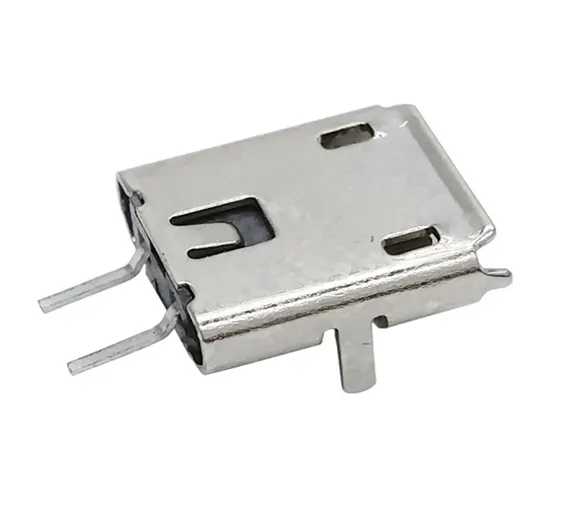

PCB Mount Micro USB Connector

Condition: New
Availability: In Stock
Share:     Faceook Twitter

SKU: 637720644596287931

Rs.10 Rs. 13

This is female type micro USB connector for charging port or power supply port which can be applied to Power, PCB baord, Tablet charging ports

Product name 2 Pin Female Micro USB connector Model nummber AMUSB-2PF06 Insert force 35N Max Withdraw force

10N Min.Initial 8-20N after 3000 cycles

Specification

Current Rating 1.0A Voltage Rating 30V Durability 3000 cycles min Withstand Voltage 100V AC Min Contact Resistantce 30MΩ Max.Initial;40 MΩ Max after 3000 cycles Insulation Resistance 100MΩ Min Working Temperature -30℃—+80℃ Rubber Core LCP UL94V-0 Terminal C2680R-H,Nickel plated,Gold plated1μ" Housing C2680R-H,Surface of Nickel Plating100μ Shipment Small order by express,mass order by ship or air After-sale Service 365 days warranty Payment Terms

L/C,T/T,Western Union and Paypal 30% deposit and the

balance before shipment
