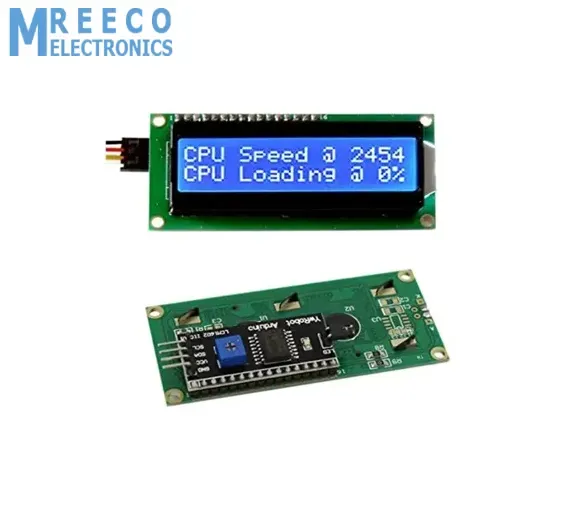

PCF8574T IIC I2C 1602 Blue/Green Backlight LCD Display Module For Arduino

Condition: New
Availability: In Stock
Share:     Faceook Twitter

SKU: 637718971459066871

Rs.650 Rs. 813

IIC/I2C/TWI 1602 Serial Backlight LCD Display Module YwRobot For Arduino ,Arduino IIC/I2C interface LCD1602 with Blue or yellow/green LCD . Arduino IIC/I2C interface was developed to reduce the IO port usage on Arduino board . Old 1602 screen requires 7 IO ports but this module uses only two Much needed control panel IO ports can be used to add some sensors, SD card and so on.

Features:

  1. Power supply voltage: +5V
  2. Support I2C protocol
  3. I2C Address: It’s either 0x27 or 0x3F
  4. Received an email from a customer saying that his board works with 0x3F
  5. Pin Definition : GND、VCC、SDA、SCL
    1. Power supply voltage: +5V
    2. Back lit (Blue with White char color
    3. Size : 82x35x18 mm
    4. Contrast Adjust : Potentiometer
    5. LED is 16-Character 2-Line, blue Screen and white Character (STN Negative Blue)
    6. Be I2C-Bus Interface that can connect 8 devices together in the same bus (setup different Address)
    7. Use IC No.PCF8574A to expand Port for connecting with LCD
    8. Use Power Supply 5V DC

    This is another great LCD display. With limited pin resources, your project will quickly run out of resources using normal LCDs. With this I2C interface LCD module, you only need 2 lines (I2C) to display the information. If you already have I2C devices in your project, this LCD module actually cost no more resources at all. Fantastic for Arduino or gadgeteer based projects.

    Documents:

    1. Manual
    2. Schematic
