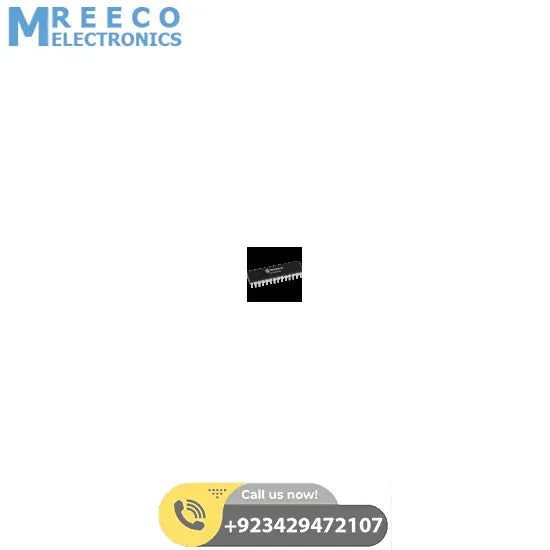

PIC16F870 MICRO CONTROLLER

Condition: New
Availability: In Stock
Share:     Faceook Twitter

SKU: 637731175800439447

Rs.450 Rs. 563

Microcontroller Core Features: • High performance RISC CPU • Only 35 single word instructions to learn • All single cycle instructions except for program branches which are two-cycle • Operating speed: DC - 20 MHz clock input DC - 200 ns instruction cycle • 2K x 14 words of FLASH Program Memory 128 x 8 bytes of Data Memory (RAM) 64 x 8 bytes of EEPROM Data Memory • Pinout compatible to the PIC16CXXX 28 and 40-pin devices • Interrupt capability (up to 11 sources) • Eight level deep hardware stack • Direct, Indirect and Relative Addressing modes • Power-on Reset (POR) • Power-up Timer (PWRT) and Oscillator Start-up Timer (OST) • Watchdog Timer (WDT) with its own on-chip RC oscillator for reliable operation • Programmable code protection • Power saving SLEEP mode • Selectable oscillator options • Low power, high speed CMOS FLASH/EEPROM technology • Fully static design • In-Circuit Serial Programming (ICSP) via two pins • Single 5V In-Circuit Serial Programming capability • In-Circuit Debugging via two pins • Processor read/write access to program memory • Wide operating voltage range: 2.0V to 5.5V • High Sink/Source Current: 25 mA • Commercial and Industrial temperature ranges • Low power consumption: - < 1.6 mA typical @ 5V, 4 MHz - 20 μA typical @ 3V, 32 kHz - < 1 μA typical standby current
