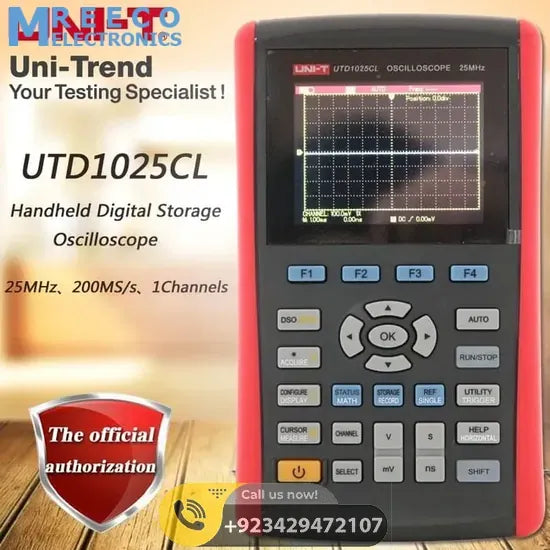

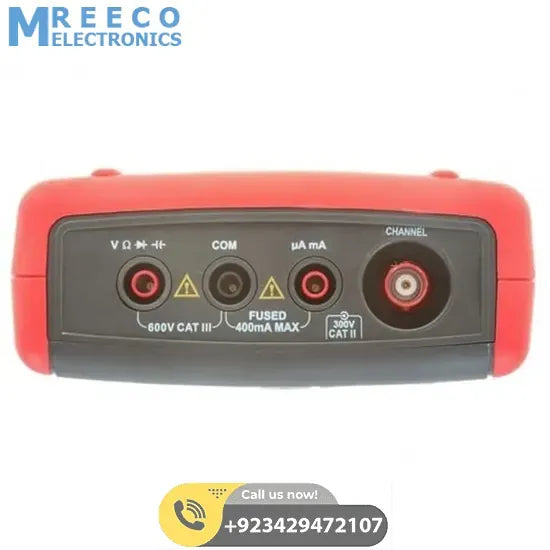

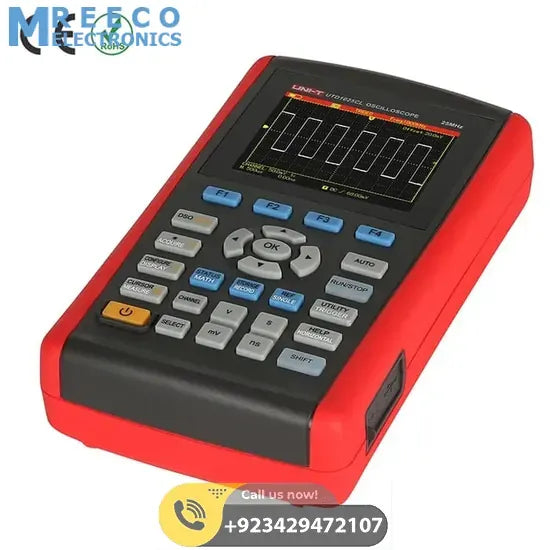

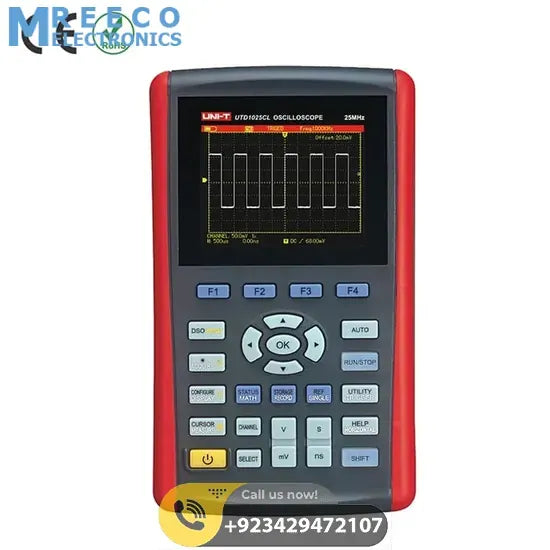

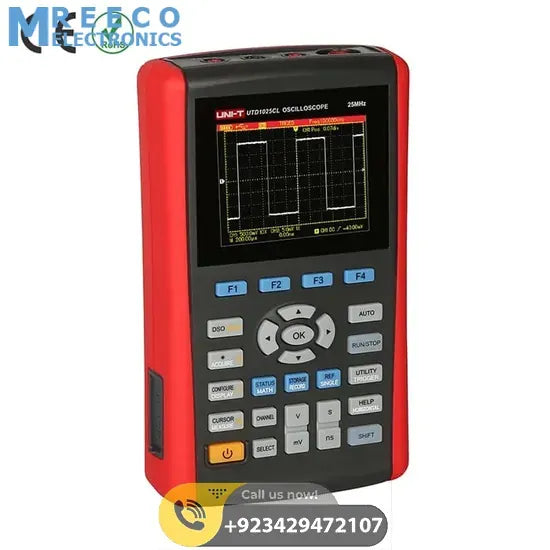

UNI T UTD1025CL Portable Handheld Digital Oscilloscope

Condition: New
Availability: In Stock
Advance Payment Only
Share:     Faceook Twitter

SKU: TMD1,Th6,KRT

Ask Price

An oscilloscope is a laboratory instrument commonly used to display and analyze the waveform of electronic signals. In effect, the device draws a graph of the instantaneous signal voltage as a function of time. UNI-T UTD1025CL handheld oscilloscope is a single channel portable device with 25MHz bandwidth and 200MS/s sampling rate. Portable Storage Oscilloscope is an economical instrument with the functions of oscilloscope and multimeter. Handheld Digital CRO is ergonomic, lightweight, universal instruments designed for engineers. Mini Pocket Oscilloscope is suitable for field testing and analyzing time-based voltage signals in a mobile environment

Features Of UNI-T UTD1025CL Digital Storage Pocket Oscilloscope:

  • Fully autoscale; vertical scale and time-based automatically adjusted with the signal and without any manual interference
  • Unique and powerful auto-setup, quick and accurate to set up for signals with any DC component
  • Wider voltage measuring range; coupled with 10×probe with attenuation up to 200V/div
  • Isolated USB for much safer communication
  • White and black display for your option, perfect for use outdoor with strong light
  • Intelligent local network software update
  • More than 8 hours of continuous battery operation

Specifications Of Handheld Digital Storage Oscilloscope Multitester DSO:

  1. Channels: 1
  2. Bandwidth: 25MHZ
  3. Sample Rate: 200MS/s
  4. Rise Time: ≤14ns
  5. Memory Depth: 12kpts
  6. Vertical Sensitivity: 5mV/div~20V/div
  7. Time-base Range: 10ns/div~50s/div
  8. Storage: Bitmap, Setup, Waveform
  9. Trigger Modes: Edge, Pulse, Video, Slope
  10. Interface: Mini USB

Multimeter Specifications:

  1. DC Voltage (V): 400.0mV/ 4.000V/ 40.00V/ 400.0V ±(1%+5)
  2. AC Voltage (V): 400.0mV/ 4.000V/ 40.00V/ 400.0V ±(1.2%+5)
  3. DC Current (A): 400.0μA/ 4000μA ±(1.2%+5)
  4. AC Current (A): 400.0μA/ 4000μA ±(2%+5)
    • (45Hz~400Hz): 40.0mA/ 400mA
    • 10A ±(2.5%+5)
  5. Resistance (Ω):
    • 400.0Ω/4.000kΩ/40.00kΩ/400.0kΩ/4.000MΩ ±(1.2%+5)
    • 40.00MΩ ±(1.5%+5)
  6. Capacitance (F):51.20nF/512.0nF/5.120μF/51.20μF/100μF ±(3%+5)
  7. Display Count: 4000

General Specifications:

  1. Power:
    • Lithium Battery: 7.4V 3600mAh
    • DC Adapter: 100~240V 50/60Hz input, 9V/4A Output
  2. LCD Size: 3.5 Inches TFT LCD, QVGA (320×240)
  3. Color: Red and Black
  4. Dimension: 199mm × 118mm × 49mm

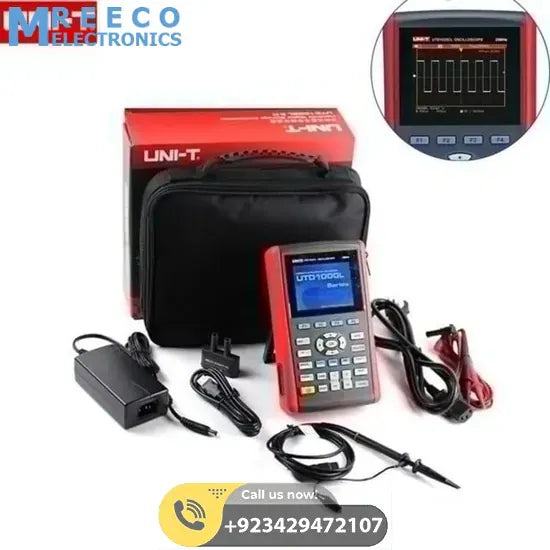

Package Include:

  • 1x Oscilloscope
  • 1x Test Lead, Probe (1×,10× switchable)
  • 1x Adapter
  • 1x Current-to-Voltage Convertor
  • 1x power cord
  • 1x USB cable
