SKU: 637736198182188502
Rs.2900
Rs. 3625

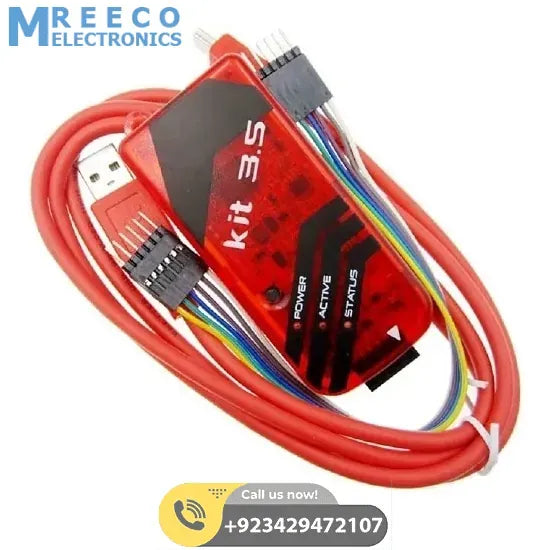

PICKIT3.5 PIC KIT3.5 PICKIT 3.5 Programmer is offline programming simulation PIC microcontroller chip. PICkit3 Microchip In-Circuit Debugger / Programmer uses in-circuit logic debugging built into each chip with flash memory to provide a low-cost hardware debugger and programmer and this pickit programmer is the 3.5 upgrade Kit, the best choice, after the upgrade advantages.
Features Of PICKit 3.5 USB PIC Programmer/Debugger Compatible:
- Offline programming never stops, so download more smoothly and completely conquer all versions of MPLAB, MPLAB X.
- Each PICkit3.5 with a single serial number, MPLAB X under, can operate more Kit3.5.
- Increase the external power supply current, the output voltage is more stable.
- Interface protection is more perfect.
- USB (Full speed 12 Mbit / s host PC interface).
- Real-time.
- MPLAB IDE compliant execution (free download from Microchip).
- Built-in over-voltage / short circuit monitor.
- Firmware is upgradeable from PC / Web download.
- Fully closed.
- Diagnostic LED ( power, busy, error).
- The program read/write and microcontroller memory data.
- Clear space with verification program memory.
- Freeze-peripherals at the breakpoint.
- Program up to 512K byte flash with the Programmer-to-Go.
- ICSP cable included.
Applications Of Pickit 3.5 PIC Programmer:
- Program PIC Microcontrollers.
- Debug PIC Microcontrollers.
- Code dumping in the production process.
- Flashing or Firmware update.
PicKit 3 Pinout:
- MCLR/Vpp: Connected to Master clear external reset pin of PIC to reset the MCU before programming
- VDD (Target): Target voltage of PIC, 5V or 3.3V
- Ground: Ground pin of the system
- PGD/ICS0PDAT: Program Data(PDG) is connected to the In-Circuit Serial Programming (ICSP) data pin
- PGC/ICSPCLK: Program Clock (PGC) is connected to In-Circuit Serial Programming (ICSP) clock pin
- No connection: This pin is reserved for future use
Tutorial Of PICKIT 3.5 Programmer Programming Adapter:
- https://microcontrollerslab.com/pickit3-upload-code-pic-microcontroller/

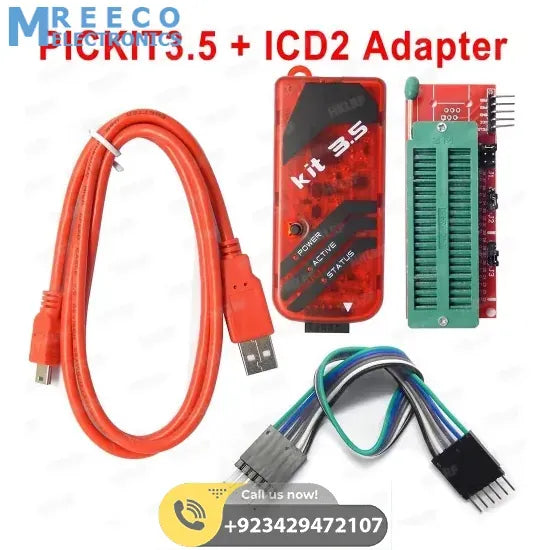

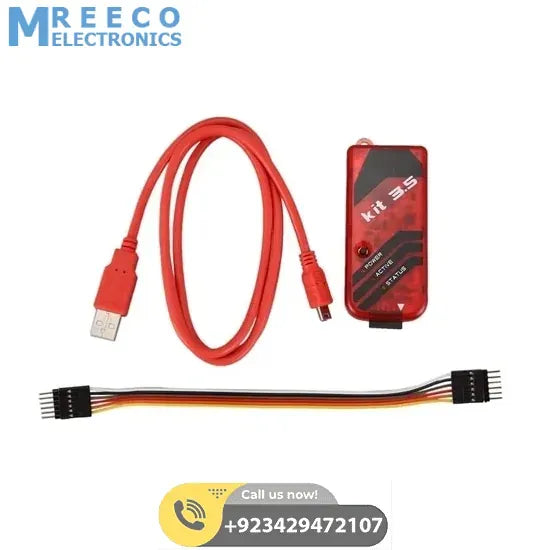

Package Includes:
- 1 x Pickit 3.5
- 1 x USB cable
- 1 x Jumper wire
