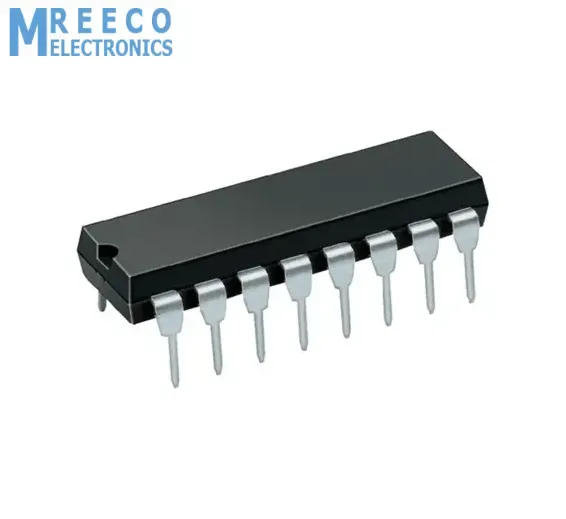

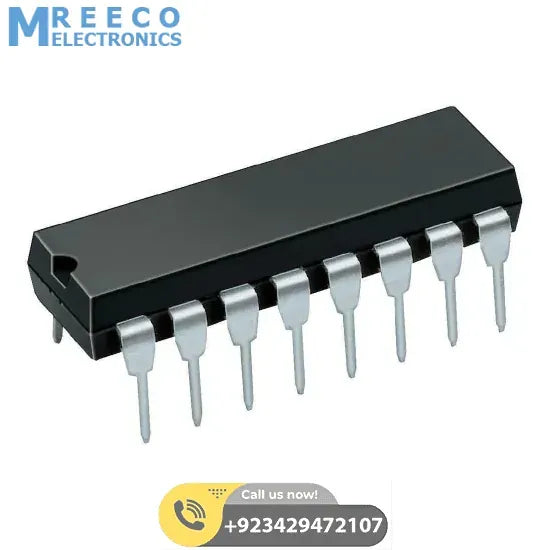

SG3524 Regulating Pulse Width Modulators

Condition: New
Availability: In Stock
Share:     Faceook Twitter

SKU: 637730992082177513

Rs.70 Rs. 88

The SG2524 and SG3524 incorporate on a single monolithic chip all the functions required for the construction of regulating power supplies inverters or switching regulators. They can also be used as the control element for high power-output applications. The SG3524 family was designed for switching regulators of either polarity, transformer-coupled dc-to-dc converters, transformerless voltage doublers and polarity converter applications employing fixed-frequency, pulse-width modulation techniques. The dual alternating outputs allow either single-ended or push-pull applications. Each device includes an on-chip reference, error amplifier, programmable oscillator, pulse-steering flip flop, two uncommitted output transistors, a high-gain comparator, and current limiting and shut-down circuitry.

• Complete PWM Power Control Circuitry. • Uncommitted Outputs for Singleended or Push Pull Applications. • Low Standby Current 8mA Typical. • Operation Up to 300KHz. • 1% Maximum Tempurature Variation of Reference Voltage.
