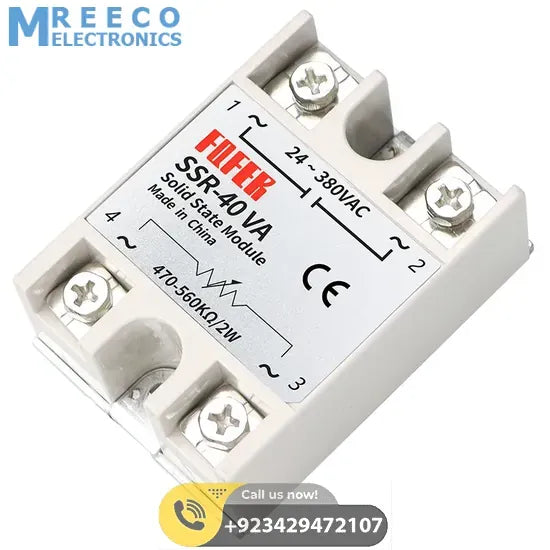

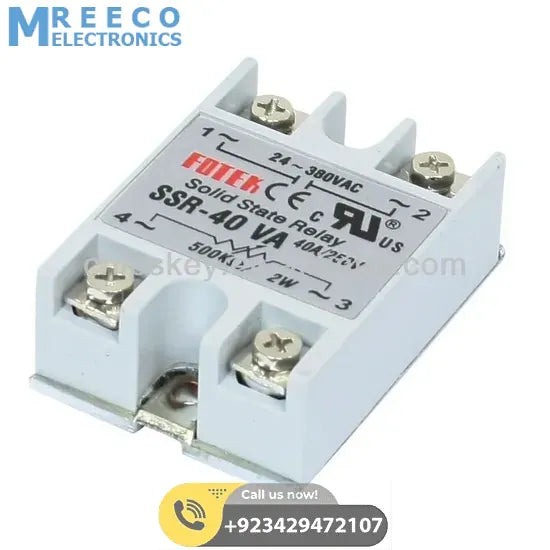

Solid State Relay 40VA

Condition: New
Availability: In Stock
Share:     Faceook Twitter

SKU: 637738999725978695

Rs.790 Rs. 988

Solid State Relay

40A

is an electronic switching device that switches on or off when a small external voltage is applied across its control terminals. Solid State Relay

40A

consists of a sensor which response to an appropriate input (control signal). Solid State Relay

40A

which switches power to the load circuitry, and a coupling mechanism to enable the control signal to activate this switch without mechanical parts.

Specifications:

Model

SSR-40VA

Load current

40A

Load voltage

24-380VAC

Control voltage

1MΩ 1/2W / 220V AC

On state leakage current

≤2mA

Off-state time

≤10mS

Dielectric strength

2500VAC

Insulation resistance

1000MΩ500VDC

Ambient temperature

-30°c ~ 75°c

Mounting method

bolting

Indicator

No

Indicator

Weight

135g

Model

number

SSR-VA series

Rated input control voltage

Variable resistor

Input resistance

470KΩ 2W potentiometer

Wattage of VR

1/4 W min

Pick-up or drop-out time

10ms max

Control type

Phase control

Input-ON indication

LED

On-state leakage current

2mA max

On-state voltage drop at Imax

1.5Vac

Matched heat sink

40A

: FHSI01-50, ≤60A: FHSI02-50, ≤120A: FHSI03-100

Matched thermal grease

HZ-KS101

Dielectric strength

2500VAC

50/60Hz for 1 minute

Insulation resistance

500 MΩ min at 500 VDC

External dimensions

62x45x23.5mm

Terminals

Screw

Operational temperature

-30 to 75℃

Operational humidity

95% max no condensation

Solid State Relay

40A

Advantages:
  1. Special general circuit design for large current, high-quality circuit board
  2. Use copper terminals for big current, increase the safety of connection and use
  3. Use a pure aluminum base plate, with better performance and long life.
  4. Hign-end flame-retardant PV plastic, thermostability can up to 70-80 degrees.
Buy Solid State Relay

40A

at Pakistan's Best Online Store at cheap price. Here you get the best SSR modules. We Deliver in Gujranwala, Karachi, Lahore, Islamabad, Rawalpindi, Multan, Quetta, Faisalabad and all Over Pakistan

Package Includes:

1 x

SSR-40VA

solid state relay
