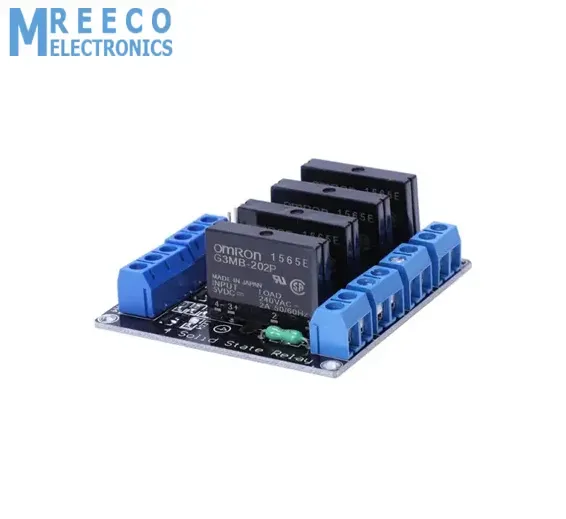

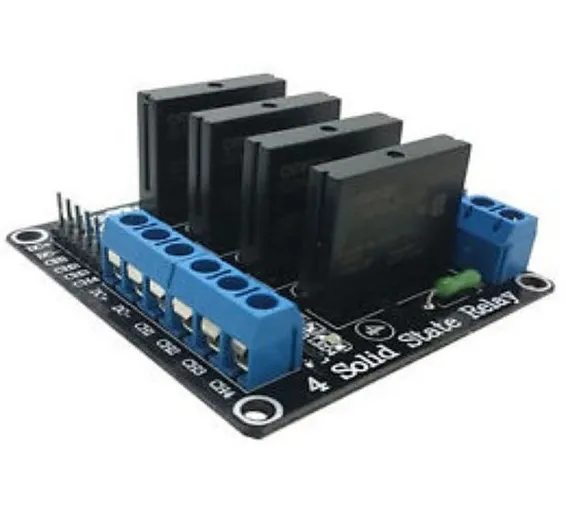

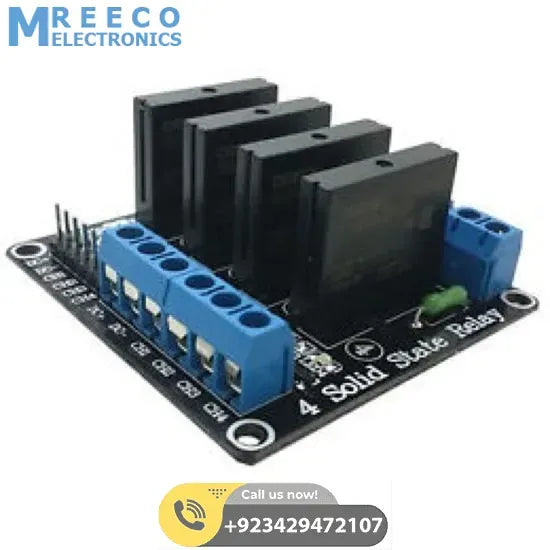

Solid State Relay SSR Module 4 Channel G3MB-202P
SKU: 637720679064089669
A solid-state relay (SSR) is just what it sounds like; an IC that acts like a mechanical relay. They allow you to control high-voltage AC loads from lower voltage DC control circuitry. They accomplish this by using infrared light as the ‘contact,’ a solid-state relay is really just an IR LED and a photometric sealed up into a little box. This is 4 Channel 5V Solid State Relay Module Board OMRON for Arduino
Compares with the traditional mechanical relay, the Solid State Relay (SSR) has many advantages: it has a longer life, with a much higher turn on/off speed and no noise. Besides, it also has better resistance to vibration and mechanical shock and better moisture-proof performance. This Solid State Relay Module is based on Omron G3MB, to control current up to 2A@240VAC, can be widely used in various areas such as computer peripheral interfaces, temperature/speed light adjustment, servo control, petrochemical, medical instrumentations, financial devices, coal, meters, traffic signals, etc.
Solid State Relay SSR Module 4 Channel G3MB-202P Features :
- 4-Channel Solid-State Relay
- Rated output load: 100V ~ 240V AC (50Hz/ 60Hz) 2A per channel
- Rated input power: 5V, 160mA (all channels ON)
- Triggered at Low level (or Active Low)
- Separate LEDs showing the status of each Solid-State Relay
- Input control signal:
- Low Signal (Solid-State Relay ON / CLOSE), 0V- 2V or GND
- High Signal (Solid-State Relay OFF / OPEN), 3.3V - 5.0V or leave it floating
- Dimension: 57mm x 55mm x 25mm
- Offer two types of input control terminals: Header pin and Terminal Block

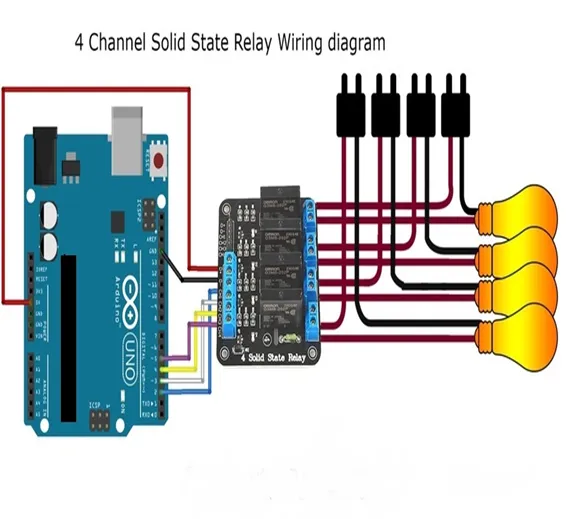

Module interface:
- DC +: connected to a positive power source (supply power according to the relay voltage)
- DC -: connected to a negative power source
- CH1: 1-channel relay module signal triggering end (effective at a high level)
- CH2: 2-channel relay module signal triggering end (effective at a high level)
- CH3: 3-channel relay module signal triggering end (effective at a high level)
- CH4: 4-channel relay module signal triggering end (effective at a high level)
Buy Solid State Relay Module 8 Channel 5V for Arduino at Pakistan's Best Online Store at cheap price. Here you get the best SSR modules. We Deliver in Gujranwala, Karachi, Lahore, Islamabad, Rawalpindi, Multan, Quetta, Faisalabad and all Over Pakistan
Package Include:
- 1x Solid State Relay SSR Module 4 Channel G3MB-202P
