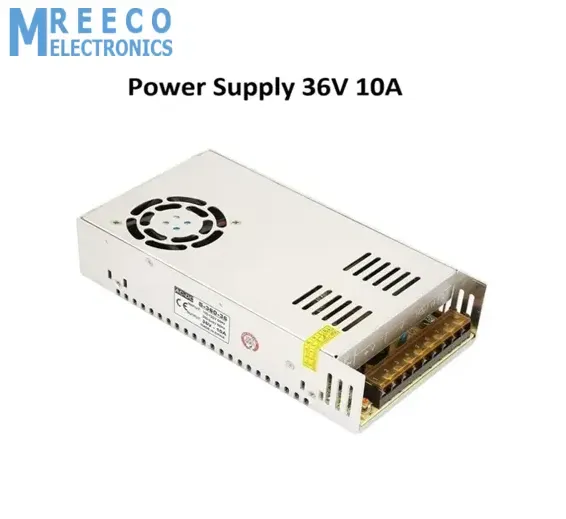

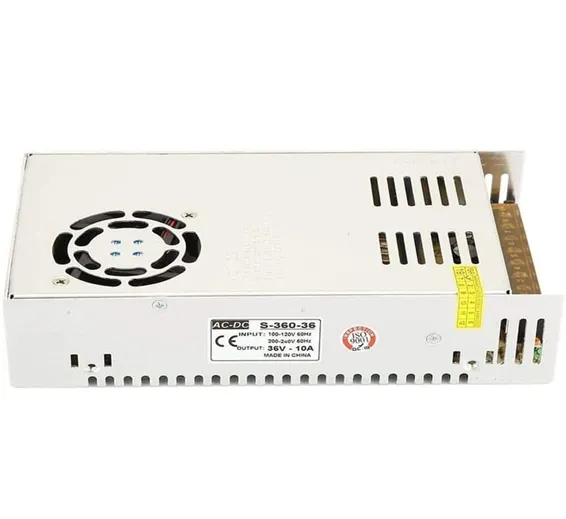

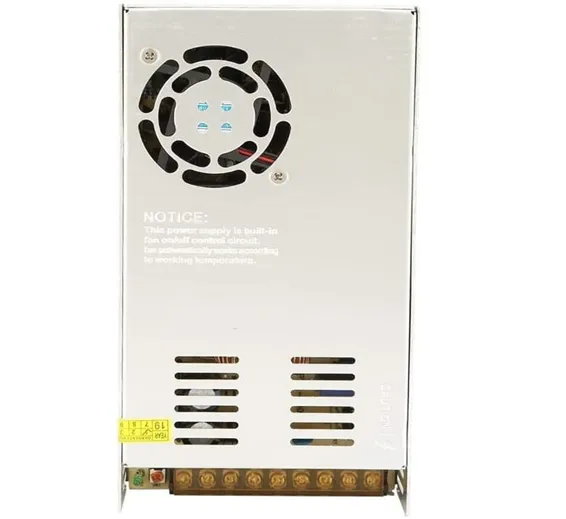

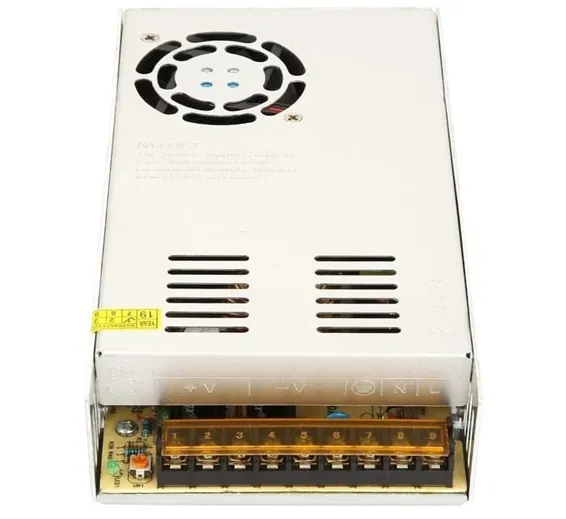

Switching Power Supply SMPS 36V 10A

Condition: New
Availability: Out Of Stock
Share:     Faceook Twitter

SKU: 637739621219614481

Rs.6000 Rs. 7500

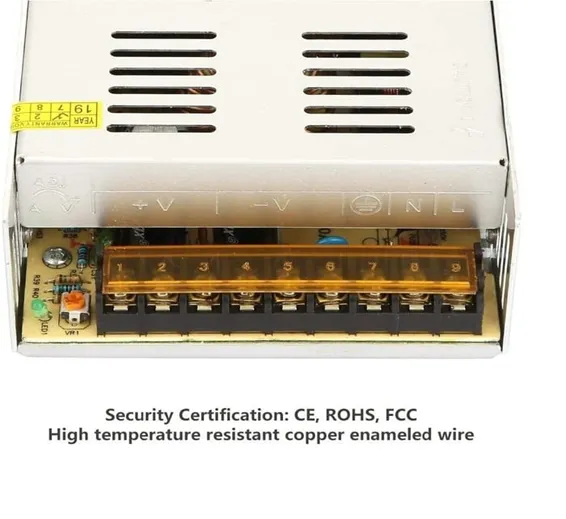

A 36v switched-mode power supply (SMPS) is an electronic circuit that converts power using switching devices that are turned on and off at high frequencies, and storage components such as inductors or capacitors to supply power when the switching device is in its non-conduction state. A switched-mode power supply is also known as a switch-mode power supply or switching-mode power supply. The 36V 10A SMPS Adapter is made of High-temperature resistant copper enameled wire and adopts a double winding U-shaped iron core, which has a strong anti-interference ability and high stability.10A Switching Power supply For

  1. LED Lighting
  2. has High intelligent protection with short circuit protection, overload protection, and overvoltage protection

    Features Of 5V Switching Dc Power Supply:

    • High working efficiency and low operating temperature.
    • Soft-start can reduce the impact of effective AC input.
    • Compact size, lightweight.
    • Wide input voltage range.
    • Install with EMI filter, minimum wave.
    • Low output ripple and noise
    • Protection function: Overload protection, Short circuit protection
    • It recovers automatically after protection
    • The device is great for Home Appliances as a switching power supply.

    Specifications Of 36V 360W SMPS For LED lighting:

    1. Input voltage: 110V-220V AC
    2. Output voltage: 36V DC
    3. Output current: 10A
    4. Output power: 360W
    5. Protection function: Overload protection, Short circuit protection
    6. Security Certification: CE, ROHS, FCC
    7. Working Humidity and Temperature: -15 degrees Celsius - +70 degrees Celsius;20% - 90% RH

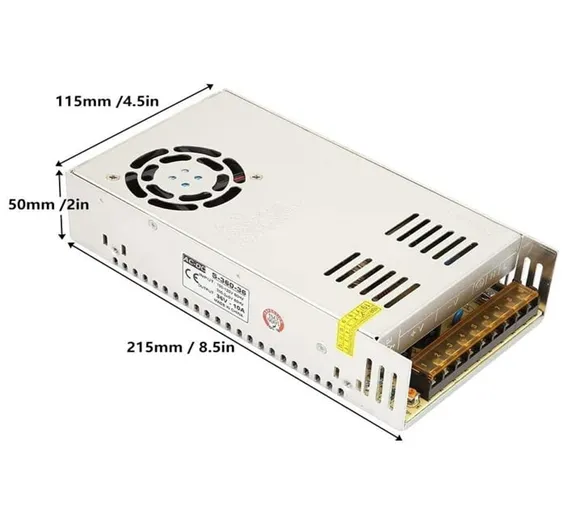

    8. Product dimension: 215*115*50mm / 8.5*4.5*2in

    Applications Of LED SMPS 36v 360w :

    1. LED Lighting
    2. RGB LED Strip
    3. SMD
    4. CCTV Cameras
    5. Street Light
    6. Lawn Lamp
    7. Advertising Article Screen


    • The power supply is 100% full, but some power is lost when wiring. Therefore, it is recommended to use 80-85% of the power.
    • The input voltage should be within the specified working range.
    • It is strictly forbidden to use in a high-temperature environment, the power supply should have good heat dissipation space and environment.
    • Do not install the power supply on flammable materials, keep away from gas stations or places where smoking is prohibited.

    Package Include:

    • 1x Switching Power Supply SMPS 36V 360W 10A

    Buy Switching Mode Power Supply SMPS 36V 10A 360W adapter for LED lighting at Pakistan's Best Online Store at cheap price. Here you get a wide range of SMPS. We Deliver in Gujranwala, Karachi, Lahore, Islamabad, Rawalpindi, Multan, Quetta, Faisalabad and all Over Pakistan
