TB6560 3A Stepper Motor Driver Module CNC Single Axis Controller Module

Condition: New
Availability: In Stock
Share:     Faceook Twitter

SKU: 637736399675417533

Rs.950 Rs. 1188

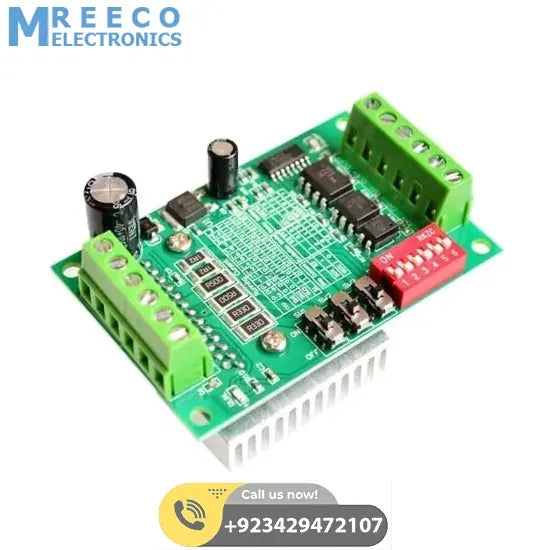

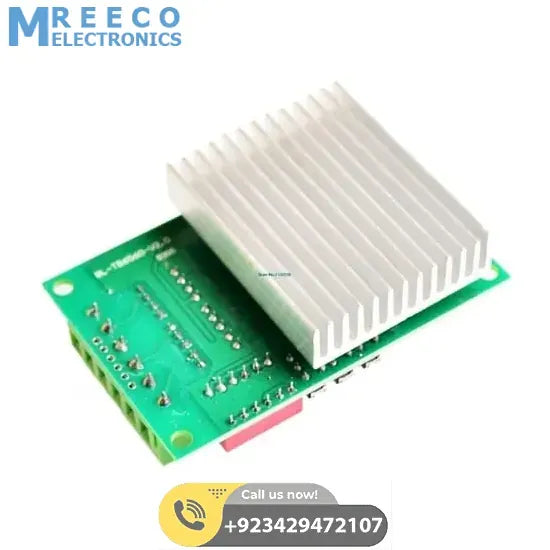

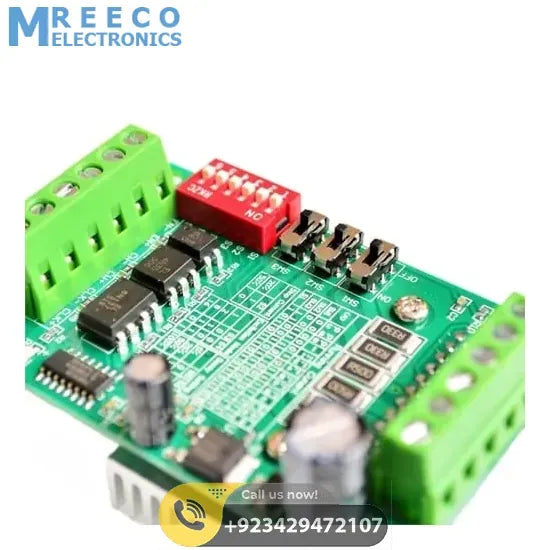

The TB6560 Driver Board 3A CNC Router Single 1 Axis Controller Stepper Motor driver board is for axis control with Input signal high-speed optocoupler isolation, the large heat sink to ensure good heat dissipation. Stepper motor driver is Semi-flow mode adjustable, semi-flow current adjustable, with a variety of semi-flow model and semi-flow current setting functions. Single Axis Controller is very easy to use requires no special instructions. The module features Semi-flow mode adjustable, semi-flow current adjustable, not the general design on the market, with a variety of semi-flow model and semi-flow current setting functions. This stepper motor Controller Board is featuring a TB6560AHQ new original chip. The TB6560AHQ has a low voltage shutdown, overheating stop, and overcurrent protection circuit to ensure optimal performance. The TB6560 stepper motor control circuit is the most commonly used current circuit, which can control a 2 phase motor (10 – 35VDC) with a maximum output of 3A. The TB6560 stepper motor control circuit is used for stepper motor control, CNC machine applications, or precision mechanical systems.

Features Of TB6560 3A Stepper Motor Driver board CNC Single-axis Controller Module:

  • Current level by adjustable to meet your various application requirements.
  • Automatic semi-flow adjustable.
  • Using 6N137 high-speed optical coupling to ensure high speed without losing a step.
  • Board printed setup instructions.
  • Using thick fine-toothed radiator, good heat dissipation.
  • For 42,57,86 Stepper within 3A 2/4 -phase / 4 wire / 6 wire stepper motor, not fit for more than 3A stepper motor.
  • Excitation Mode: synchronizing, half step, 1/8 step, 1/16 step, a maximum of 16 segments.
  • Automatic half-decay.

Specifications Of TB6560 Driver Board 3A CNC Router Single Axis Controller Stepper Motor:

  1. Operating Voltage(VDC) = 10 to 35
  2. Nominal Voltage (V) = 24
  3. Driver Chip ( IC ) = TB6560AHQ
  4. Rated Output Current (A) = 3
  5. Board Dimensions = L 5cm x W 7.5cm x L 3.5cm
  6. Board Weight = 95gm

Package Include:

  • 1 x TB6560 3A Stepper Motor Driver Module
