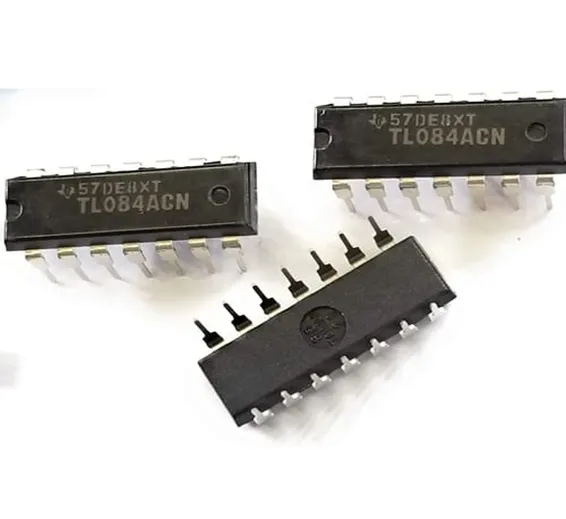

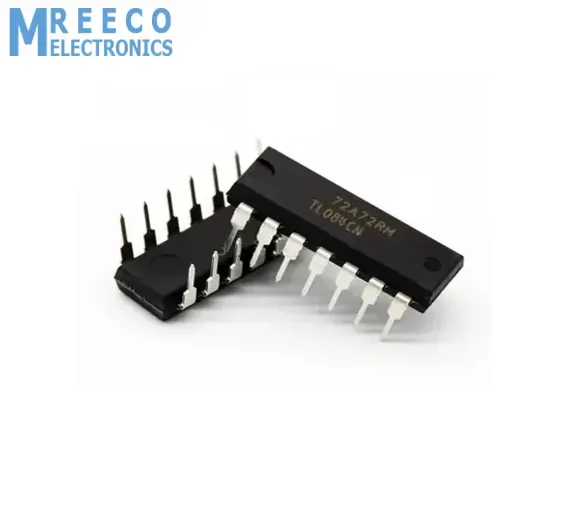

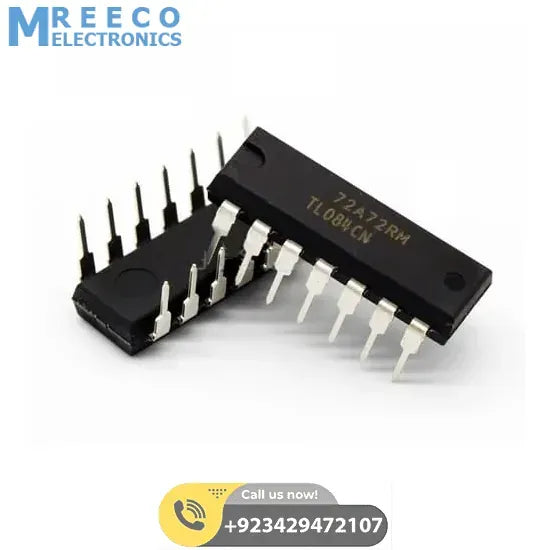

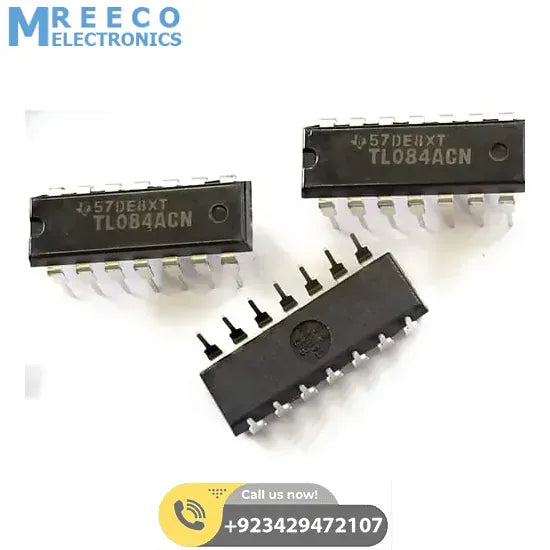

TL084 Quad Operational Amplifier IC

Condition: New
Availability: In Stock
Share:     Faceook Twitter

SKU: 637725039477893870

Rs.60 Rs. 75

The TL084CN JFET-input operational amplifier family is designed to offer a wider selection than any previously developed operational amplifier family. Each of these JFET-input operational amplifiers incorporates well-matched, high-voltage JFET and bipolar transistors in a monolithic integrated circuit. The devices feature high slew rates, low input bias and offset currents, and low offset-voltage temperature coefficient.

Features:

  • Output Short-Circuit Protection
  • Low Total Harmonic Distortion
  • Latch-Up-Free Operation
  • Wide Common-Mode and Differential Voltage Ranges
  • Low Power Consumption
  • High Input Impedance: JFET Input Stage

Specifications:

  1. Supply Maximum Voltage: 36V
  2. Number of Channels: 4 Channels
  3. Gain Bandwidth Product: 3 MHz
  4. Slew Rate: 13 V/us
  5. Common Mode Rejection Ratio: 70 dB to 86 dB
  6. Input Bias Current: 200 pA
  7. Input Offset Voltage: 6 mV
  8. Supply Minimum Voltage: 7 V
  9. Operating Supply Current: 1.4 mA

Datasheet
