UNI-T Industrial True RMS Digital Multimeter UT171B

Condition: New
Availability: In Stock
Advance Payment Only
Share:     Faceook Twitter

SKU: TMD1,Th6,KRT

Ask Price

Digital multimeter of the UT171 series is with high precision, high reliability, high safety, automatic range of characteristics and now available in Pakistan. UT-171B meter is for accurate measurement of the voltage signal at 100 kHz broadband conditions, square wave signal, conductivity and other signals. UT 171 B best electric multimeters, product chipsets the start mode VFC, the internal will go through a filter circuit in particular high-frequency interference filters, ensuring accurate measurement data. You can apply occasions with VFC frequency voltage from this true RMS meter, full-scale overload protection and unique design, a more remarkable generation of practical electrical measurement instruments. UT-171B RMS multimeter can be used to detect various types of universities, foundry, telecommunications, manufacturing, oil, defence, electricity, electricity, circuits, electrical equipment, maintenance and repair of the ideal tool.

Features Of Multimeter UNI-T UT171B:

  • Functions: measuring AC / DC current, AC / DC voltage, resistance, circuit on-off, conductivity, diode, capacitance, frequency, induced voltage, 4 - 20mA loopback test, temperature, etc.
  • True RMS VT - WLCD display: maximum display up to 60000 counts
  • Overload protection voltage between input terminal and grounding is 1000V
  • Auto shutdown and auto range function, power save and convenient
  • With data-storage, misoperation alarm function and USB / Bluetooth interface configuration
  • Operation altitude: 0 - 2000m
  • For users in design, research and repair needs
  • Built-in lithium-ion battery

Specifications Of Digital Multimeter UNI-T UT171B For Electronics:

  1. DC Voltage: 600mV/6V/60V/600V/1000V
  2. DC Voltage Accuracy: ±(0.025%+5)
  3. AC Voltage: 600mV/6V/60V/600V/1000V
  4. AC Voltage Accuracy:±(0.4%+40)
  5. DC Current: 600μA/6000μA/60mA/600mA/6A/10A
  6. DC Current Accuracy:±(0.15%+10)
  7. AC Current: 600μA/6000μA/60mA/600mA/6A/10A
  8. AC Current Accuracy:±(0.75%+20)
  9. Resistance: 600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ
  10. Resistance Accuracy: ±(0.05%+2)
  11. Capacitance: 6nF/60nF/600nF/6μF/60μF/600μF/6mF/60mF
  12. Capacitance Accuracy: ±(2.5%+40)
  13. Admittance: 60nS
  14. Admittance Accuracy: (±2.5%+40)
  15. Frequency: 10Hz~10MHz
  16. Frequency Accuracy: ±(0.01%+5)
  17. Temperature: -40°C~1000°C
  18. Temperature Accuracy: ±(1%+3°C) only up to 230°C with standard accessory thermocouple
  19. Display Count: 60000
  20. Auto/Manual Range: Yes
  21. True RMS: Yes
  22. Bandwidth: 100kHz
  23. AC+DC: Yes
  24. 4-20mA Loop: 0~100%
  25. LoZ (AC): Around 3kΩ
  26. Diode: Around 3V
  27. Continuity Buzzer: Yes
  28. Duty Cycle: Yes
  29. VFC: Yes
  30. NCV: Yes
  31. Data Hold/MAX/MIN: Yes
  32. Relative Mode: Yes
  33. Peak Hold: Yes
  34. Data Storage: 9999
  35. USB Interface: Yes
  36. EBNT Display: Yes
  37. LCD Backlight: Yes
  38. Analogue Bar Graph: 31
  39. Rechargeable: Yes
  40. Mis-plug Alarm: Yes
  41. Low Battery Indication: Yes
  42. Auto Power Off: Yes
  43. Input Protection: Yes
  44. Input Impedance for DCV: Around 10MΩ
  45. Power: 7,4V 1800mAh Li-Ion Battery
  46. LCD Size: 70.6mm x 35.3mm
  47. Weight: 384g
  48. Size: 206x95x55mm

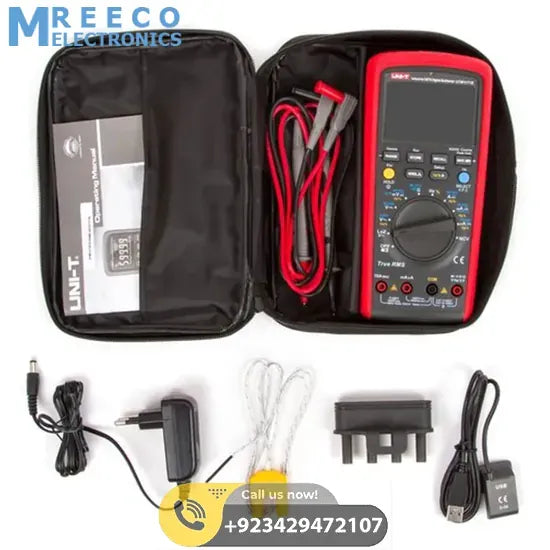

Package Include:
  • 1 x UNI-T Industrial True RMS Digital Multimeter UT171B
  • 2 x Test Leads
  • 1 x Point Contact Temperature Probe
  • 1 x USB Interface Cable
  • 1 x CD with software
  • 1 x Power Adaptor
