Multimeters

UNI T True RMS Digital Multimeter UT195DS

Condition: New
Availability: In Stock
Advance Payment Only
Share:     Faceook Twitter

SKU: RAWLIXUNI

Ask Price

UT195 series are Handheld industrial digital multimeters with IP65 and 2m drop-proof. Compare with traditional multimeters, UT195's troubleshooting capability, resolution, and precision are improved to find issues related to motor drive, factory equipment maintenance, electrical distribution, and repair, etc. Professional Palm Size Multimeter UT195D is exquisitely designed and easy to operate, can be applied in mine, oilfield and other harsh environments. Portable Pocket Size Multitester has an Adopt 6000-count LCD screen, automatic LCD backlight is controlled by a light sensor (function can be turned off).UNI-T Multimeter UT195DS Support for LoZ voltage test for ghosting voltage measurement and use 2 probes to measure motor phase sequence.

Features Of Professional RMS Digital Multimeter UT195DS:

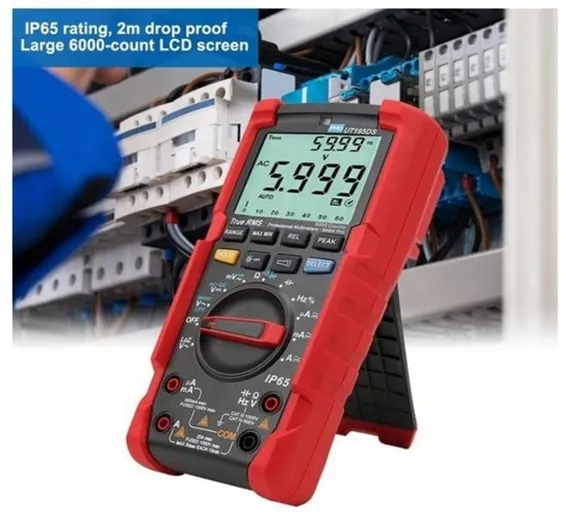

  • IP65 rating, 2m drop-proof, CAT III 1000V, CAT IV 600V
  • Large 6000-count LCD screen
  • 5 times/s sampling rate
  • True RMS
  • ACV 750V 5kHz bandwidth

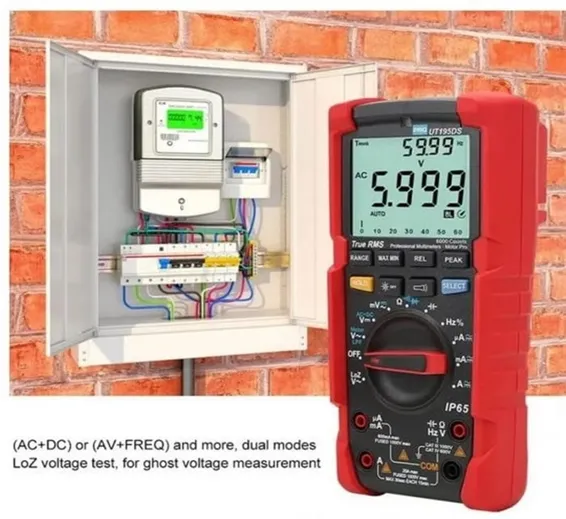

  • (AC+DC) or (AV+FREQ) and more, dual modes
  • Flashlight
  • Auto LCD backlight controlled by the light sensor (feature can be turned off)
  • LoZ voltage test, for ghost voltage measurement
  • Motor phase sequence measurement with 2 probes
  • 20A current measurement (max 30 seconds)
  • 31 analog bar
  • Low pass filter, 1kHz 3dB attenuation

Specifications Of Portable Industrial Multitester UT195DS:

  1. Power: 9V Battery
  2. LCD Size: 66mm x 51mm

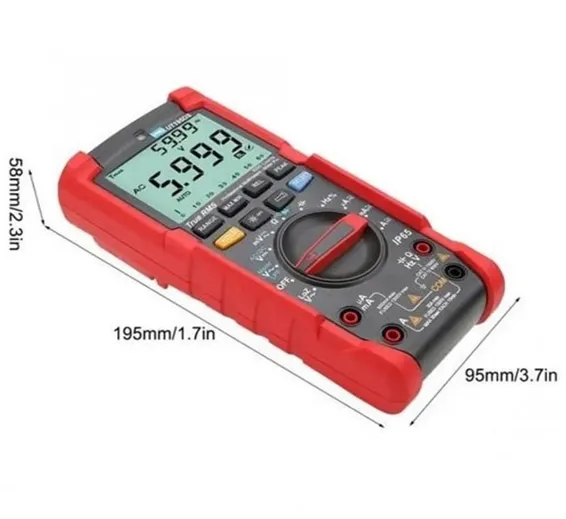

  3. Product Size: 195mm x 95 mm x 58mm
  4. Color: Red and grey
  5. DC Voltage (V):
    •
    • Range:600mV-1000V
    •
    • Accuracy: ±(0.5%+3)
  6. AC Combined DC (AC+DC):
    •
    • Range:6.000V-600V
    •
    • Accuracy: ±(1.5%+4)
  7. AC Voltage (V):
    •
    • Range: 600mV-750V
    •
    • Accuracy: ±(0.7%+3)
  8. LoZ ACV:
    •
    • Range: 600.0V
    •
    • Accuracy ±(2.0%+3)
  9. DC Current (A):
      •
      •
      • Range: 600.0μm-20A
      •
      • Accuracy: ±(0.8%+3)
    • AC Current (A):
        •
        •
        • Range: 600.0μm-20A
        •
        • Accuracy: ±(1.0%+3)
      • Resistance (Ω):
        •
        • Range: 600.0Ω-60.00MΩ
        •
        • Accuracy: ±(0.8%+2)
      • Capacitor:
        •
        • Range: 6.000nF-60.00mF
        •
        • Accuracy: ±(3%+5)
      • Frequency:
        •
        • Range: 60.00Hz-10.00MHz 60.00Hz-40.00MHz
        •
        • Accuracy: ±(0.1%+4)
      • Duty Ratio: 0.1%-99.9% ±(2.0%+5)
      • Temperature℃: -40-1000℃
      • Temperature℉: -40-1832℉

Package Include:

1x UNI T

  • True RMS
  • Digital Multimeter UT195DS

    Best Online Shopping website for UNI T

  • True RMS
  • Digital Multimeter UT195DS Pocket Size Meter DC AC Voltage Current Meter Tester in cheap price in Karachi, Lahore, Islamabad, Rawalpindi, Peshawar, Multan, Quetta, Faisalabad and all over Pakistan.
