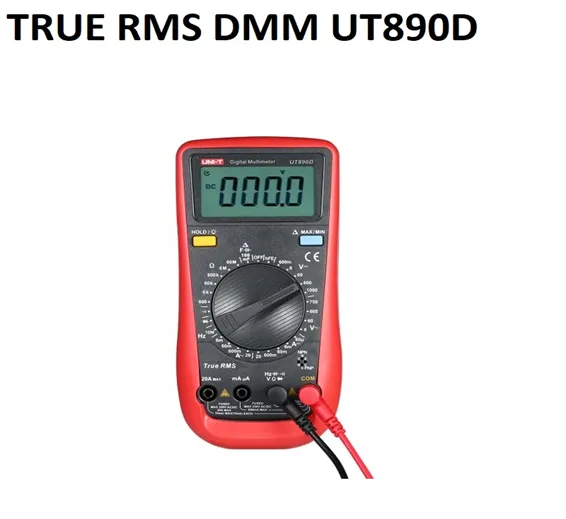

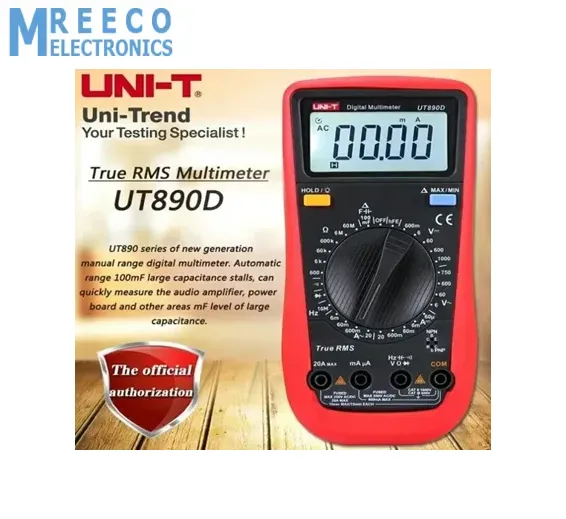

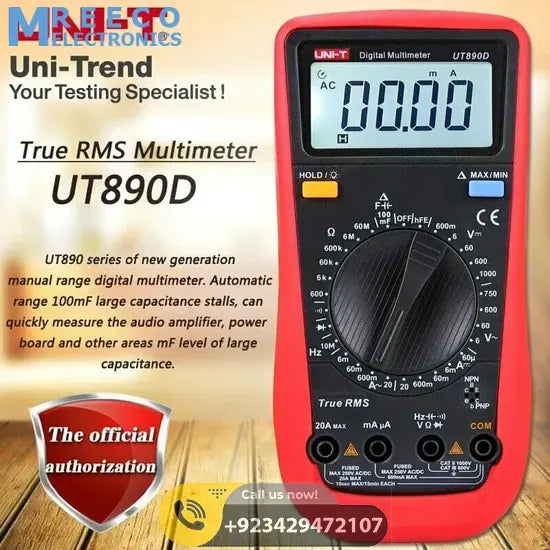

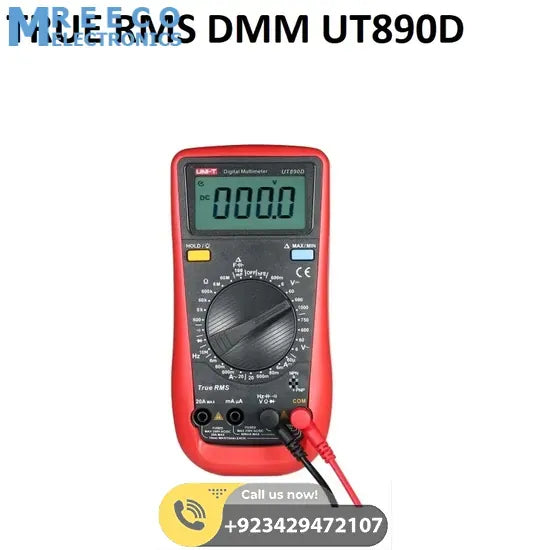

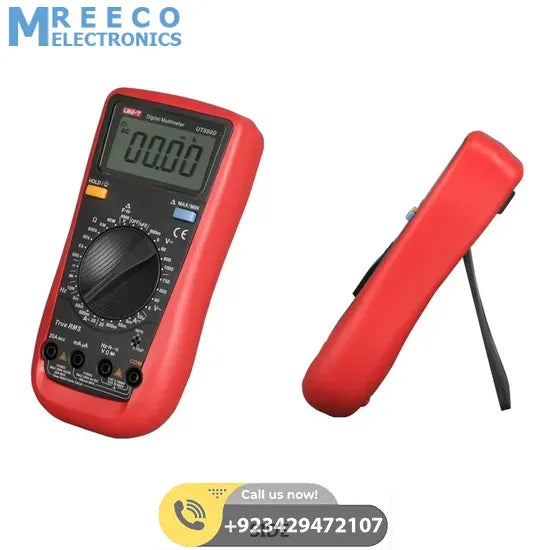

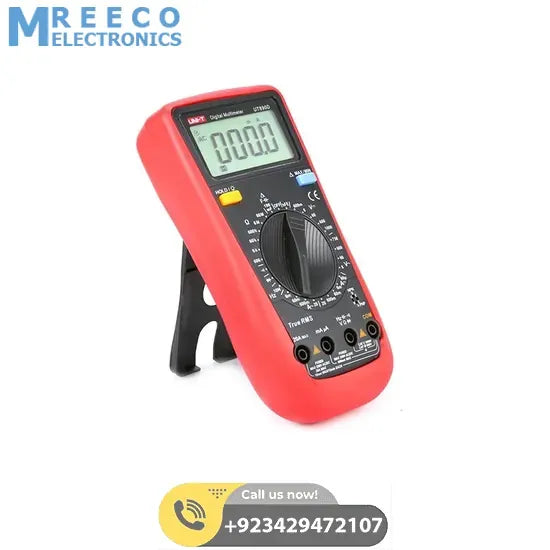

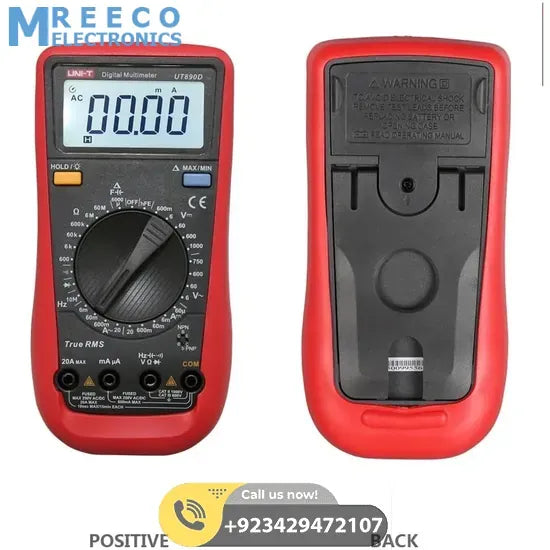

UNI T True RMS Digital Multimeter UT890D

Condition: New
Availability: In Stock
Advance Payment Only
Share:     Faceook Twitter

SKU: TMD1,Th6,KRT

Ask Price

A digital multimeter is a test tool used to measure two or more electrical values principally voltage (volts), current (amps) and resistance (ohms). UNI T True RMS DMM is a standard diagnostic tool for technicians in the electrical/electronic industries. The UNI-T UT890D 6000-count true RMS digital multimeters are designed with a large LCD display. UNI-T Digital Multimeter UT890 is ergonomic design, comfortable and solid. UT890D digital multimeter is a cheap accurate multimeter for very tight budgets.

Features Of True RMS DMM UT890D:

  • True RMS measure for Current and Voltage. 6000 Counts display range.
  • It has an LCD backlight
  • REL function for Capacitance measuring. Minimum resolution rate 1pF, Maximum measuring range up to 6000uF.
  • Overload protection up to 600V for Capacitance, Resistance, Buzzer, Diode, and Frequency measuring.
  • High accurate frequency measuring function. Minimum resolution rate 0.001Hz, Unique (MAX-MIN) value calculate function.
  • Frequency respond is (40Hz~1KHz) (Sine Wave, triangular wave)
  • Data hold, backlight, Auto-off. One 9V6F22 Battery Included.

Specification OF Digital Multimeter UT890D:

  1. Input Impedance for DC Voltage Measurement: 10M
  2. Power supply: 9V6F22 Battery (Battery Included)
  3. LCD screen dimension: 63mm*29mm
  4. Safety grade: CE / CAT.II 1000V / CAT.III 600V
  5. External dimension: 186mm*91mm*39mm
  6. DC voltage:
    • 600.0mV: ±(0.5%+4)
    • 6.000V/60.00V/600.0V: ±(0.5%+2)
    • 1000V: ±(0.7%+10)
  7. AC voltage :
    • 6.000V/60.00V/600.0V: ±(0.8%+3)
    • 750V: ±(1.0%+10)
  8. DC Current:
    • 60.00uA/6.000mA/60.00mA: ±(0.8%+8)
    • 600.0mA: ±(1.2%+5)
    • 20A: ±(2.0%+5)
  9. AC Current:
    • 6.000mA/60.00mA: ±(1.0%+12)
    • 600.0mA: ±(2.0%+3)
    • 20A: ±(3.0%+5)
  10. Resistance:
    • 600.0Ω: ±(0.8%+5)
    • 6.000kΩ¸/60.00kΩ¸/600.0kΩ¸/6.000MΩ: ±(0.8%+3)
    • 60.00MΩ:± (1.0%+25)
  11. Capacitance:
    • 6.000nF: ±(5.0%+35)
    • 60.00nF ~ 600.0uF: ±(2.5%+20)
    • 6000uF: ±(5%+10)
  12. Frequency:
    • 9.999Hz ~ 9.999MHz: ±(0.1%+5)
  13. Frequency Measuring range:
    • 10Hz~10MHz (Auto range)
    • ≤100kHz: 100mVRMS≤ Input ≤30VRMS,
    • >100kHz~1MHz: 200mVRMS ≤ Input ≤ 30VRMS,
    • >1MHz: 600mVRMS ≤ Input ≤ 30VRMS

Package includes:

1x UNI T True RMS Digital Multimeter UT890D Best Online Shopping website for UNI T UT890 Digital Multimeter AC DC Voltmeter Ammeter Resistance Capacitance Tester in cheap price in Karachi, Lahore, Islamabad, Rawalpindi, Sukkur, Peshawar, Multan, Quetta, Faisalabad and all over Pakistan.
