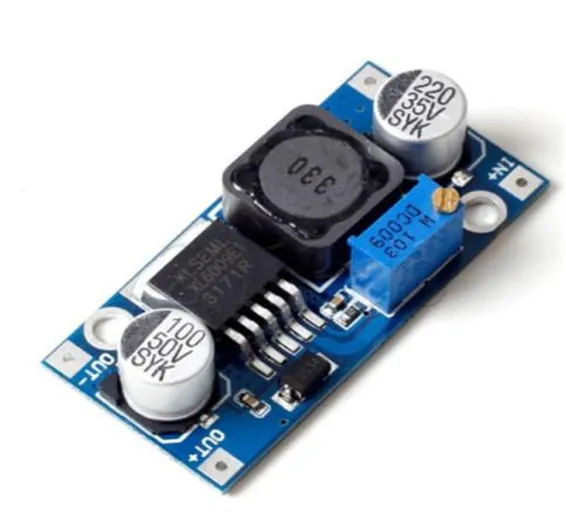

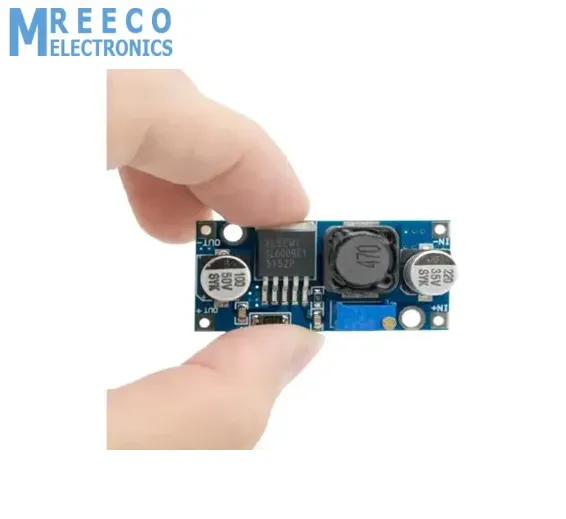

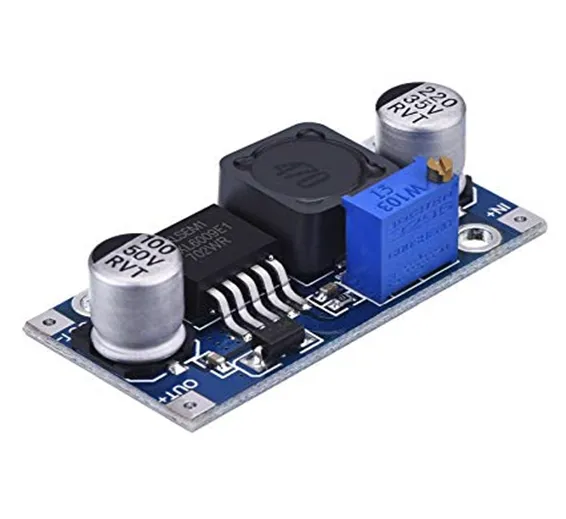

This XL6009 DC to DC Step-up converter module is a non-isolated step-up (boost) voltage converter featuring adjustable output voltage and high efficiency. XL6009 module uses the second generation of high-frequency switching technology XL6009E1 core chip performance than the first generation technology LM2577. XL6009 boost module at a lower cost, superior performance. It equips 4A high-efficiency MOSFET switches, so as to provide a conversion efficiency of up to 94%.
Pins Of XL6009:
- Module properties: unfenced step-up (BOOST)
- The input voltage: 3-32 v
- Continuous adjustable output voltage: 5v-35 v
- Input current: 4 a (Max), no-load 18 ma
- Module size: 44.7 (mm) x21.7 (mm)
- Input mode: IN + input level is, the IN – negative input
- Output mode: OUT + output level is, the OUT – output is negative
- Conversion efficiency: < 94% (the lower the pressure difference, the greater the efficiency)
- Output ripple: 50 mv (the bigger the higher the voltage, current and ripple)
Here you get xl6009 boost converter module in reasonable price in karachi, lahore, islamabad, rawalpindi, peshawar, quetta, multan and all over pakistan. Online Shopping website for xl6009 boost converter module.
Package Includes :
- 1 x XL6009 DC-DC Step-up converter
