XL7015 DC-DC Buck Converter Step Down Module 5V-80V Wide Voltage Input 7005A Super Than LM2596 In Pakistan

Condition: New
Availability: Out Of Stock
Share:     Faceook Twitter

SKU: 637720641901713828

Rs.250 Rs. 313

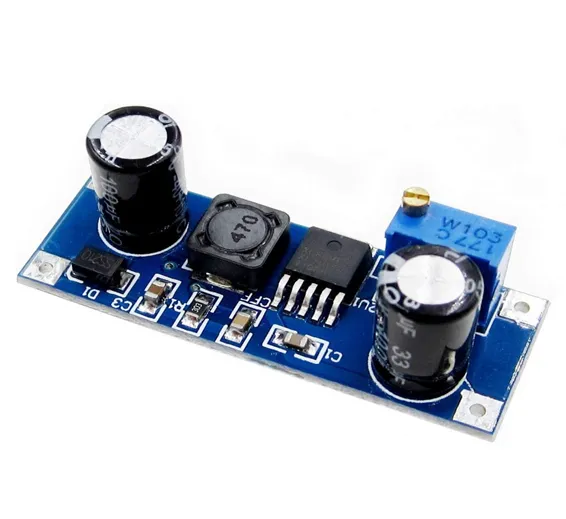

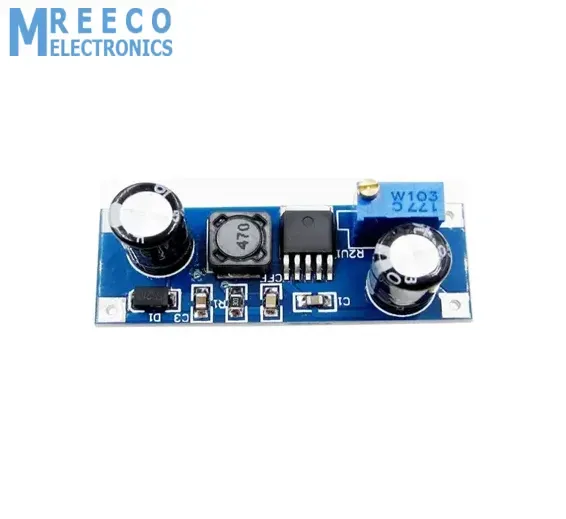

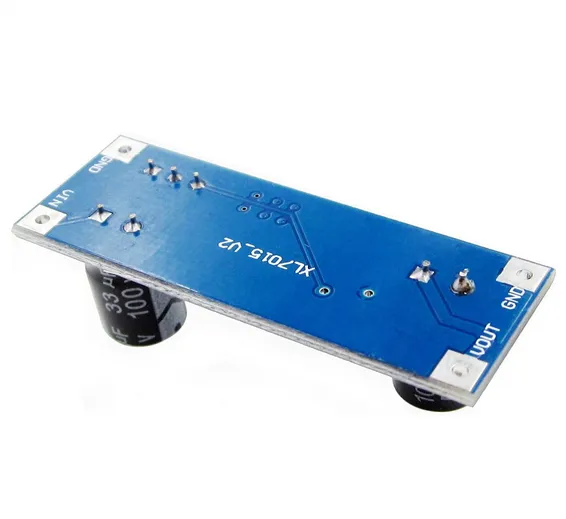

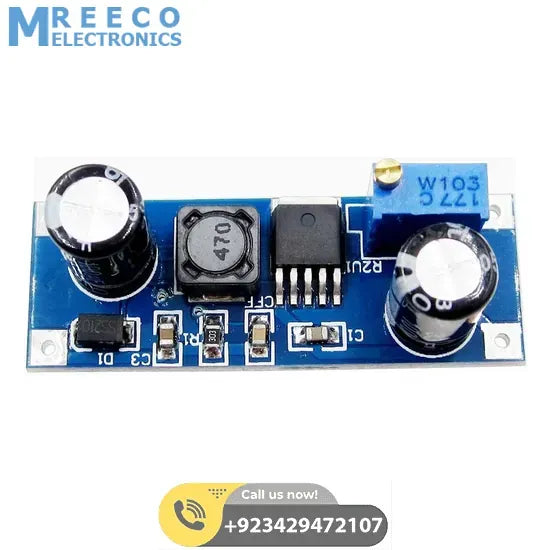

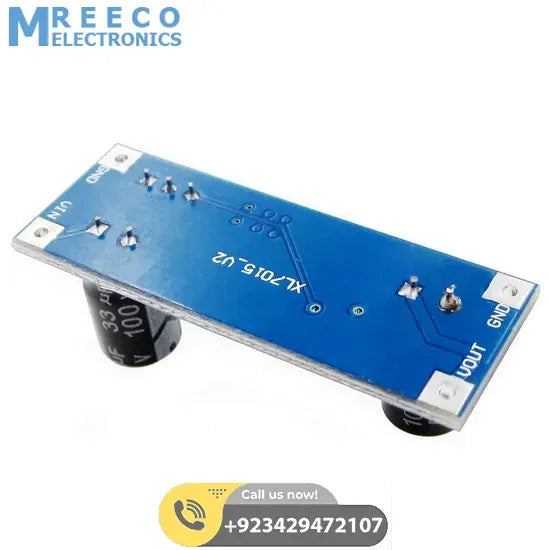

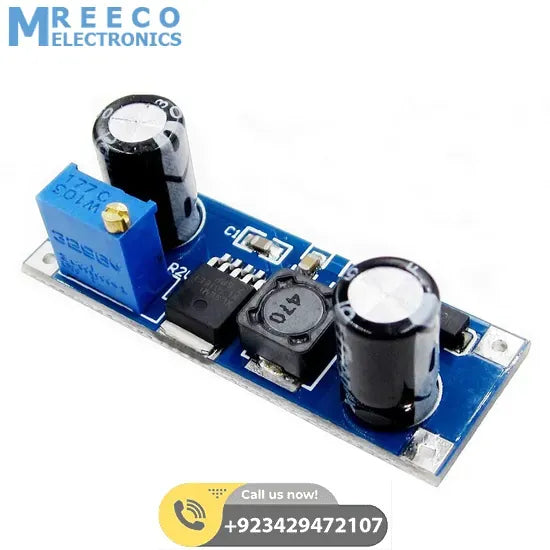

The XL7015 DC-DC step-down module is a high efficiency, high voltage step-down DC-DC converter that provides high 0.8A output current capability, low ripple, excellent linearity, and load regulation, and high input voltage. 80V, far more than 2596 and other modules. The chip has multiple protection mechanisms built in. Can be applied to electric vehicle controllers, etc.

Features:
  1. 5 v to 80 v input voltage range wide.
  2. The output voltage from 5 v to 20 v adjustable.
  3. The minimum pressure drops 1 v.
  4. 0.8 The biggest switch current.
  5. Recommend the output power is less than 7 w.
  6. Shut off built-in overheating protection, output short circuit protection, over current protection.
  7. Good linear with load regulation.
  8. The board size: 16 mm * 44 mm.
Wiring Instructions:
  1. VIN: input voltage (5 v - 80 - v).
  2. The GND: input voltage side.
  3. The VOUT: output voltage (5 v - 20 v).
  4. The GND: output voltage to end.
Package Includes:

1XXL7015 DC-DC Buck Converter Step Down Module 5V-80V Wide Voltage Input 7005A Super Than LM2596
