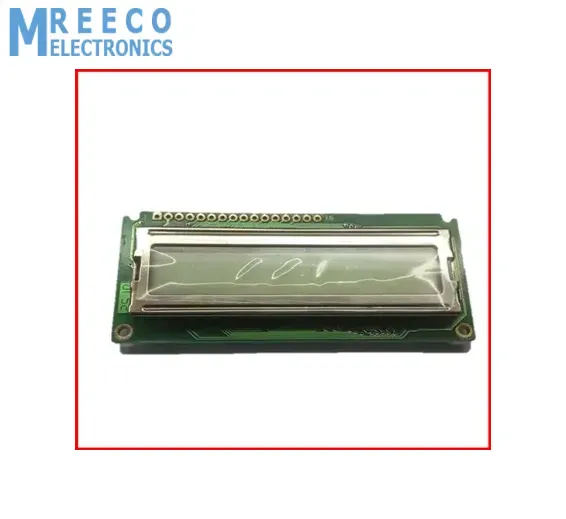

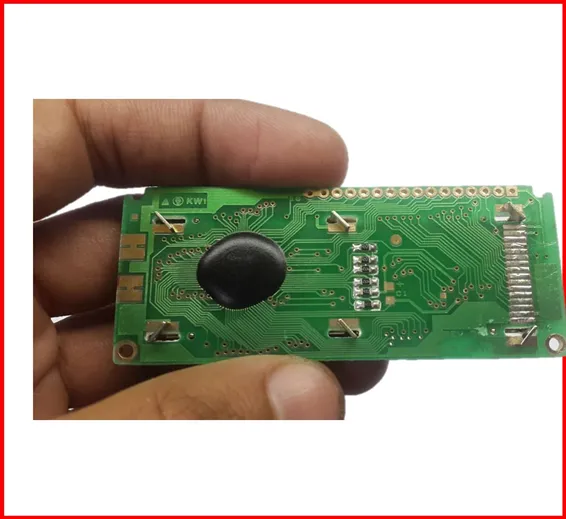

1601 LCD 16X1 LCD 16×1 Character LCD Without Back Light Display

Condition: New
Availability: In Stock
Share:     Faceook Twitter

SKU: 637718993421673963

Rs.60 Rs. 75

1601 LCD 16X1 LCD 16×1 Character LCD Without Back Light Display for Arduino/Raspberry-Pi/Robotics This is a basic 16 character by 1 line display. Black text on Green background. This is based on the most common Hitachi’s HD44780 parallel interface chipset. The HD44780U dot-matrix liquid crystal display controller and driver LSI displays alpha numeric, Japanese kana characters, and symbols.

Features of 16×1 Character LCD Display:

  1. 5 * 8 and 5 *10 dot matrix possible.
  2. Low power operation support:2.7 to 5.5V.
  3. Wide range of liquid crystal display driver power: 3.0 to 11V.
  4. Liquid crystal drive waveform: A (One line frequency AC waveform).
  5. Correspond to high speed MPU bus interface: 2 MHz (when VCC = 5V).
  6. 4-bit or 8-bit MPU interface enabled.
  7. 80 8-bit display RAM (80 characters max.).
  8. 9,920-bit character generator ROM for a total of 240 character fonts.
  9. 208 character fonts (5 X 8 dot).
  10. 32 character fonts (5 X 10 dot).

Applications of 16×1 Character LCD Display:

  1. Password based door locked system.
  2. Moving message display.
  3. GSM based digital notice board.
  4. Electrical/electronic device display unit.
  5. 8051/AVR/ARM/PIC/Arduino/Raspberry-pi based projects.

Package includes:

1x Character LCD
