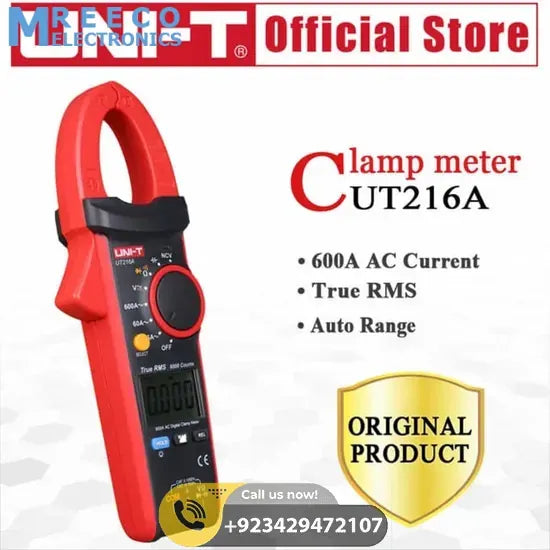

UNI T UT216A True RMS Digital Clamp Meter 600A

Condition: New
Availability: In Stock
Advance Payment Only
Share:     Faceook Twitter

UT216 series digital clamp meters are designed for measuring high frequency currents (up to 400Hz) in server rooms, IT systems, etc. Its double injection design gives users a more comfortable grip and enhanced durability. UT216’s 6000 count display also provides more precise readings for users.

Models in UT216 series: UT216AUT216BUT216CUT216D

SKU: TMD1,Th6,KRT

Ask Price

UT216 series True RMS digital clamp meter is a new-generation practical electrotechnical measurement meter which has the features of high reliability, high safety, automatic range, and handheld type. Handheld Clamp tester UT216A has full-range overload protection and unique appearance design is more excellent in performance.UNI-T ut216a Tong tester is an ideal tool for the detection, maintenance, and repair of various universities and colleges, smelting, communication, manufacturing, petroleum, national defense, electrical, power, and circuit equipment.

Features Of Handheld Modern Auto-range Clamp Multitester UT216A:

  • True RMS Auto Range Digital Clamp Meter
  • It has a Display Count of 6000
  • Auto range, 3 times/s sampling rate
  • MAX/MIN/Relative modes
  • Flashlight
  • 99.99mF capacitance measurement
  • NCV, non-contact AC voltage testing

Specifications Of UNI-T UT216A 600A Digital Clamp Meter AC/DC Current:

Specifications Range UT216A UT216B UT216C UT216D
AC current (A) 600A ±(2.5%+5) ±(2.5%+5) ±(2.5%+5) ±(2.5%+5)
AC current frequency response   50/60Hz 40~400Hz 40~400Hz 40~400Hz
DC current (A) 600A     ±(2.5%+5) ±(2.5%+5)
AC voltage (V) 750V ±(1.2%+5) ±(1.2%+5) ±(1.2%+5) ±(1.2%+5)
AC voltage frequency response   40~400Hz 40~400Hz 40~400Hz 45~400Hz
DC voltage (V) 1000V ±(0.8%+1) ±(0.8%+1) ±(0.8%+1) ±(0.8%+1)
Resistance (Ω) 60MΩ ±(1%+2) ±(1%+2) ±(1%+2) ±(1%+2)
Capacitance (F) 60mF ±(4%+5) ±(4%+5) ±(4%+5) ±(4%+5)
Frequency (Hz) 10Hz~1MHz   ±(0.1%+4) ±(0.1%+4) ±(0.1%+4)
Temperature -40°C~1000°C     ±(2%+5) ±(2.5%+3)
-40°F~1832°F     ±(2%+10) ±(2.5%+6)
Features
Display count   6000 6000 6000 6000
Auto range
Jaw opening   30mm 30mm 30mm 30mm
True RMS
Diode Around 3.0V
V.F.C.
NCV
Data hold
Relative mode
MAX/MIN
LCD backlight
Inrush current
OLED display
Analog bar graph       61 21
Flashlight
Auto power off
Continuity buzzer
Low battery indication ≤3.6V
Input protection
Input impedance for DCV ≥10MΩ
General Characteristics
Power 1.5V battery (R03) x 3
Display 38mm x 24mm
Product color Red and grey
Product net weight UT216A: 280g; UT216B/C/D: 231.7g
Product size 220mm x 75mm x 40mm

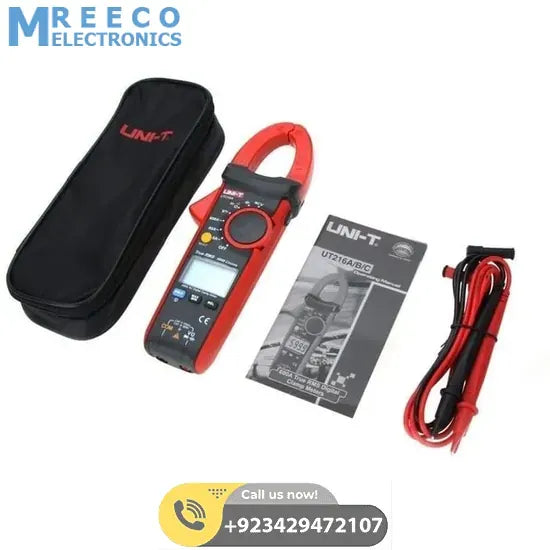

Standard accessories Batteries, test leads, point contact temperature probe (UT216C/UT216D)
Standard individual packing Gift box, carrying bag, English manual
Standard quantity per carton 40pcs
Standard carton measurement 485mm x 345mm x 385mm
Standard carton gross weight UT216A: 20.6kg; UT216B: 19.3kg; UT216C: 20.1kg; UT216D: 20.3kg

Package Include:

  • 1xDigital Clamp Meter 600A UNI T UT216A

Best Online Shopping website for Modern Digital portable Clamp meter 600A UT216A AC/DC Voltmeter Ammeter and Resistance MultiTester in cheap price in Karachi Lahore Islamabad Rawalpindi Sukkur Peshawar Multan Quetta Faisalabad and all over Pakistan
