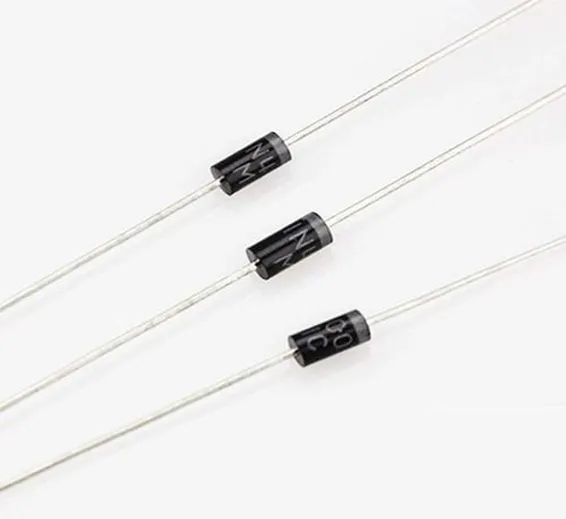

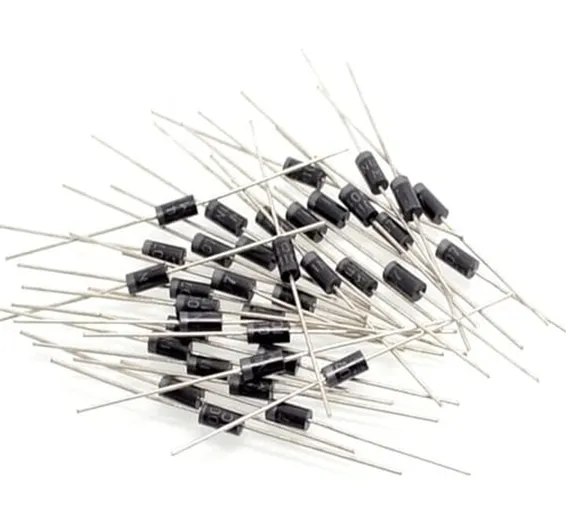

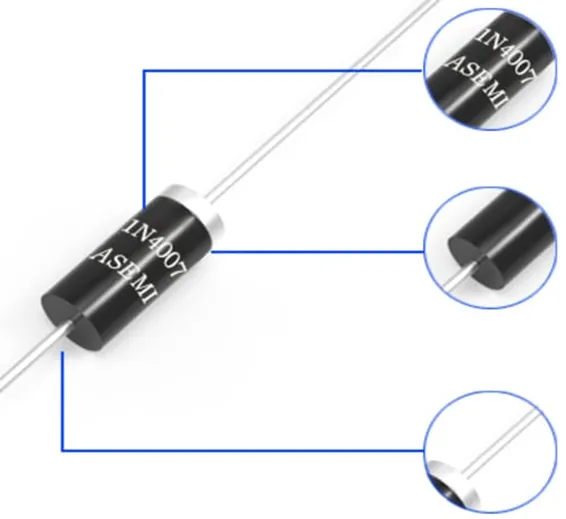

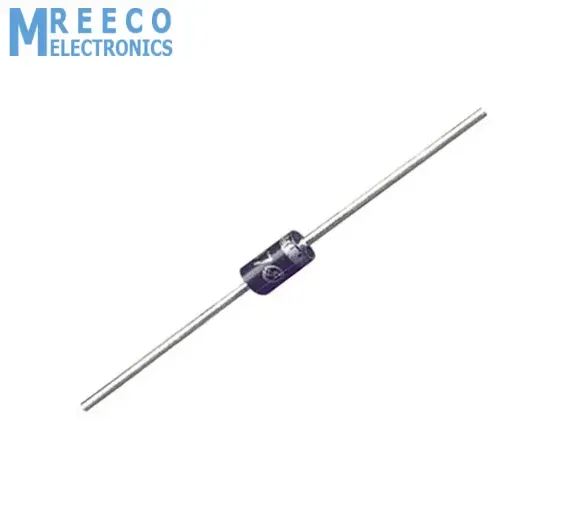

1N4007 Rectifier Diode

Condition: New
Availability: In Stock
Share:     Faceook Twitter

SKU: 637718963656877217

Rs.2 Rs. 3

1N4007 Bridge Rectifier Diode is a general-purpose silicon diode. 1N4007 Bridge Rectifier Diode is a p–n diode which is a type of two-terminal semiconductor diode based upon the p–n junction that conducts current in only one direction, made by joining a p-type semiconducting layer to an n-type semiconducting layer. Typical applications for use in general-purpose rectification of power supplies, inverters, converters and freewheeling diodes application.

We have also a large variety of different rectifiers like 1N5408 1A, uF4007, 10 10A etc.

Features of 1N4007 Bridge Rectifier Diode:

  • Diffused junction.
  • High current capability and low forward voltage drop.
  • Surge overload rating to 30A peak.
  • Low reserve leakage current.
  • Lead-free finish, RoHS compliant.

Specifications of 1N4007 Bridge Rectifier Diode:

Product Category Rectifiers Product Standard Recovery Rectifiers Configuration Single Reverse Voltage 1000V Forward Voltage Drop 1.1V Recovery Time 2000ns Forward Continuous Current 1A Max Surge Current 30A Reverse Current IR: 5uA Mounting Style Through Hole Maximum Operating Temperature +175C Minimum Operating Temperature -65C


  • Half-wave Rectifier.
  • Full Wave Rectifier.
  • Bridge Rectifier.
  • DIY projects requiring voltage rectification.

Package Includes:

1 x 1N4007 Bridge Rectifier Diode
