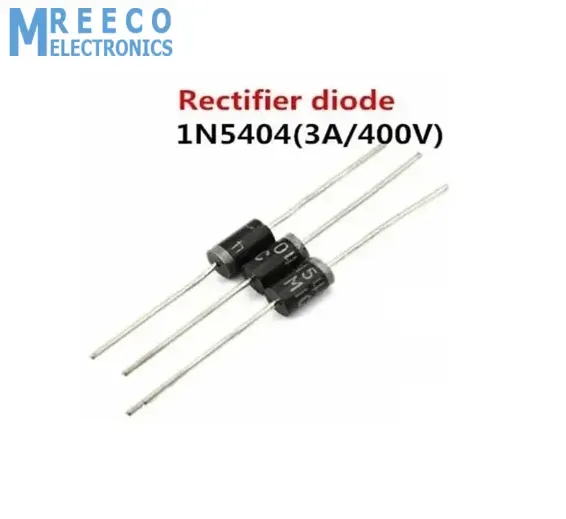

1N5404 General purpose 400V 3A Rectifier Diode

Condition: New
Availability: Out Of Stock
Share:     Faceook Twitter

SKU: 637731184118668646

Rs.5 Rs. 6

Low leakage 1N5401 rectifier diode with a high current capability and low forward voltage drop suitable for general applications.

Features And Specifications Of 1N5404 400V 3A Axial Lead Silicon Rectifier/Diodes:

  • Model Number:1N5404
  • Type:Rectifier Diode
  • IF(Maximum average forward rectified current):3A
  • VR(Maximum repetitive peak reverse voltage):400V
  • IR(Maximum reverse current):100uA
  • Forward Voltage Max, VF: 1.2V
  • Current Rating: 3A
  • 1.2mm diameter leads

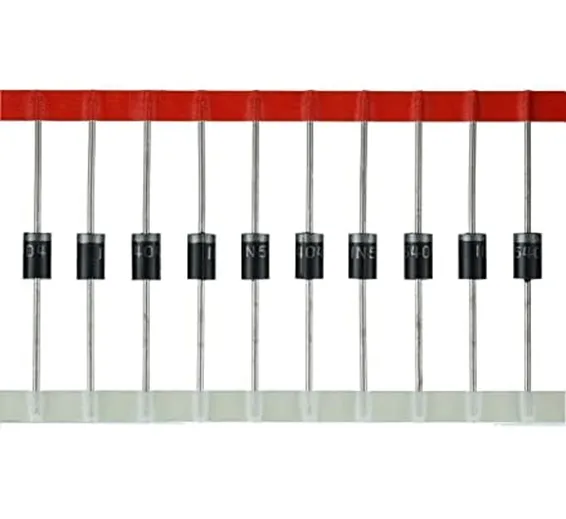

  • Supplied on tape packaging
  • Operating and Storage Temperature : -65°C ~ 150°C

Product Data Sheet Download

Package Include:

  • 1 x 1N5404 Diode
