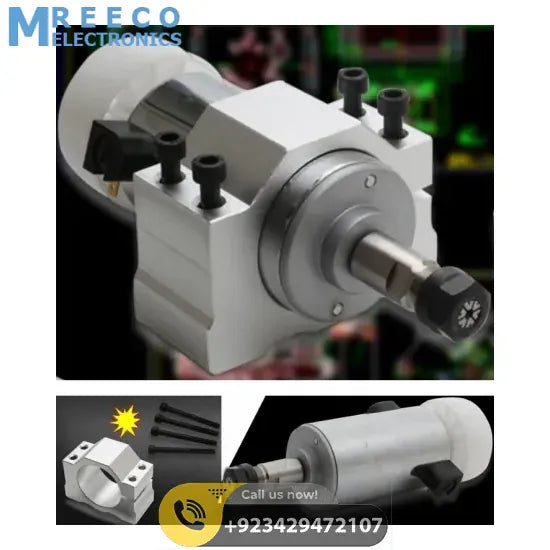

300W Spindle Motor With Mounting Bracket

Condition: New
Availability: Out Of Stock
Share:     Faceook Twitter

SKU: 637739630653467801

Rs.7500 Rs. 9375

This is 300W Air cooled spindle motor with bracket mount and screws for CNC Machines. This is a brand new Spindle motor with four mounting screws fitting. Its 48v operated and you may down the voltage using a dc dimmer to control the speed of this motor.


  • CNC Engraving machines
  • Working voltage: 12-48VDC
  • Power: 300W
  • Current: Maximum current is 6A
  • Speed: 3000-12000r / min (12V-3000 turn, 24V-6000 turn, 36V-9000 turn, 48V-12000 rpm)
  • Torque: 400mN.m
  • Absolute temperature rise: 15 degrees Celsius
  • Insulation resistance: greater than 2 megohms
  • Insulation Dielectric Strength: 400V
  • Diameter: 52mm
  • Chuck part length: Arbor part 35mm, (including nut and sandwich 52mm)
  • Using a wrench: 13/17 wrench
  • Total motor length: 175mm (including clamping parts and motor)
  • Spindle weight: 0.8KG
  • Spindle radial runout of about 0.01mm.
  • Can be used for engraving metal or non-metallic materials.

Package contains

  • 1: 300W spindle motor
  • 2: Motor mount and screws
