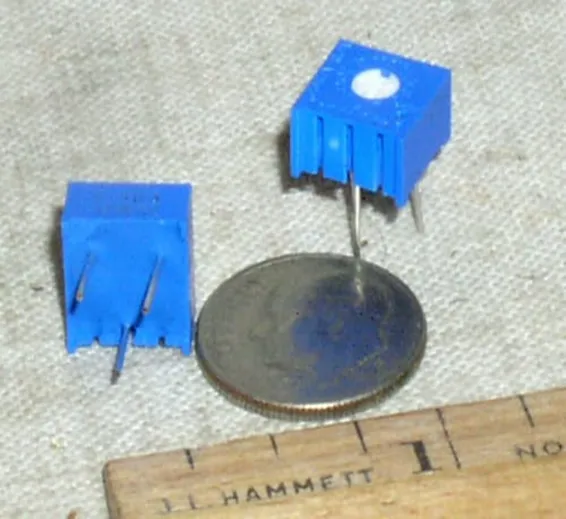

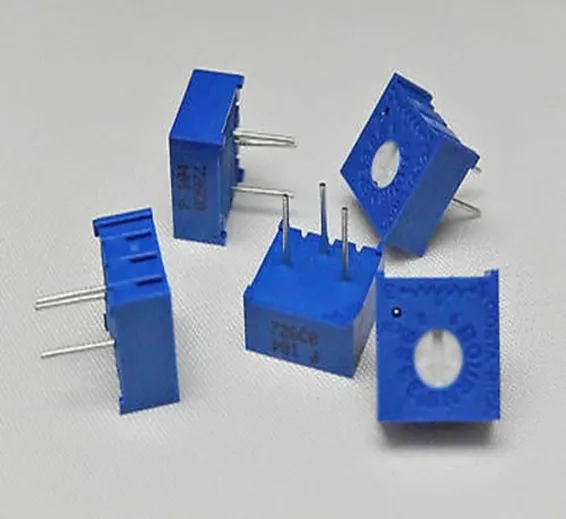

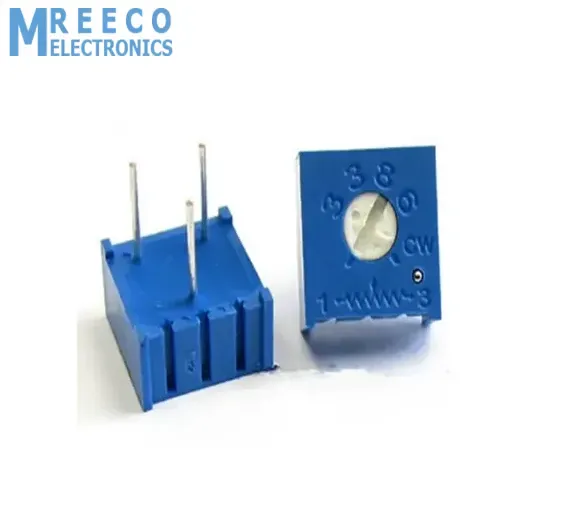

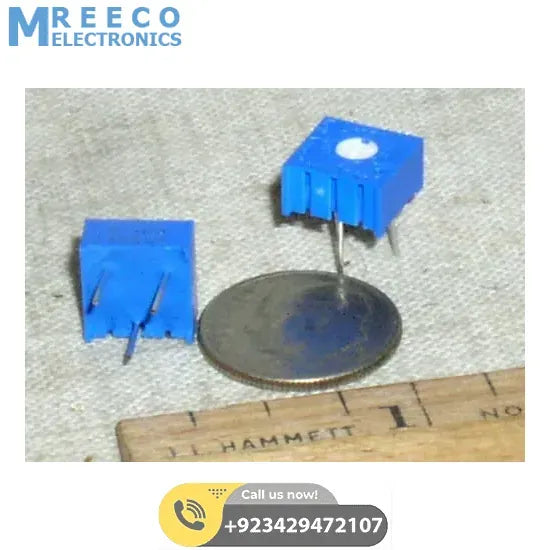

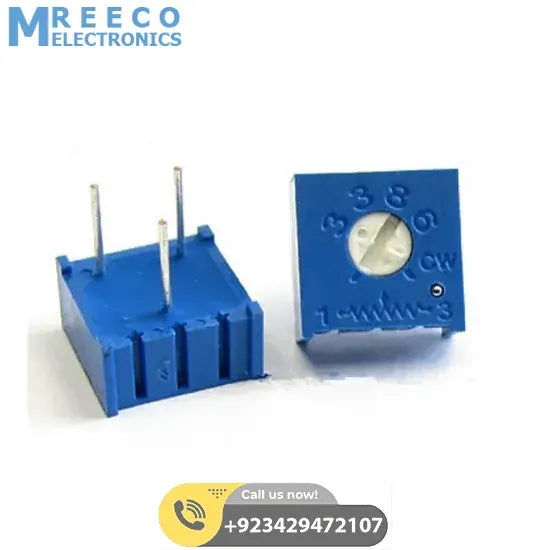

1K 3386 Single Turn Variable Potentiometer

Condition: New
Availability: In Stock
Share:     Faceook Twitter

SKU: 637719008744746260

Rs.30 Rs. 38

3386 Single Turn Variable Potentiometer Trimmer Resistor is a high accuracy variable resistor. Variable Potentiometer Trimmer Resistor, PCB mountable with 3 terminal pins.

  • The voltage between the terminal varies as the trimpot is rotated.
  • The Variable resistors are used for variating voltage as per the need in a circuit.
  • The outer two pins are connected to Vcc and 0V, and centre pin outputs a variable voltage between 0 v and Vcc as the rotary cermet is rotated.
  • Features of 3386 Single Turn Variable Potentiometer Trimmer Resistor:

    1. Trimmer is a high accuracy variable resistor and PCB mountable with 3 terminal pins.
    2. The voltage between the terminal varies as the trimpot is rotated.
    3. The Variable resistors are used for variating voltage as per the need in a circuit.
    4. The outer two pins are connected to Vcc and 0V, and centre pin outputs a variable voltage between 0 v and Vcc as the rotary cermet is rotated.

    Specifications of 3386 Single Turn Variable Potentiometer Trimmer Resistor:

    1. Track Resistance: Select Value
    2. Resistance Tolerance: ± 5%
    3. Temperature Coefficient: ± 50 ppm/°C
    4. Potentiometer Mounting: Through Hole
    5. Adjustment Type: Top
    6. Contact Resistance Variation +: 1%
    7. Full Power Rating Temperature: 85°C
    8. Lead Diameter: 0.5mm
    9. Operating Temperature Range: -55°C to +125°C
    10. Resistance: 1K ohm, 2k ohm,5k ohm, 10k ohm, 20k ohm, 50k ohm, 100k ohm, 500k ohm, 1 Megohm
    11. Resistor Element Material: Variable Rotary Trimmer

    Applications:

    1. Industrial
    2. Consumer Electronics
    3. Portable Devices
    4. Power Management

    Package Includes:

    1 x 3386 Single Turn Variable Potentiometer Trimmer Resistor
