4 Channel Relay Module Relay Board Arduino Relay Module

Condition: New
Availability: Out Of Stock
Share:     Faceook Twitter

SKU: 637720649951429463

Rs.350 Rs. 438

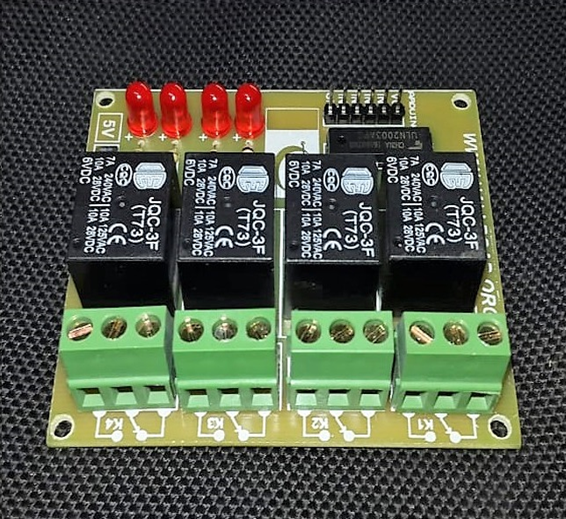

Made in Pakistan 4 Channel Relay Module Relay Board Arduino Relay Module allows a wide range of microcontrollers such as Arduino, AVR, PIC, ARM with digital outputs to control larger loads and devices like AC or DC Motors, electromagnets, solenoids, and incandescent light bulbs. 4–channel relay interface board, and each channel needs a 15-20mA driver current. It can be used to control various appliance.

Specifications:

  1. Active High Input
  2. Active Relay by goving logic hight or 3.3v to 5v.
  3. 5V 4-Channel Relay interface board, and each one needs 15-20mA Driver Current
  4. Equiped Equipped with high-current relay, AC250V 10A ; DC30V 10A
  5. Standard interface that can be controlled directly by microcontroller (Arduino , 8051, AVR, PIC, DSP, ARM, ARM, MSP430, TTL logic active low)
  6. Indication LED’s for Relay output status

What's in the Package:

1x 4-Channel 5V Relay Module
